Article number Select a color, please

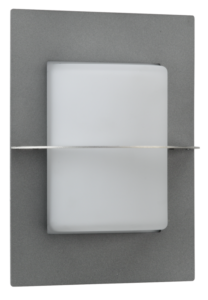

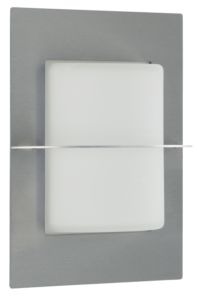

Wall light

type ..6223

189,50232,20

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium, Stainless steel
Colour housing
Anthracite, Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

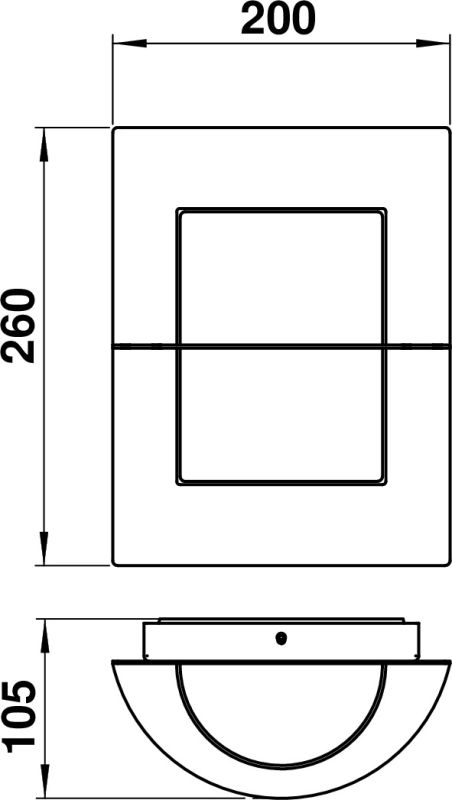

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 626223
Offertext
For: 696223
Full catalog 21 / 22
For: 626223
Full catalog 21 / 22
For: 696223
Spare parts
90210107 - G 107, opal glass show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Type of control gear

Not required

Nominal voltage

230 V

Max. system power

75 W

Material housing

Aluminium, Stainless steel

Lamp holder

E27

Height/depth

260 mm

Material cover

Glass opal

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Protection class

I

Highest energy efficiency class of the exchangeable lamp

A++

Colour housing

Anthracite, Stainless steel

Voltage type

AC

Dimming manufacturer's proprietary system

Yes

Number of poles

3

Suitable for lamp power

1 – 75 W

Power factor

1

Shape

Eckig

Length

105 mm

Style

Bicolor, Edelstahl, Modern

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Conductor cross section

2.5 mm²

Width

200 mm

Dimming depending on control gear

Yes

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Connection type

Screwed terminal

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of wiring

Ending

Height

< 700 mm

Surface protection housing

Untreated

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
