Article number Select a color, please

Wall light

type ..0673

149,80172,60

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass structured
Documents and files
Assembly instruction

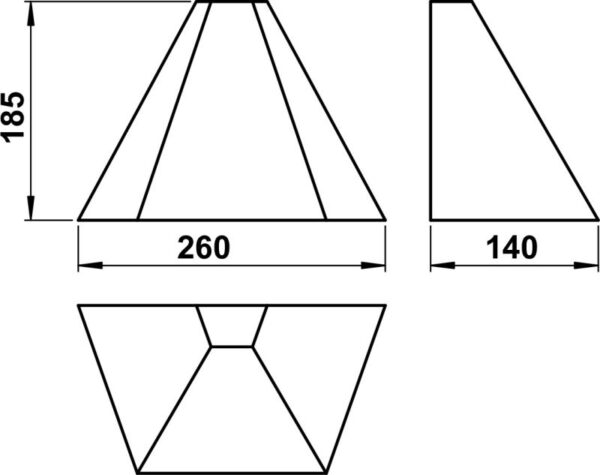

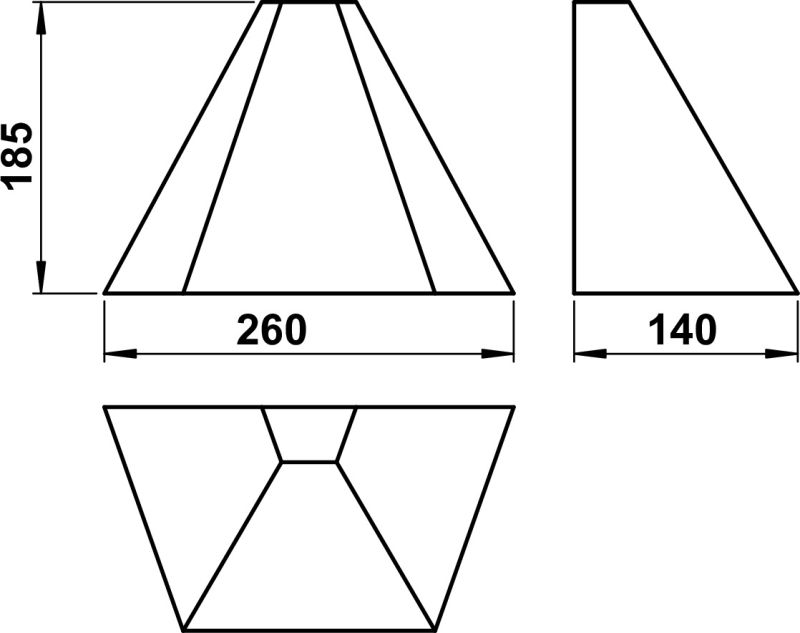

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 660673
Offertext
For: 680673
Offertext
For: 690673
Full catalog 21 / 22
Spare parts
90220110 - G 110, ESG glass fine structure show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Voltage type

AC

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Light sharing

Symmetric

Power factor

1

Lamp holder

E27

Material housing

Aluminium

Colour housing

Black, Silver, White

Type of control gear

Not required

Nominal voltage

230 V

Protection class

I

Dimming manufacturer's proprietary system

Yes

Material cover

Glass structured

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Lowest energy efficiency class of the exchangeable lamp

E

Dimming depending on control gear

Yes

No dim function

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Width

260 mm

Degree of protection (IP)

IP44

Highest energy efficiency class of the exchangeable lamp

A++

Height/depth

185 mm

Suitable for lamp power

1 – 75 W

Max. system power

75 W

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Height

< 700 mm

Length

140 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Style

Modern

Surface protection housing

Lacquered

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
