House number light
This product is no longer in our assortment.
You can find a successor of this product listed below.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. 19% VAT

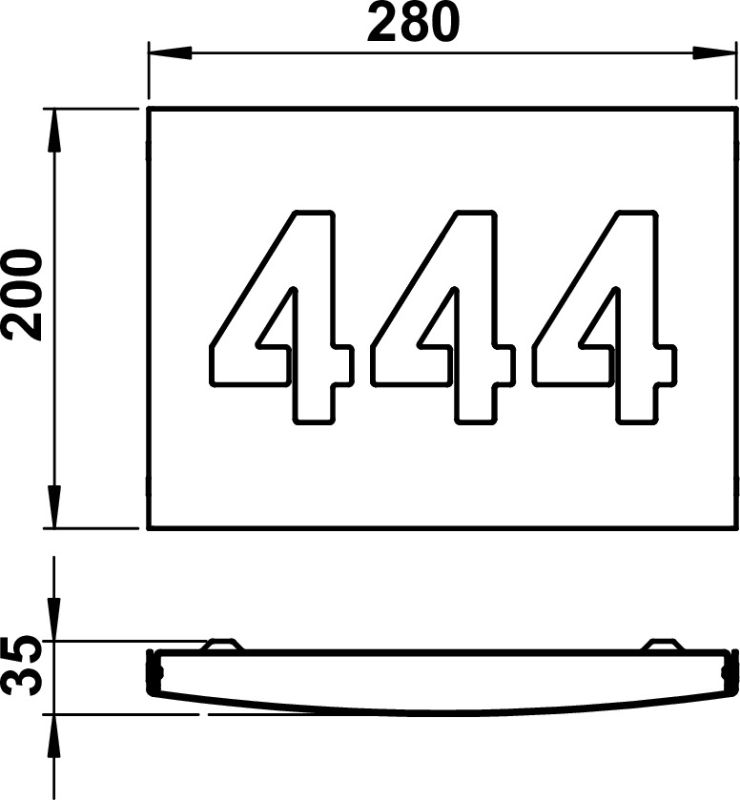

Albert house number light 696009 – 3-digit – with lasered house number according to customer specification, made of stainless steel with opal backlit field. Equipped with LED-unit 1,5 Watt protection class IP 44 – protection class : 280 x 200 x 35 mm
| Weight | 1,60 kg |
|---|---|
| Surface protection housing | Untreated |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Suitable for wall mounting | Yes |
| Height | < 700 mm |
| Colour of light | White |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Exchangeable control gear | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Light outlet | Direct |
| Beam angle | Open beam/diffuse |
| Light sharing | Symmetric |
| Dimming depending on control gear | Yes |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Photobiological safety according to EN 62471 | RG1 |
| Number of poles | 3 |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Power factor | 0.9 |
| Type of wiring | Ending |
| Length | 35 mm |
| Suitable for surface mounting | Yes |
| Height/depth | 200 mm |
| Width | 280 mm |
| Colour rendering index CRI | 80-89 |
| Type of control gear | LED operating device voltage-controlled |
| Max. system power | 1.5 W |
| Mounting method | Wand |
| No dim function | Yes |
| Light outlet | 1-seitig |
| Shape | Eckig |
| 696013 - House number light type ..6013 | show |
Additional information
| Weight | 1,60 kg |
|---|---|
| Surface protection housing | Untreated |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Suitable for wall mounting | Yes |
| Height | < 700 mm |
| Colour of light | White |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Exchangeable control gear | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Light outlet | Direct |
| Beam angle | Open beam/diffuse |
| Light sharing | Symmetric |
| Dimming depending on control gear | Yes |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Photobiological safety according to EN 62471 | RG1 |
| Number of poles | 3 |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Power factor | 0.9 |
| Type of wiring | Ending |
| Length | 35 mm |
| Suitable for surface mounting | Yes |
| Height/depth | 200 mm |
| Width | 280 mm |
| Colour rendering index CRI | 80-89 |
| Type of control gear | LED operating device voltage-controlled |
| Max. system power | 1.5 W |
| Mounting method | Wand |
| No dim function | Yes |
| Light outlet | 1-seitig |
| Shape | Eckig |
