Article number 696007

House number light

type ..6007

310,60

Description

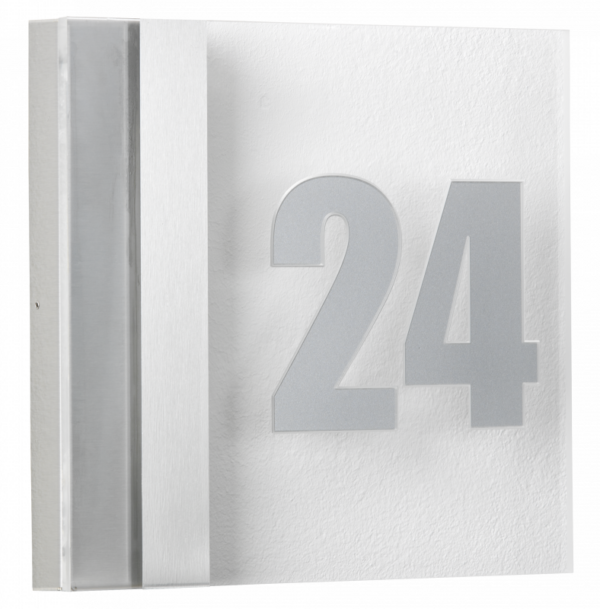

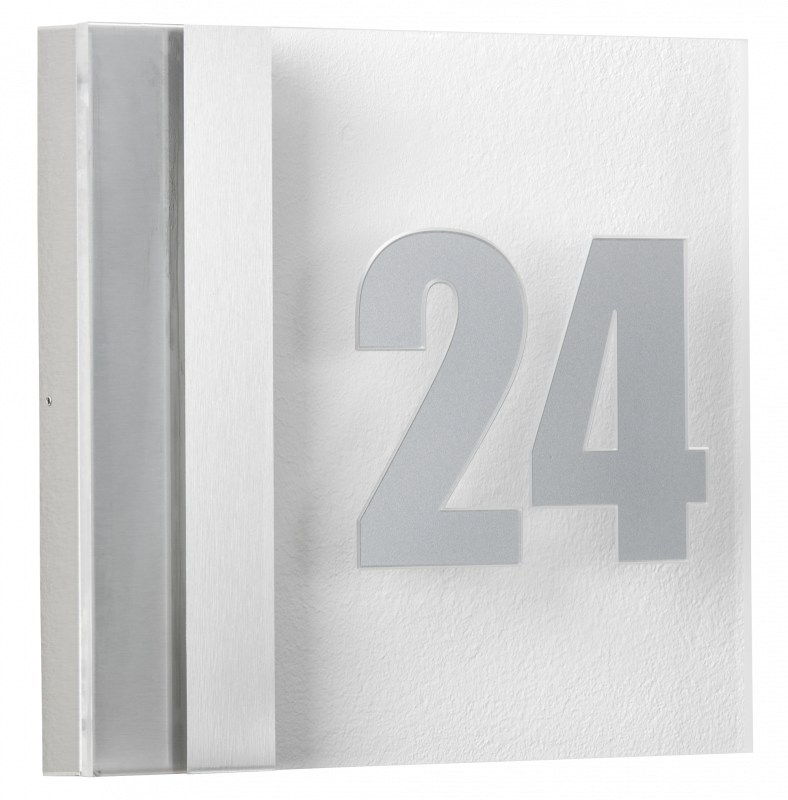

Albert house number light with twilight switch 696007
made of stainless steel with clear acrylic glass1 x LED 1,0W, light colour white 4000 IP 44 – protection class : 250 x 250 x 45 mm

Features
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
1 W
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

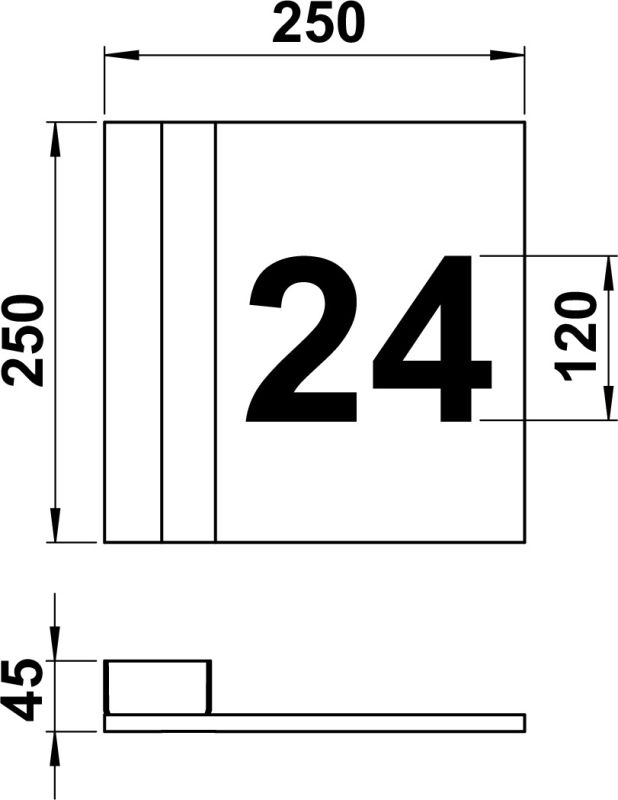

Dimensioned drawing
Full catalog 21 / 22

Additional information

Weight 1,94 kg
Power factor

0.9

With light source

Yes

Material cover

Glass opal

Suitable for surface mounting

Yes

Voltage type

AC

Lamp type

LED exchangeable

Suitable for lamp power

1 W

Material housing

Stainless steel

Colour of light

White

Colour housing

Stainless steel

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Protection class

I

With control gear

Yes

Colour temperature

3000 K

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP44

Suitable for number of lamps

1

Number of poles

3

Length

45 mm

Max. system power

1 W

Unified Glare Ratio (UGR)

1

No dim function

Yes

Colour rendering index CRI

80-89

Width

250 mm

Photobiological safety according to EN 62471

RG1

Colour consistency (McAdam ellipse)

SDCM3

Conductor cross section

2.5 mm²

Suitable for wall mounting

Yes

Dimming depending on control gear

Yes

Light output

1-seitig

Style

Edelstahl, Modern

Height

< 700 mm

Height/depth

250 mm

Surface protection housing

Lacquered

Exchangeable control gear

Yes

Type of wiring

Ending

With light sensor

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Connection type

Screwed terminal

Mounting Type

Wand

Shape

Eckig
