Article number 696002

House number light

type ..6002

270,80

Description

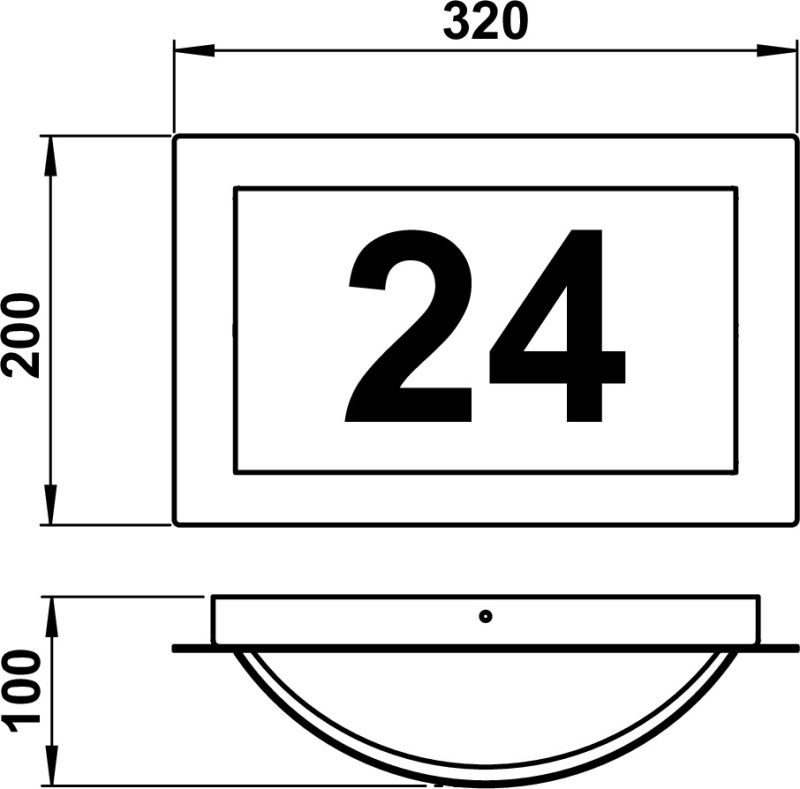

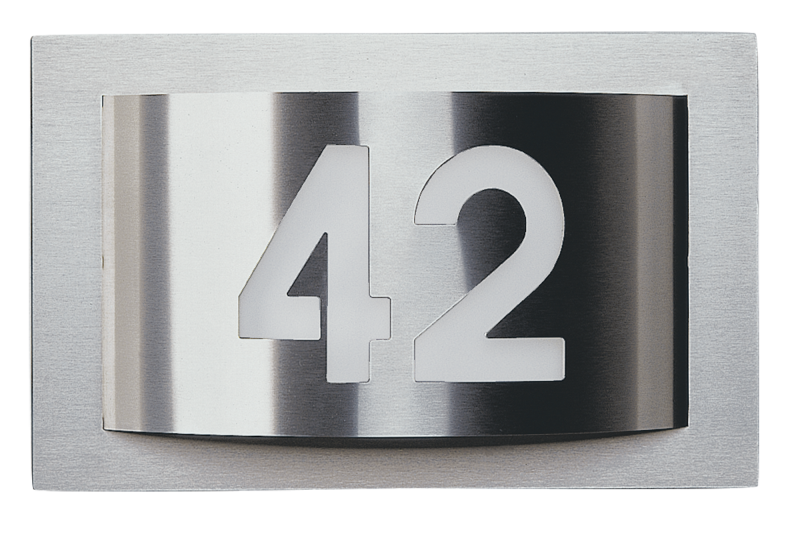

Albert wall light 696002 with lasered house number according to customer specification, max. 3 digits, made of stainless steel with opal glass, mounting plate made of cast aluminium. Equipped for 1 x fluorescent lamp TC-SEL 5-7W, socket 2G7.protection class IP 44 – protection class : 320 x 200 x 100 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Spare parts
90210154 - G 154, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight 3,14 kg
Protection class

I

Length

100 mm

Dimming manufacturer's proprietary system

Yes

Nominal voltage

230 V

Colour housing

Stainless steel

Height/depth

200 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Dimming phase cut-on

Yes

Dimming phase cut-off

Yes

Dimming depending on control gear

Yes

Voltage type

AC

Material cover

Glass opal

Lamp holder

E27

Material housing

Stainless steel

Suitable for number of lamps

1

Style

Edelstahl, Modern, Stainless Steel

Power factor

1

Mounting Type

Wand

Max. system power

75 W

No dim function

Yes

Width

320 mm

Suitable for surface mounting

Yes

Beam angle

Open beam/diffuse

Photobiological safety according to EN 62471

RG1

Light output

1-seitig

Unified Glare Ratio (UGR)

1

Highest energy efficiency class of the exchangeable lamp

A++

Height

< 700 mm

Conductor cross section

2.5 mm²

Number of poles

3

Degree of protection (IP)

IP44

Type of control gear

Not required

Type of wiring

Ending

Light sharing

Symmetric

Suitable for wall mounting

Yes

Connection type

Screwed terminal

Lowest energy efficiency class of the exchangeable lamp

E

Surface protection housing

Untreated

Suitable for lamp power

1 – 75 W

Light output

Direct

Shape

Angular, Eckig
