Article number 696009

House number light

type ..6009

This product is no longer in our assortment.
You can find a successor of this product listed below.

Nicht lieferbar

Description

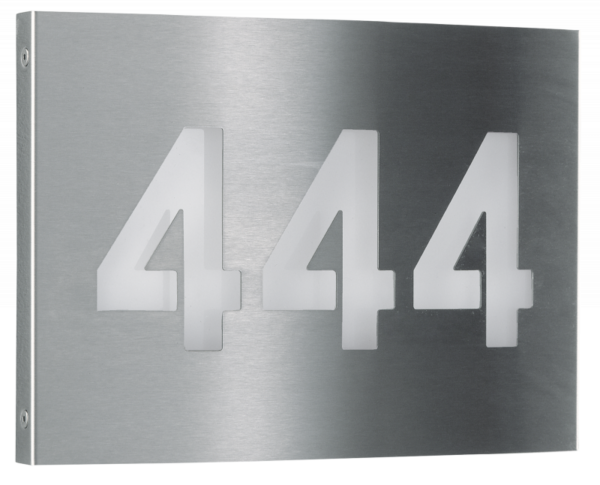

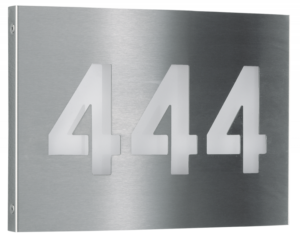

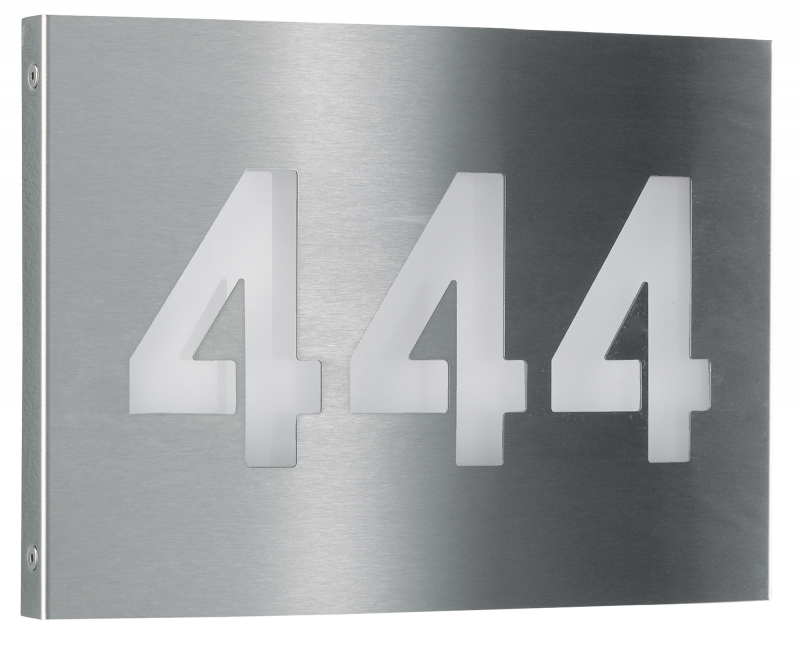

Albert house number light 696009 – 3-digit – with lasered house number according to customer specification, made of stainless steel with opal backlit field. Equipped with LED-unit 1,5 Watt protection class IP 44 – protection class : 280 x 200 x 35 mm

Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
LED components can be replaced by Albert luminaires.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
1.5 W
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

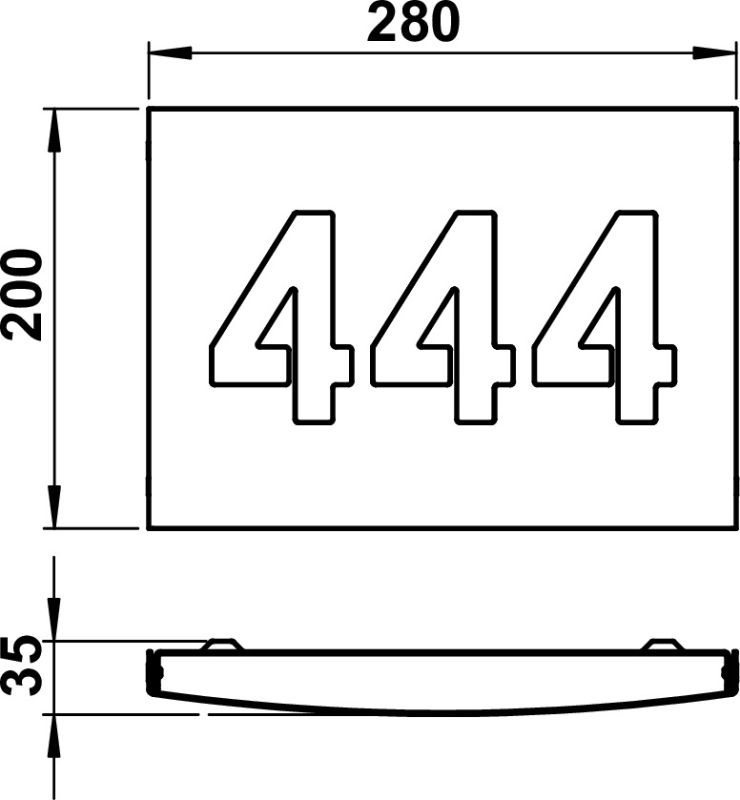

Dimensioned drawing
Full catalog 21 / 22
Successor
696013 - House number light type ..6013 show

Additional information

Weight 1.60 kg
Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Material housing

Stainless steel

Colour housing

Stainless steel

Material cover

Glass opal

Voltage type

AC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Control gear included

Yes

Light output

1-seitig

Dimming depending on control gear

Yes

Suitable for lamp power

1.5 W

Max. system power

1.5 W

Colour temperature

3000 K

Colour rendering index CRI

80-89

Power factor

0.9

Width

280 mm

Height/depth

200 mm

Length

35 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Rated life time L80/B50 at 25 °C

50000 h

Shape

Eckig

No dim function

Yes

Mounting Type

Wand

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

A+

Degree of protection (IP)

IP44

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Colour of light

White

Height

< 700 mm
