Data sheet
Article number
Select a color, please
House number light
type ..6219
There is a successor for this product, which you will find listed below.
€120,50 – €138,50
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing

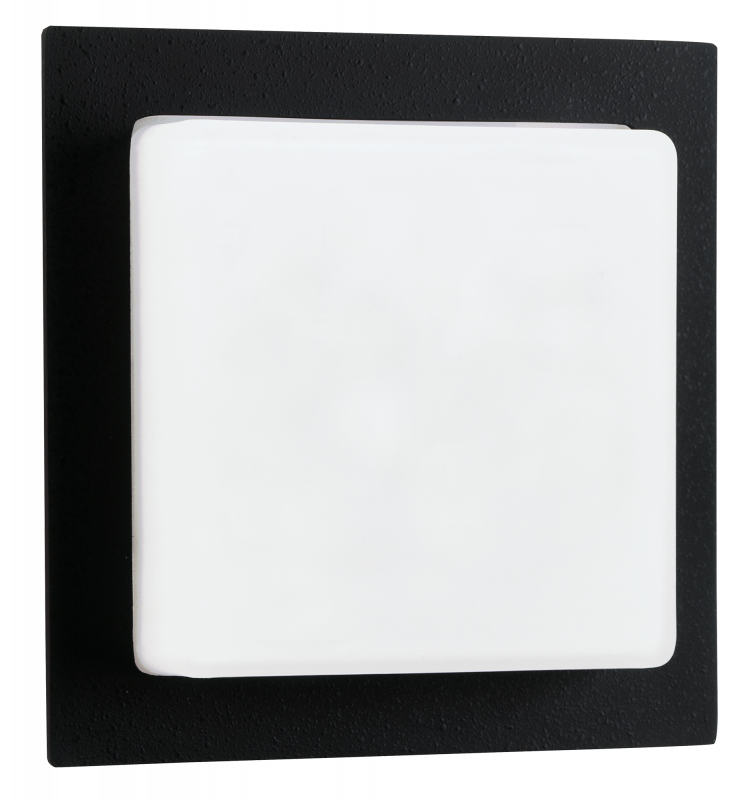

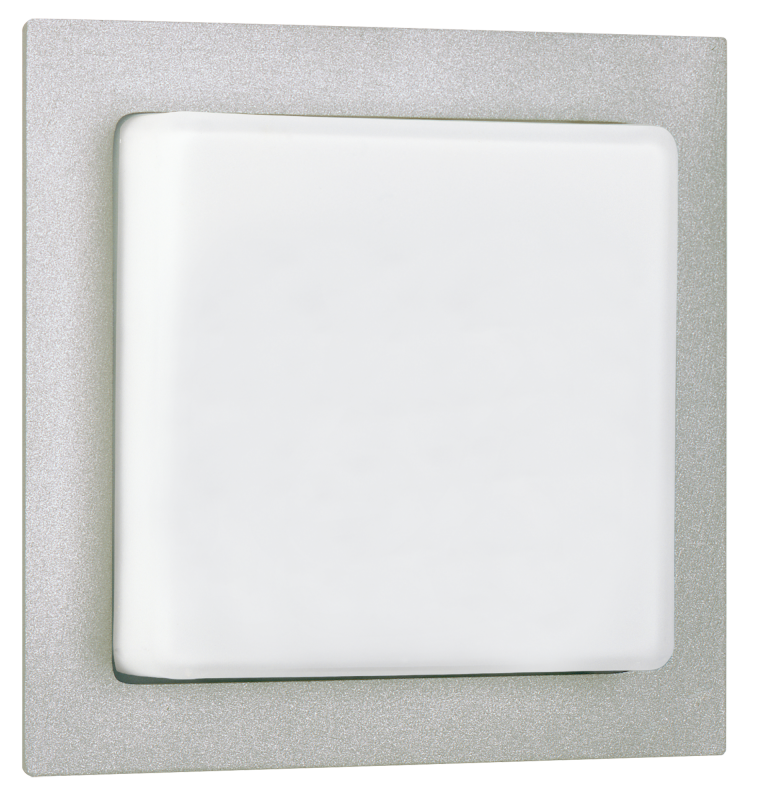

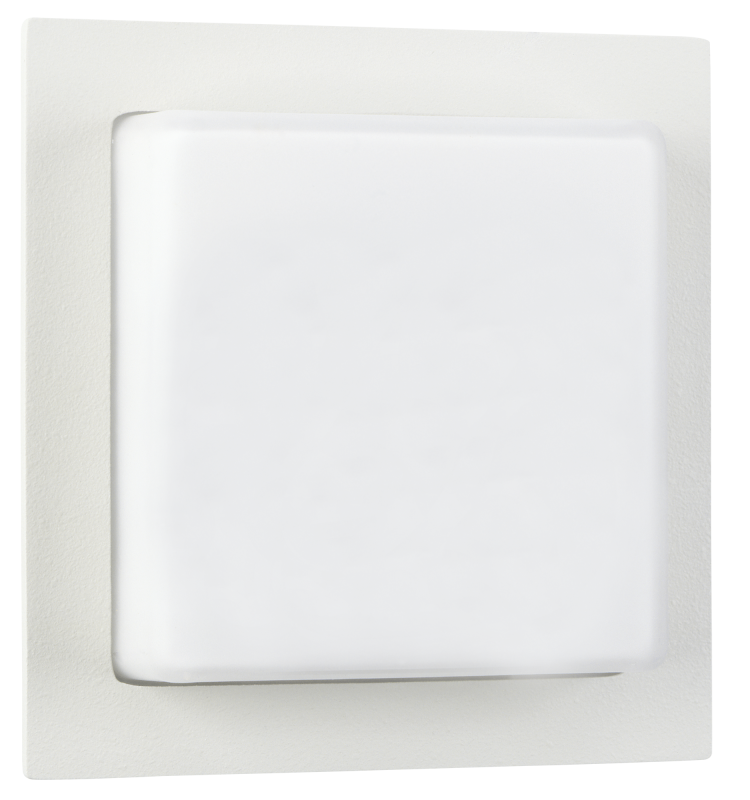

Black, Silver, White
Lamp type
Compact fluorescent lamp
Lamp holder
G23
Suitable for lamp power
7 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Height | < 700 mm |
| Mounting method | Wand |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |

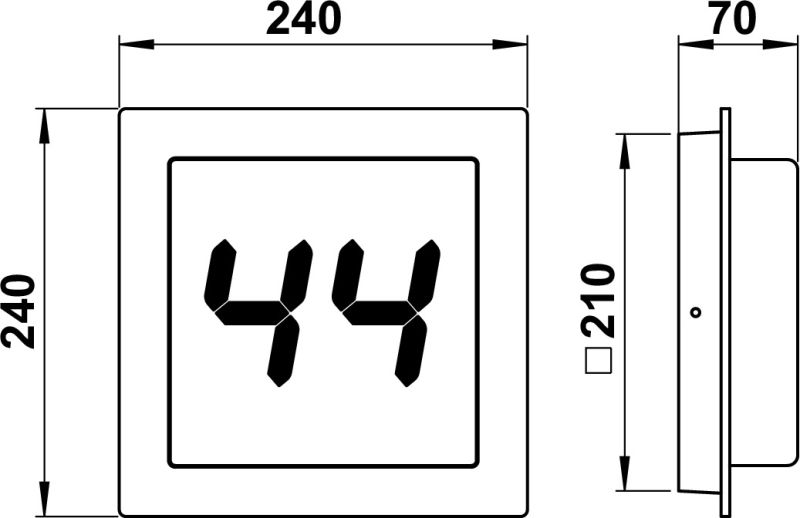

| Length | 70 mm |
| Height/depth | 240 mm |
| Width | 240 mm |
| Power factor | 1 |
| Max. system power | 7 W |
| Light outlet | 1-seitig |
| Type of wiring | Ending |
| Surface protection housing | Lacquered |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Exchangeable control gear | Yes |
| No dim function | Yes |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| With control gear | Yes |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Suitable for number of lamps | 1 |
| Type of control gear | Low-loss ballast inductive |
| Degree of protection (IP) | IP44 |
| Light outlet | Direct |
| Beam angle | Open beam/diffuse |
| Light sharing | Symmetric |
| Dimming depending on control gear | Yes |
| Suitable for surface mounting | Yes |
| Shape | Eckig |
Documents and files
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Height | < 700 mm |
| Mounting method | Wand |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Length | 70 mm |
| Height/depth | 240 mm |
| Width | 240 mm |
| Power factor | 1 |
| Max. system power | 7 W |
| Light outlet | 1-seitig |
| Type of wiring | Ending |
| Surface protection housing | Lacquered |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Exchangeable control gear | Yes |
| No dim function | Yes |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| With control gear | Yes |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Suitable for number of lamps | 1 |
| Type of control gear | Low-loss ballast inductive |
| Degree of protection (IP) | IP44 |
| Light outlet | Direct |
| Beam angle | Open beam/diffuse |
| Light sharing | Symmetric |
| Dimming depending on control gear | Yes |
| Suitable for surface mounting | Yes |
| Shape | Eckig |
