Data sheet

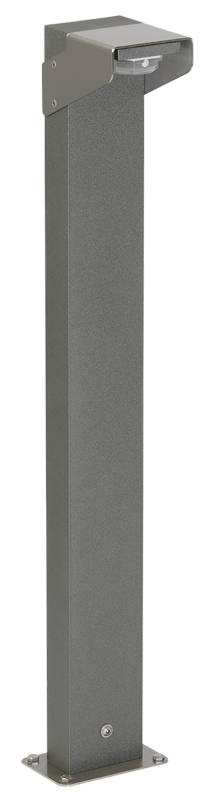

Bollard light Anthracite Product Image Article 623076

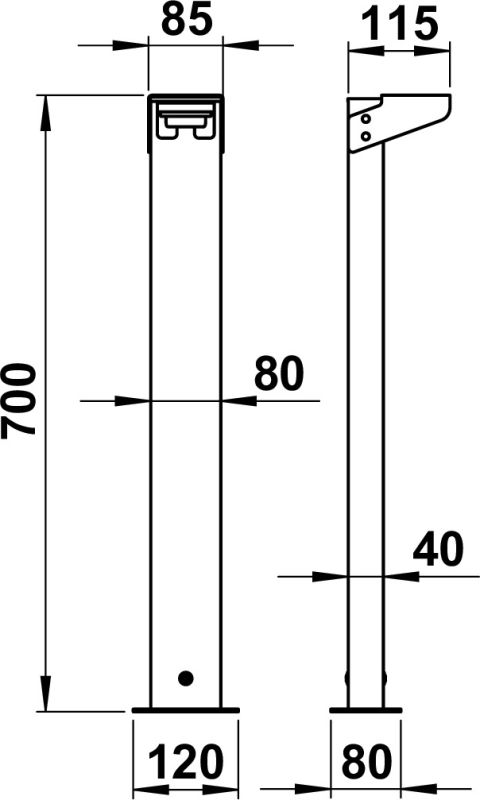

Bollard light Anthracite Dimensioned drawing Article 623076
Bollard light Anthracite Product Image Article 623076
Bollard light Anthracite Dimensioned drawing Article 623076
Article number 623076

Bollard light

type ..3076

€356,70

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert bollard light no.: 623076
made of cast aluminium and stainless steel with acrylic glass equipped with 1 x LED 6 Watt – 650 lm – 3000 K integrated converter and mounting plate for mounting on a foundation or the ground 690010 colour: anthracite dimensions: 85 mm x 700 mm x 115

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
6 W
Rated luminous flux according to IEC 62722-2-1
630 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction
download PDF 119.3 KB
Dimensioned drawing
download PDF 13.13 KB
Light distribution curve - Eulumdat/LDT
download LDT 2.01 KB
Full catalog 21 / 22
download PDF 38.74 MB
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight 1,87 kg
Rated luminous flux according to IEC 62722-2-1

630 lm
Suitable for lamp power

6 W
Material cover

Plastic, opal
Voltage type

AC
Max. system power

6 W
Nominal voltage

230 V
With control gear

Yes
Exchangeable control gear

Yes
Energy efficiency class of the provided exchangeable built-in lamp

E
Highest energy efficiency class of the exchangeable lamp

A+
Lowest energy efficiency class of the exchangeable lamp

E
Degree of protection (IP)

IP44
Protection class

I
Length

115 mm
Type of control gear

LED operating device voltage-controlled
Lamp type

LED exchangeable
With light source

Yes
Suitable for number of lamps

1
Material housing

Aluminium
Surface protection

Lacquered
Colour housing

Anthracite
With base plate

Yes
Light type

Standleuchte
Width

75 mm
Height/depth

700 mm
Light sharing

Asymmetric
Type of wiring

Suitable for through wiring
Number of poles

3
Conductor cross section

2.5 mm²
Height

< 700 mm, 700 – 1000 mm
Max. number of luminaires per miniature circuit breaker B16

20
Max. number of luminaires per miniature circuit breaker C16

30
Connection type

Screwed terminal
Beam angle

Open beam/diffuse
Power factor

0.9
Type of luminaire

Bollard luminaire
Colour of light

White
Colour temperature

3000 K
Light output

Indirect
Colour rendering index CRI

80-89
Flickering value Pst LM

1
Stroboscope effect value SVM

0.4
Shape

Eckig
