Article number Select a color, please

Bollard light

type ..2252

376,00432,30

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

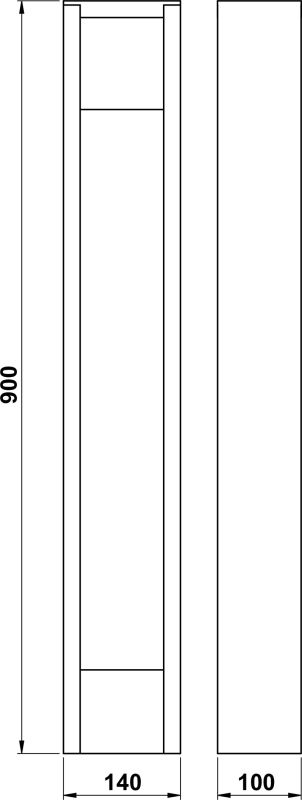

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext

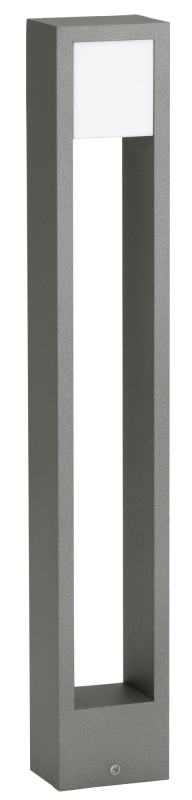

For: 622252
Offertext

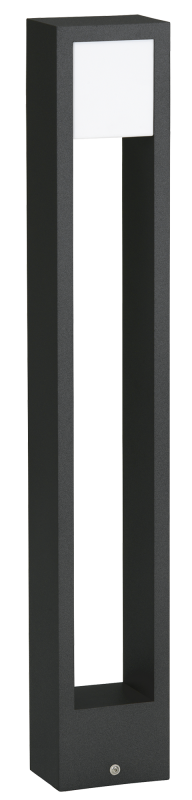

For: 662252
Offertext

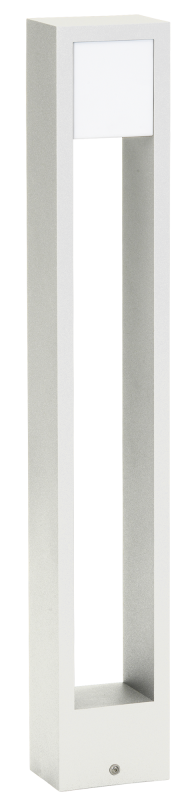

For: 682252
Offertext

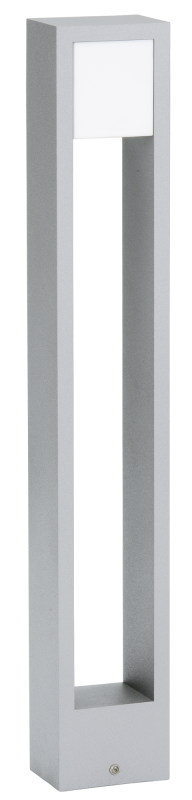

For: 692252
Full catalog 21 / 22
Spare parts
90260088 - G 88, PMMA square tube opal L = 112 mm show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Type of wiring

Suitable for through wiring

Exchangeable control gear

Yes

Energy efficiency class of the provided exchangeable built-in lamp

E

Material housing

Aluminium

Suitable for lamp power

10 W

Colour of light

White

Colour housing

Anthracite, Black, Silver, White

Surface protection

Lacquered

With base plate

Yes

Material cover

Plastic, opal

Suitable for number of lamps

1

Degree of protection (IP)

IP54

Protection class

I

Lamp type

LED exchangeable

Colour rendering index CRI

80-89

Light type

Standleuchte

Conductor cross section

2.5 mm²

Lowest energy efficiency class of the exchangeable lamp

E

Voltage type

AC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

With light source

Yes

With control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A+

Length

100 mm

Light output

Direct/indirect

Light sharing

Double asymmetric

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Light output

2-seitig

Max. number of luminaires per miniature circuit breaker C16

30

Max. system power

10 W

Colour temperature

3000 K

Rated luminous flux according to IEC 62722-2-1

900 lm

Number of poles

3

Connection type

Screwed terminal

Width

140 mm

Height/depth

900 mm

Height

700 – 1000 mm

Style

Modern

Power factor

0.9

Shape

Eckig
