Data sheet
Article number
Select a color, please

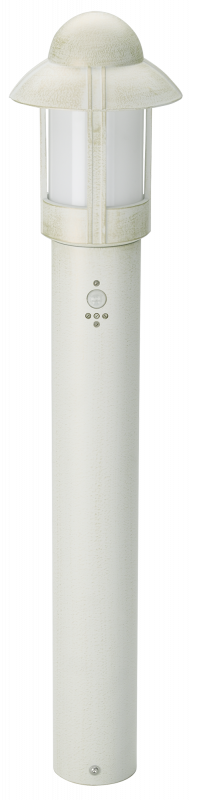

Bollard light
type ..2075
€647,80
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
With movement sensor
Yes
With light sensor
Yes
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

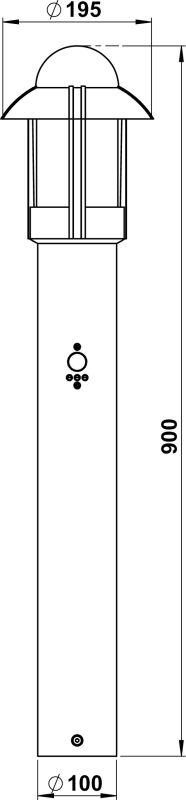

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 602075
Offertext
For: 652075
Offertext
For: 672075
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| Type of wiring | Suitable for through wiring |
| With base plate | Yes |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Material cover | Glass opal |
| Colour housing | Black-Silver, Brown-Brass, White-Gold |
| Height/depth | 900 mm |
| Lamp holder | E27 |
| Suitable for number of lamps | 1 |
| Width | 100 mm |
| With movement sensor | Yes |
| With light sensor | Yes |
| Material housing | Aluminium |
| Surface protection | Lacquered |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Coverage | 90 ° |
| Max. system power | 75 W |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Diameter | 195 mm |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lamp type | Incandescent lamp |
| Light sharing | Symmetric |
| Light output | Direct/indirect |
| Connection type | Screwed terminal |
| Suitable for lamp power | 1 – 75 W |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Light type | Standleuchte |
| Height | 700 – 1000 mm |
| Power factor | 1 |
| Beam angle | Open beam/diffuse |
| Light output | 2-seitig |
| Style | Landhaus |
| Shape | Eckig |
