Article number Select a color, please

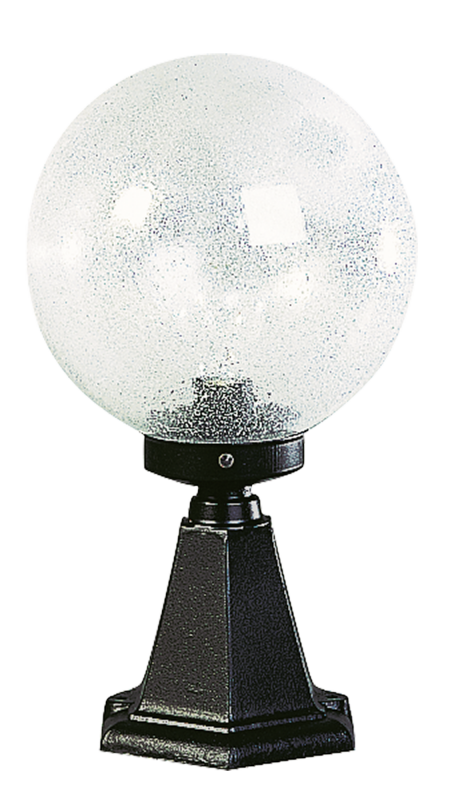

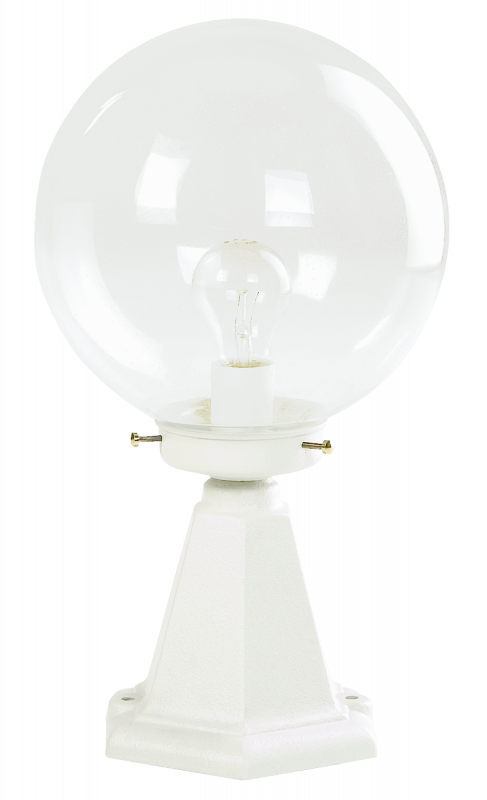

Base luminaire

type ..0501

172,00

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
Weight N/A
Type of luminaire

Pedestal luminaire

Nominal voltage

230 V

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Protection class

I

Suitable for number of lamps

1

Surface protection

Lacquered

Voltage type

AC

With base plate

Yes

Type of control gear

Not required

Max. system power

75 W

Number of poles

3

Height/depth

435 mm

Light output

2-seitig

Shape

Eckig

Type of wiring

Suitable for through wiring

Diameter

250 mm

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Height

< 700 mm

Light sharing

Symmetric

Light output

Direct/indirect

Power factor

1

Beam angle

Open beam/diffuse

Style

Modern

Documents and files
Data sheet
Assembly instruction
PDF | 30 KB

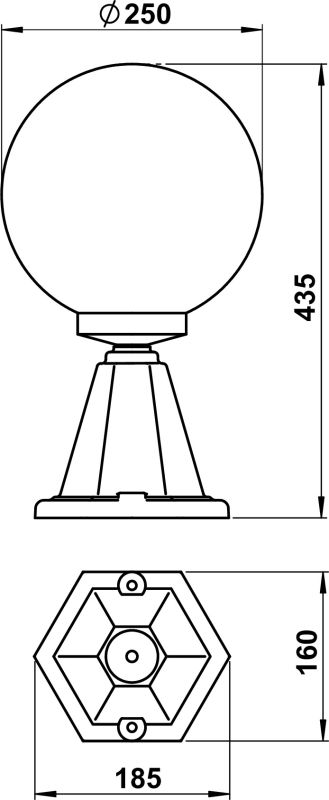

Dimensioned drawing
PDF | 25 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Offertext
For: 660501
TXT | 310 B
Offertext
For: 680501
TXT | 306 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210095 - G 95, bubble glass sphere, clear show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
