Article number Select a color, please

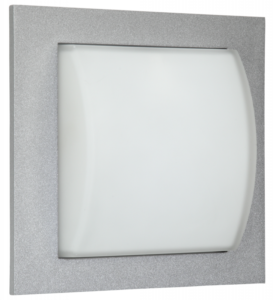

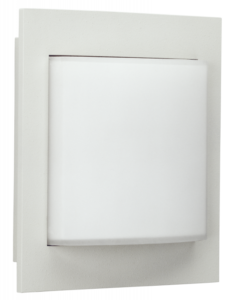

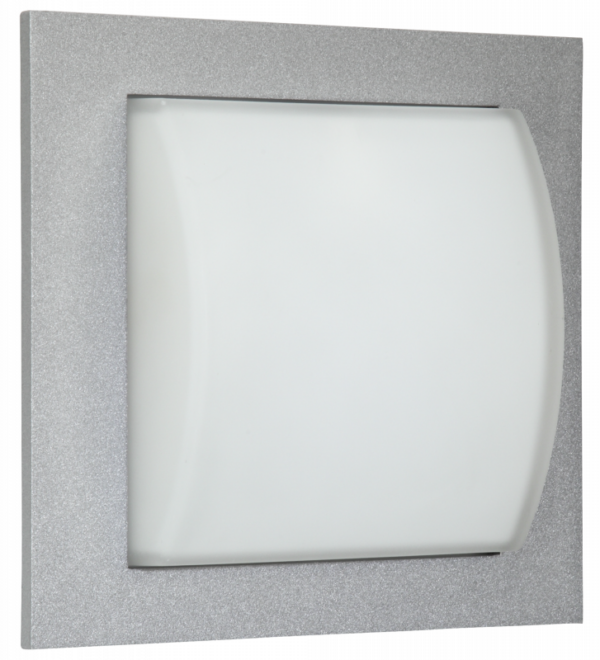

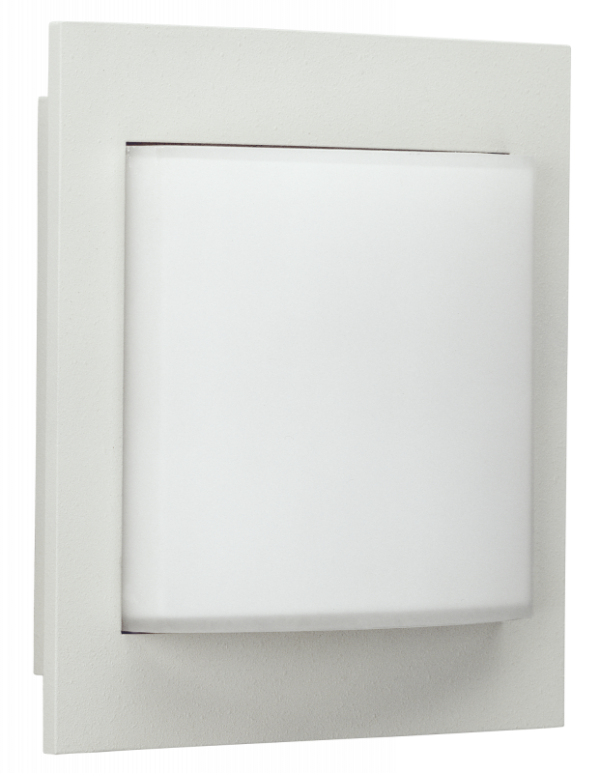

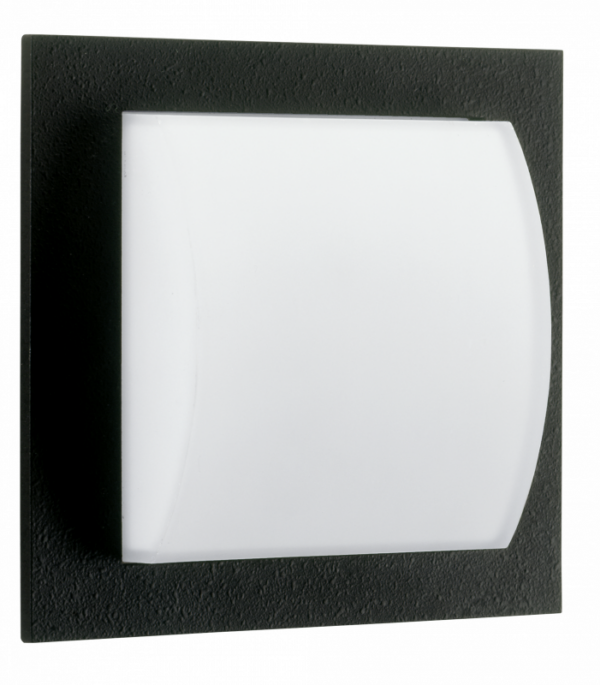

Wall and ceiling light

type ..6209

156,20179,70

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

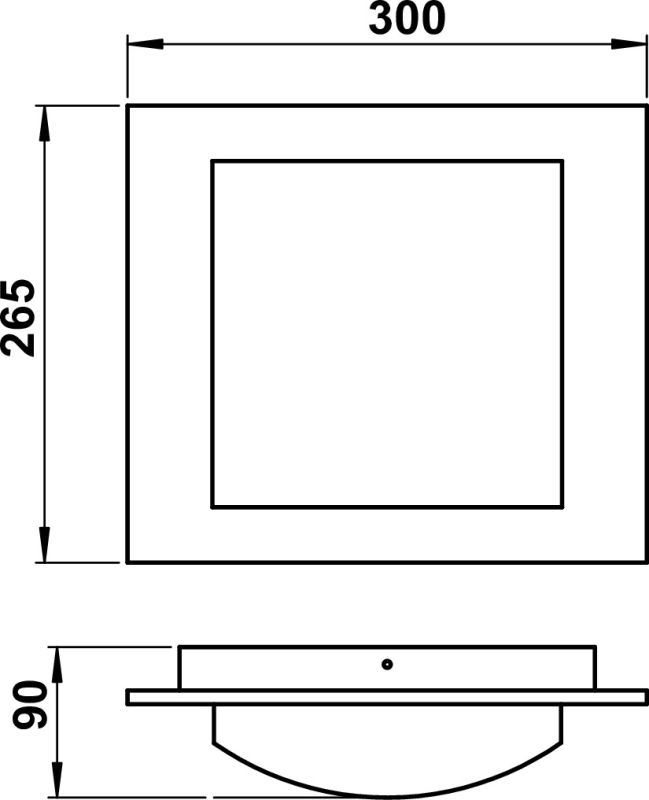

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 666209
Offertext
For: 686209
Offertext
For: 696209
Full catalog 21 / 22
Spare parts
90210348 - G 348, opal glass show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Material cover

Glass opal

Suitable for number of lamps

1

Lamp holder

E27

Material housing

Aluminium

Colour housing

Black, Silver, White

Type of control gear

Not required

Nominal voltage

230 V

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Degree of protection (IP)

IP44

Light output

Direct

Light sharing

Symmetric

Light output

1-seitig

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Protection class

I

Voltage type

AC

Length

90 mm

Suitable for lamp power

1 – 75 W

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Decke, Wand

Beam angle

Open beam/diffuse

Width

265 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

No dim function

Yes

Height/depth

300 mm

Max. system power

75 W

Height

< 700 mm

Style

Modern

Surface protection housing

Lacquered

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1
