Article number Select a color, please

Wall and ceiling light

type ..6208

163,00187,50

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Nominal voltage

230 V

Voltage type

AC

Protection class

I

Degree of protection (IP)

IP44

Suitable for number of lamps

1

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Type of control gear

Not required

Light output

Direct

Light sharing

Symmetric

Light output

1-seitig

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Max. system power

75 W

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Decke, Wand

No dim function

Yes

Height/depth

300 mm

Length

90 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

Beam angle

Open beam/diffuse

Height

< 700 mm

Style

Modern

Surface protection housing

Lacquered

Width

200 mm

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Documents and files
Data sheet
Assembly instruction
PDF | 35 KB

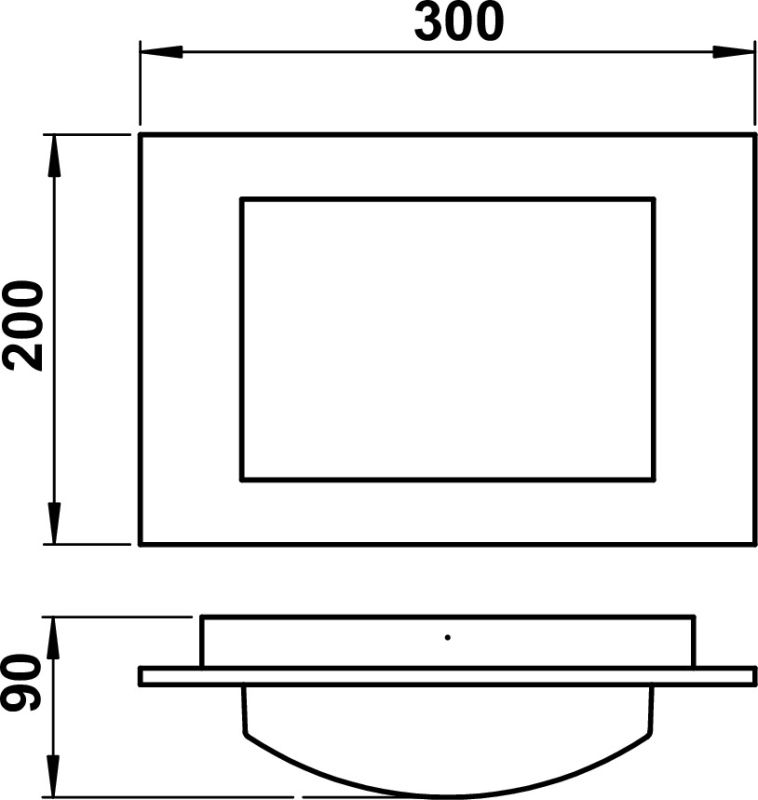

Dimensioned drawing
PDF | 21 KB
Light distribution curve - Eulumdat/LDT
LDT | 3 KB
Offertext
For: 666208
TXT | 420 B
Offertext
For: 686208
TXT | 423 B
Offertext
For: 696208
TXT | 196 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210349 - G 349, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
