Article number 690506

Base luminaire

type ..0506

302,40

Specifications

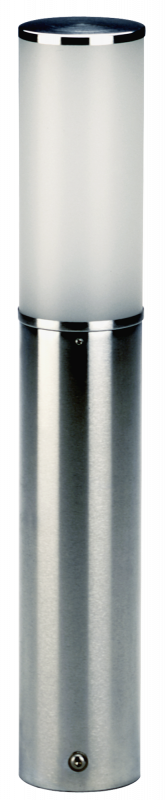

Albert base luminaire 690506 made of stainless steel with frosted acrylic glass cylinder. Designed for 1 x lamp max. 20 W, socket E27.ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.protection class IP 44 – protection class : d 80 x 500 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, structured
Weight 1,60 kg
Light output

2-seitig

Nominal voltage

230 V

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Style

Edelstahl, Modern

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Type of control gear

Not required

Voltage type

AC

Suitable for number of lamps

1

With base plate

Yes

Number of poles

3

Type of wiring

Suitable for through wiring

Protection class

I

Diameter

80 mm

Max. system power

75 W

Type of luminaire

Pedestal luminaire

Light output

Direct/indirect

Degree of protection (IP)

IP44

Height

< 700 mm

Housing material quality

Stainless steel 304 (V2A)

Height/depth

500 mm

Light sharing

Symmetric

Power factor

1

Beam angle

Open beam/diffuse

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 30 KB

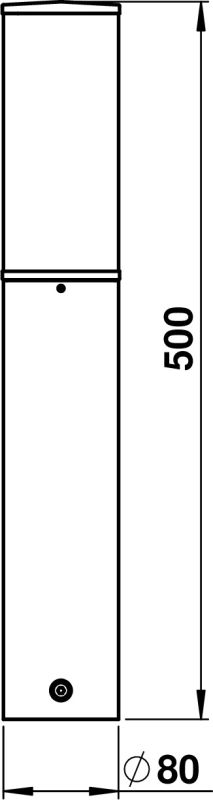

Dimensioned drawing
PDF | 23 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260371 - G-371, acrylic satin 190 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show
