Article number Select a color, please

Base luminaire

type ..0530

321,10

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Socket lockable Product-Icon The socket is lockable, the key is removable.
The socket is lockable, the key is removable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

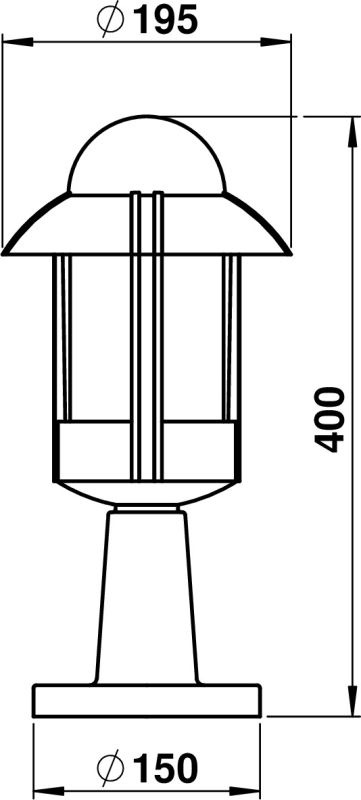

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 600530
Offertext
For: 650530
Offertext
For: 670530
Full catalog 21 / 22
Spare parts
90210258 - G 258, glass opal glossy Thread 84,5 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Type of luminaire

Pedestal luminaire

Material cover

Glass opal

Lamp holder

E27

Lamp type

Incandescent lamp

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Type of wiring

Suitable for through wiring

With base plate

Yes

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Height/depth

400 mm

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Colour housing

Black-Silver, Brown-Brass, White-Gold

Diameter

195 mm

Light sharing

Symmetric

Power factor

1

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Protection class

I

Degree of protection (IP)

IP44

Height

< 700 mm

Width

150 mm

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Light output

2-seitig

Style

Landhaus

Shape

Eckig
