Article number Select a color, please

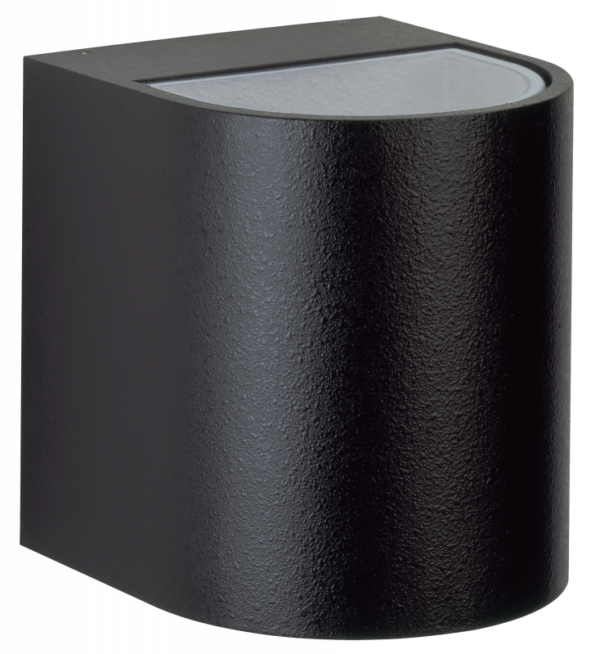

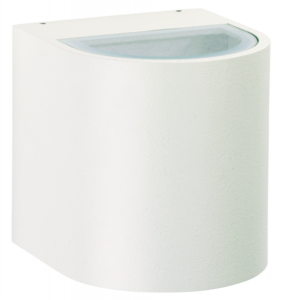

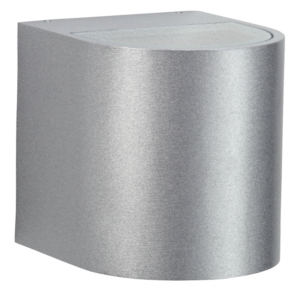

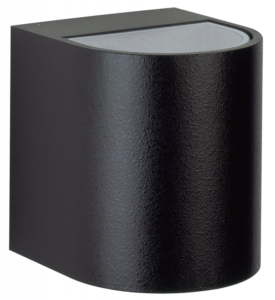

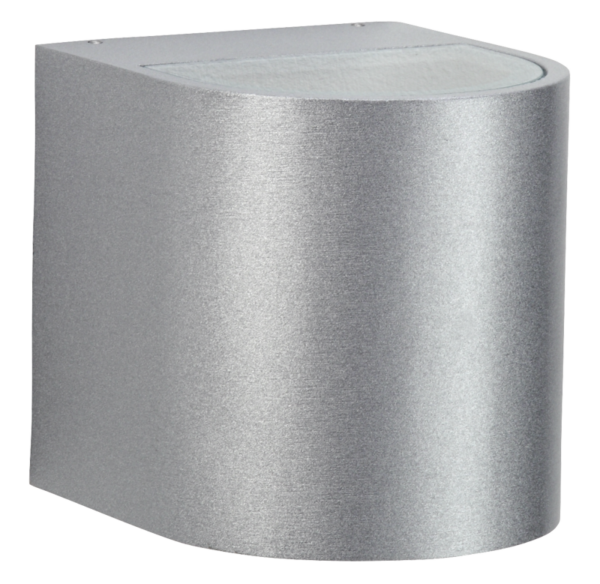

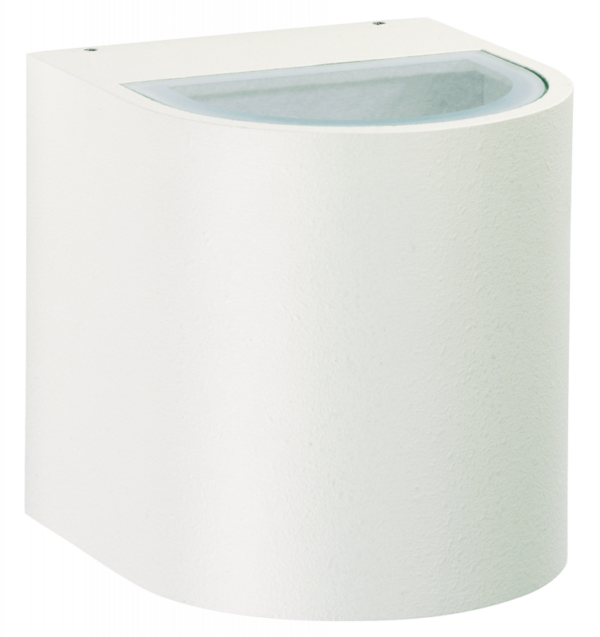

Wall floodlight

type ..2402

380,90438,20

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Upper / lower light Product-Icon Luminaire has a 2-sided light emission (top/bottom).
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
6.7 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction
Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662402
Offertext
For: 682402
Offertext
For: 692402
Full catalog 21 / 22
Spare parts
90220336 - G 336, half-oval pane ESG show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Protection class

I

Voltage type

AC/DC

Suitable for pedestal/floor mounting

Yes

Length

155 mm

Beam angle

Medium beam 21-40°

Colour temperature

3000 K

Material cover

Glass transparent

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

2

Energy efficiency class of the provided exchangeable built-in lamp

E

Adjustability

Not adjustable

Material housing

Aluminium

Light sharing

Symmetric

Degree of protection (IP)

IP44

Surface protection

Lacquered

With control gear

Yes

Dimming phase cut-off

Yes

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Colour housing

Black, Silver, White

Height

< 700 mm

Height/depth

150 mm

Colour rendering index CRI

80-89

Max. system power

13.4 W

Light output

Direct/indirect

Luminous flux

1200 lm

Rated luminous flux according to IEC 62722-2-1

1200 lm

Colour consistency (McAdam ellipse)

SDCM3

Shape

Eckig

Light output

2-seitig

Colour of light

White

Number of poles

3

Conductor cross section

2.5 mm²

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

Exchangeable control gear

Yes

Suitable for lamp power

6.7 W

Suitable for wall mounting

Yes

Unified Glare Ratio (UGR)

1

Flickering value Pst LM

1

Type of wiring

Ending

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

No dim function

Yes

Power factor

0.9

Width

140 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
