Article number Select a color, please

Pole light 4-light

type ..2056

931,50

Clear
Features
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, White-Gold
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 225 W, 1 - 300 W
Material cover
Glass transparent
Pole included
Ja
Documents and files
Assembly instruction

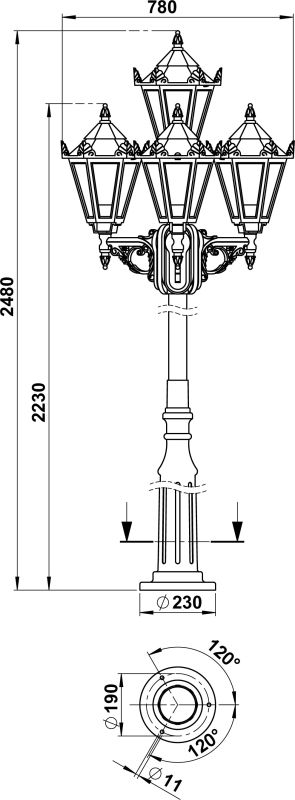

Dimensioned drawing
Offertext
For: 602056
Offertext
For: 672056
Full catalog 21 / 22
Spare parts
90220180 - G 180, disc set (6 pieces) show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show

Additional information

Weight N/A
Mounting Type

Post top

Dimming phase cut-on

Yes

Lamp type

HV halogen lamp

Dimming phase cut-off

Yes

Number of poles

3

Suitable for number of lamps

4

Lamp holder

E27

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Black-Silver, White-Gold

Material cover

Glass transparent

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

Length

780 mm

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A

Cable length

0 m

Suitable for lamp power

1 – 225 W, 1 – 300 W

Max. system power

225 W, 300 W

Power factor

1

Width

780 mm

Type of wiring

Suitable for through wiring

Height/depth

2480 mm

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

No dim function

Yes

Degree of protection (IP)

IP23

Protection class

I

Pole included

Ja

Shape

Eckig

Style

Landhaus

Light type

Standleuchte

Height

> 1700 mm
