Article number 690535

Base luminaire

type ..0535

415,20

Description

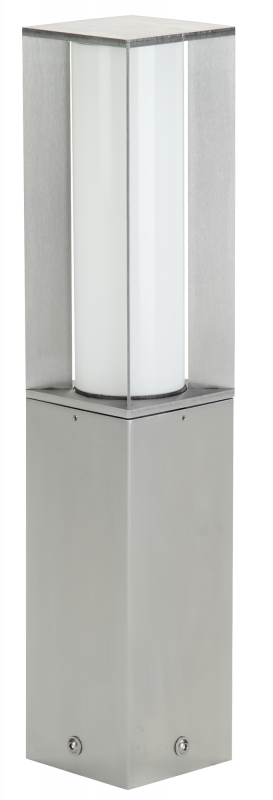

Albert base luminaire 690535 made of stainless steel with opal glass. Designed for 1 x lamp max. 20W, socket E27.ready for connection with mounting plate for screwing onto a foundation or onto the ground socket type no. 690010.protection class IP 44 – protection class : 100 x 100 x 500 mm

Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
LED components can be replaced by Albert luminaires.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Documents and files
Assembly instruction

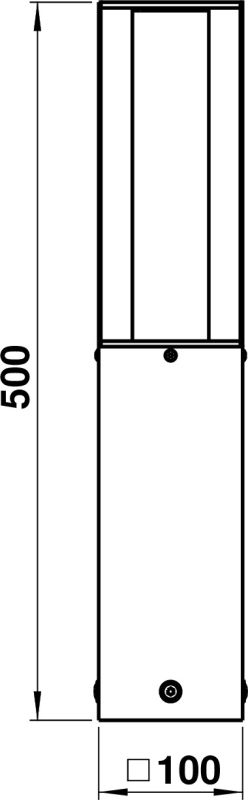

Dimensioned drawing
Light distribution curve
Full catalog 21 / 22
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show

Additional information

Weight 4.00 kg
Type of luminaire

Pedestal luminaire

With base plate

Yes

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Material cover

Glass opal

Colour housing

Stainless steel

Material housing

Stainless steel

Lamp holder

E27

Suitable for number of lamps

1

Lamp type

LED exchangeable

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A

Style

Edelstahl, Modern

Shape

Eckig

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Type of wiring

Suitable for through wiring

Height/depth

500 mm

Length

100 mm

Power factor

1

Max. system power

20 W

Suitable for lamp power

1 – 20 W

Protection class

I

Degree of protection (IP)

IP44

Height

< 700 mm
