Article number 692035

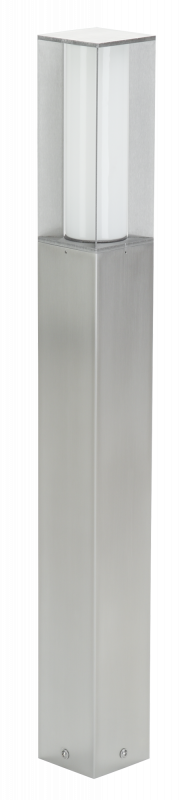

Bollard light

type ..2035

549,90

Specifications

Albert bollard light 692035 made of stainless steel with opal glass. For 1 x lamp max. 20W, socket E27.ready for connection with mounting plate for screwing onto a foundation or onto the ground socket type no. 690010.protection class IP 44 – protection class : 100 x 100 x 900 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Weight 6,00 kg
Type of luminaire

Bollard luminaire

Light sharing

Symmetric

Nominal voltage

230 V

With base plate

Yes

Diameter

100 mm

Degree of protection (IP)

IP44

Protection class

I

Highest energy efficiency class of the exchangeable lamp

A++

Voltage type

AC

Suitable for number of lamps

1

Max. system power

20 W

Power factor

1

Height/depth

900 mm

Beam angle

Open beam/diffuse

Light output

2-seitig

Type of control gear

Not required

Length

100 mm

Conductor cross section

2.5 mm²

Number of poles

3

Lowest energy efficiency class of the exchangeable lamp

E

Connection type

Screwed terminal

Style

Edelstahl, Modern

Light type

Standleuchte

Height

700 – 1000 mm

Housing material quality

Stainless steel 304 (V2A)

Light output

Direct/indirect

Type of wiring

Suitable for through wiring

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 31 KB

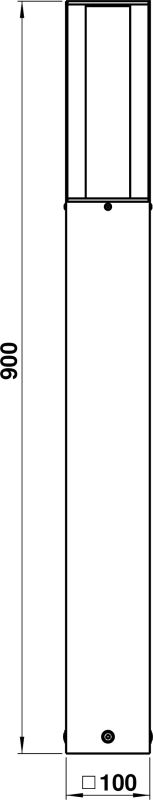

Dimensioned drawing
PDF | 19 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
690010 - Earth mounting base type ..0010 show
690080 - Recessed housing with protective contact socket IP44 / D show
90750309 - LED Retrofit Tube show
