Article number Select a color, please

Base luminaire

type ..0536

171,90

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Weight N/A
Type of luminaire

Pedestal luminaire

Max. system power

75 W

Suitable for number of lamps

1

Surface protection

Lacquered

Power factor

1

Height/depth

440 mm

Lowest energy efficiency class of the exchangeable lamp

E

With base plate

Yes

Degree of protection (IP)

IP44

Highest energy efficiency class of the exchangeable lamp

A++

Protection class

I

Voltage type

AC

Nominal voltage

230 V

Length

170 mm

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Height

< 700 mm

Type of control gear

Not required

Type of wiring

Suitable for through wiring

Light sharing

Symmetric

Light output

2-seitig

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 28 KB

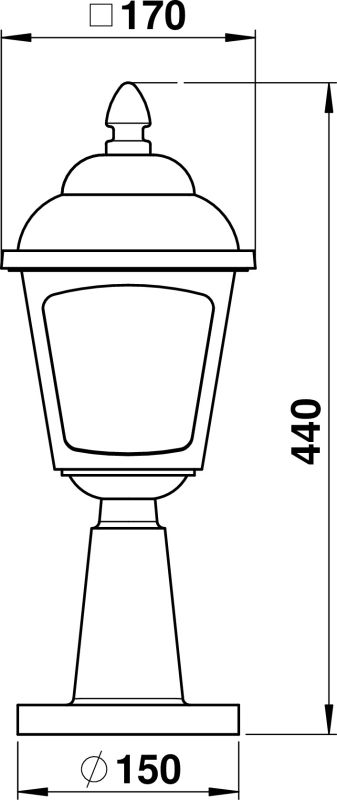

Dimensioned drawing
PDF | 15 KB
Offertext
For: 650536
TXT | 271 B
Offertext
For: 660536
TXT | 282 B
Offertext
For: 680536
TXT | 282 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210045 - G 45, glass insert, square, clear show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
