Wall floodlight

Name: Wall floodlight type ..2335
SKU: 692335
Price: 373.80 EUR
Availability: InStock

type ..2335

€373,80

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer

Specifications

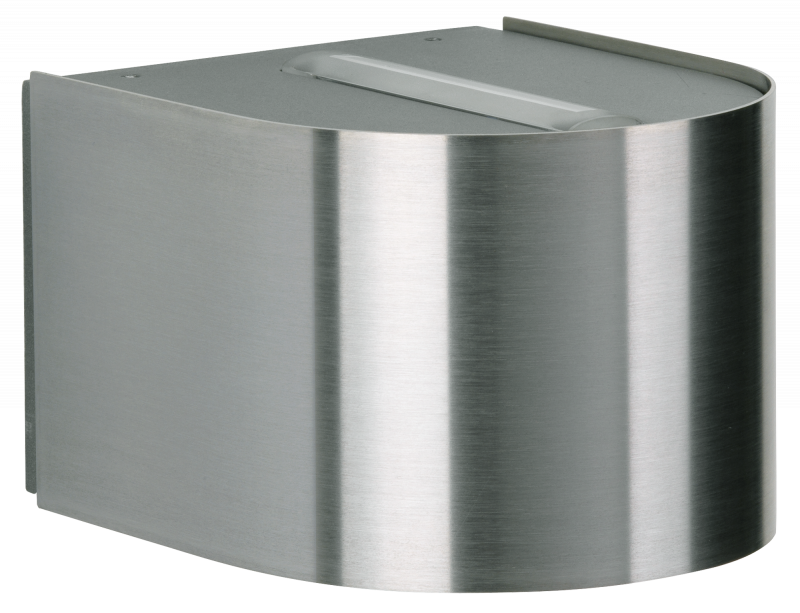

Albert wall spotlight 692335

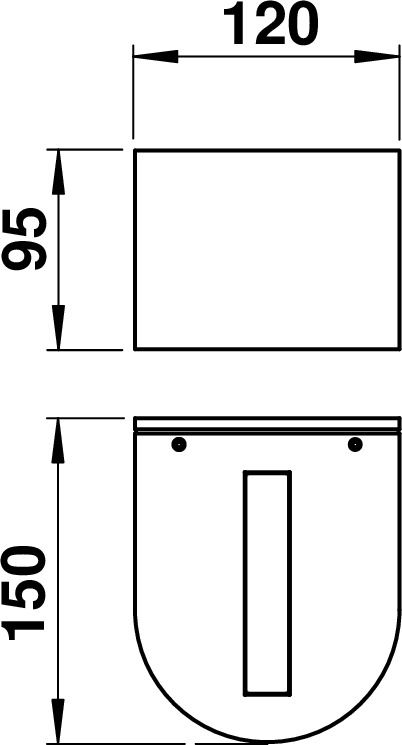

with 2-sided light emission, top and bottom narrow, made of stainless steel and cast aluminium with borosilicate glass. Equipped for 2 x LED 3 Watt each 290 lm, 3000 degree . Converter for connection to 230V/50Hzprotection class IP 44 – protection class : W 120 x H 95 x D 150 mm

Features

Luminaire can be operated with 230 V, 0/50-60 Hz.

Luminaire has IP 44 protection.

Luminaire is equipped with LED components.

LED components can be replaced.

Luminaire has a 2-sided light emission (top/bottom).

Material housing

Stainless steel

Colour housing

Stainless steel

Lamp type

LED exchangeable

With light source

Yes

Suitable for lamp power

3 W

Rated luminous flux according to IEC 62722-2-1

660 lm

Colour temperature

3000 K

Material cover

Glass transparent

Weight	1,00 kg
Light output	2-seitig
Voltage type	AC/DC
Surface brushed	Yes
Suitable for pedestal/floor mounting	Yes
Suitable for number of lamps	2
Energy efficiency class of the provided exchangeable built-in lamp	E
Dimming phase cut-off	Yes
Type of control gear	LED operating device voltage-controlled
Nominal voltage	230 V
Protection class	I
Beam angle	Medium beam 21-40°
Max. system power	6 W
With control gear	Yes
Colour rendering index CRI	80-89
Adjustability	Not adjustable
Unified Glare Ratio (UGR)	1
Length	150 mm
Colour of light	White
Luminous flux	660 lm
Flickering value Pst LM	1
Max. number of luminaires per miniature circuit breaker C16	30
Light output	Direct/indirect
Number of poles	3
Conductor cross section	2.5 mm²
Connectable conductor cross section	0.75 – 2.5 mm²
Connection type	Screwed terminal
Max. number of luminaires per miniature circuit breaker B16	20
Height/depth	95 mm
Degree of protection (IP)	IP44
No dim function	Yes
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Stroboscope effect value SVM	0.4
Colour consistency (McAdam ellipse)	SDCM3
Width	120 mm
Height	< 700 mm
Suitable for wall mounting	Yes
Type of wiring	Ending
Exchangeable control gear	Yes
Light sharing	Symmetric
Suitable for surface mounting	Yes
Power factor	0.9
Beam angle adjustable	Continuously variable
Light distributor	Focal lens
Shape	Eckig
Style	Landhaus
