Article number Select a color, please

Bollard light

type ..2082

This product is no longer in our assortment.
You can find a successor of this product listed below.

Nicht lieferbar

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LV halogen lamp
Lamp holder
GU5.3
Suitable for lamp power
0 - 50 W
Material cover
Glass transparent
Documents and files
Assembly instruction

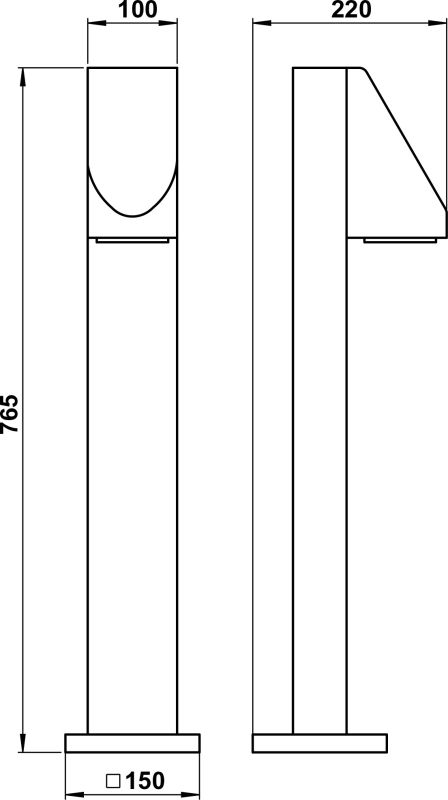

Dimensioned drawing
Offertext
For: 662082
Offertext
For: 682082
Offertext
For: 692082
Full catalog 21 / 22
Successor

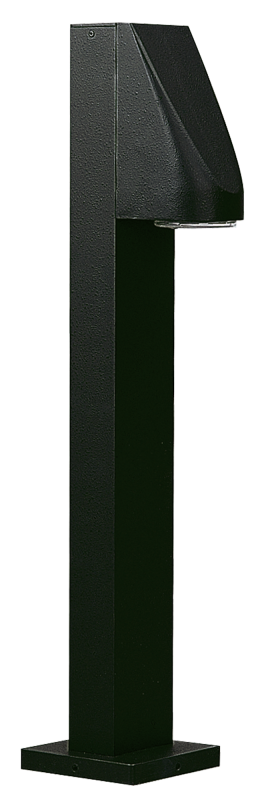

662077 - Bollard light type ..2077, Black
Für: 662082
show

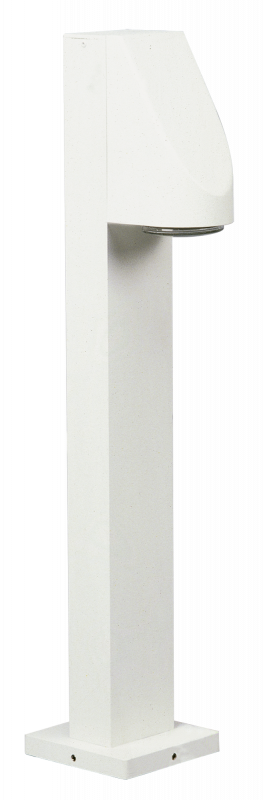

682077 - Bollard light type ..2077, White
Für: 682082
show

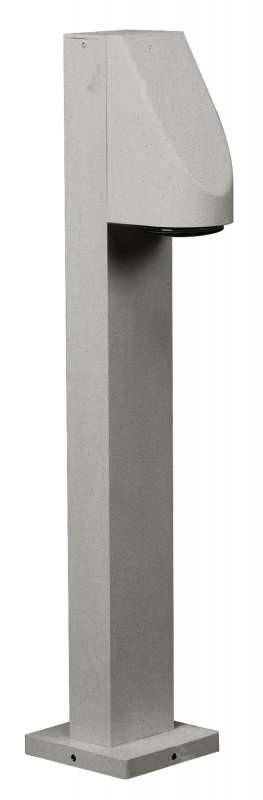

692077 - Bollard light type ..2077, Silver
Für: 692082
show
Spare parts
90210048 - G 48, bubble glass insert clear show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Power factor

1

Nominal voltage

230 V

Voltage type

AC/DC

Material cover

Glass transparent

Colour housing

Black, Silver, White

With control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lamp holder

GU5.3

Material housing

Aluminium

Type of wiring

Suitable for through wiring

Lamp type

LV halogen lamp

Surface protection

Lacquered

Height/depth

765 mm

Lowest energy efficiency class of the exchangeable lamp

E

Light type

Standleuchte

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

With base plate

Yes

Type of control gear

Magnetic transformer

Suitable for number of lamps

1

Degree of protection (IP)

IP43

Light output

Direct/indirect

Max. system power

55 W

Suitable for lamp power

0 – 50 W

Protection class

I

Length

220 mm

Height

700 – 1000 mm

Exchangeable control gear

Yes

Type of luminaire

Bollard luminaire

Beam angle

Open beam/diffuse

Light sharing

Symmetric

Light output

2-seitig

Width

100 mm

Shape

Eckig
