Article number Select a color, please

Bollard light

type ..2279

328,60378,00

Clear
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

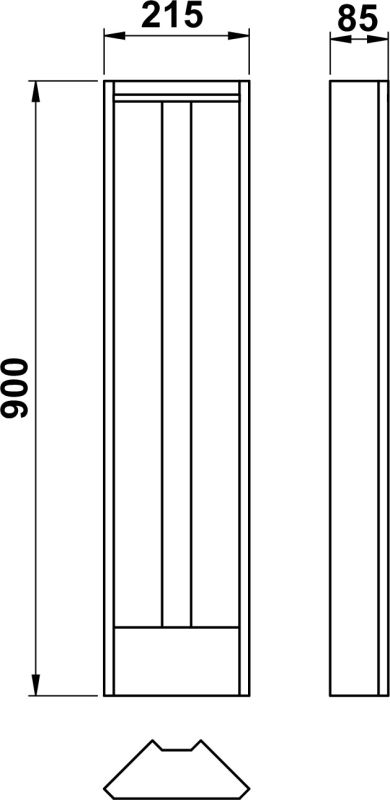

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622279
Offertext
For: 662279
Offertext
For: 682279
Offertext
For: 692279
Full catalog 21 / 22
Spare parts
90270494 - G 494, acrylic glass pane show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Lamp type

LED exchangeable

Colour housing

Anthracite, Black, Silver, White

Surface protection

Lacquered

Energy efficiency class of the provided exchangeable built-in lamp

E

Material cover

Plastic, opal

Voltage type

AC

Type of control gear

LED operating device voltage-controlled

Highest energy efficiency class of the exchangeable lamp

A+

Colour rendering index CRI

80-89

With control gear

Yes

Number of poles

3

Lowest energy efficiency class of the exchangeable lamp

E

Nominal voltage

230 V

With light source

Yes

With base plate

Yes

Suitable for number of lamps

1

Max. system power

10 W

Type of wiring

Suitable for through wiring

Degree of protection (IP)

IP54

Power factor

0.9

Light type

Standleuchte

Height/depth

900 mm

Material housing

Aluminium

Light sharing

Asymmetric

Rated luminous flux according to IEC 62722-2-1

900 lm

Suitable for lamp power

10 W

Width

215 mm

Connection type

Screwed terminal

Colour of light

White

Colour temperature

3000 K

Height

700 – 1000 mm

Style

Modern

Exchangeable control gear

Yes

Protection class

I

Light output

Indirect

Length

85 mm

Beam angle

Open beam/diffuse

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Conductor cross section

2.5 mm²

Shape

Eckig
