Article number Select a color, please

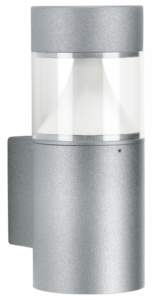

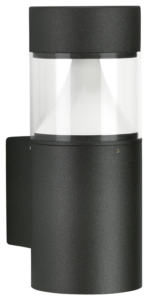

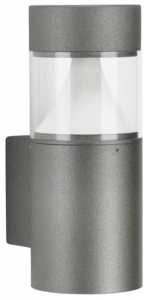

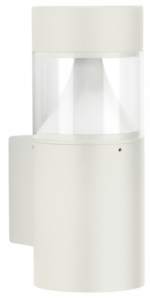

Wall light

type ..0275

346,60398,70

Clear
Features
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
9 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

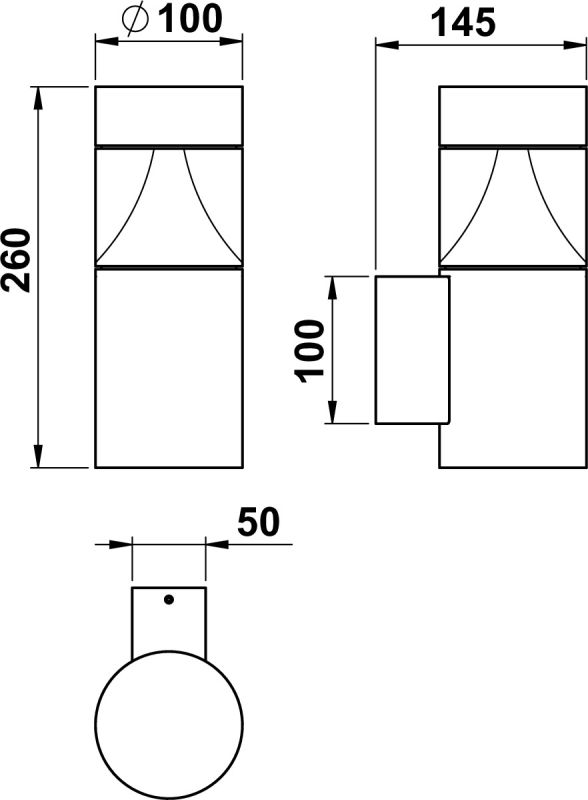

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620275
Offertext
For: 660275
Offertext
For: 680275
Offertext
For: 690275
Full catalog 21 / 22
Spare parts
10260504 - G-504, acrylic -tubes clear show
Accessories
621002 - Corner bracket type ..1002, Anthracite
Für: 620275
show
661002 - Corner bracket type ..1002, Black
Für: 660275
show
681002 - Corner bracket type ..1002, White
Für: 680275
show
691002 - Corner bracket type ..1002, Stainless steel
Für: 690275
show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Light output

1-seitig

Beam angle

Open beam/diffuse

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Suitable for lamp power

9 W

Colour of light

White

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP54

Impact strength

IK08

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Dimming phase cut-off

Yes

Colour housing

Anthracite, Black, Silver, White

Material cover

Plastic, transparent

Voltage type

AC

With control gear

No, Yes

Photobiological safety according to EN 62471

RG1

Flickering value Pst LM

0.5

Max. system power

9 W

Connection type

Screwed terminal

Light type

Wandleuchte

Height

< 700 mm

Length

145 mm

Rated luminous flux according to IEC 62722-2-1

1200 lm

Colour temperature

3000 K

No dim function

Yes

Colour consistency (McAdam ellipse)

SDCM3

Stroboscope effect value SVM

0.6

Outer diameter

100 mm

Mounting Type

Wand

Type of wiring

Ending

Number of poles

3

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Shape

Eckig

Style

Modern

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Power factor

0.8

Exchangeable control gear

No, Yes

Light sharing

Symmetric

Height/depth

260 mm

Max. number of luminaires per miniature circuit breaker B16

20

Surface protection housing

Lacquered

Dimming depending on control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Rated life time L70/B50 at 25 °C

50000 h

Rated life time L80/B10 at 25 °C

50000 h

Rated life time L90/B10 at 25 °C

50000 h
