Article number Select a color, please

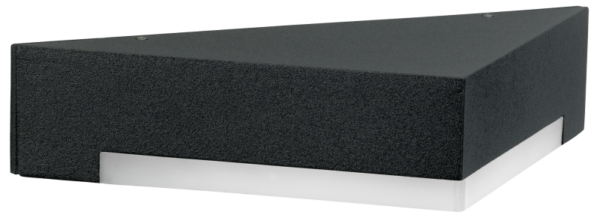

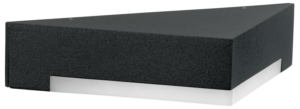

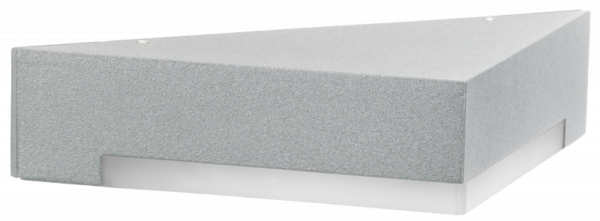

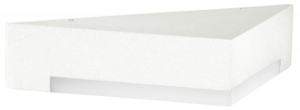

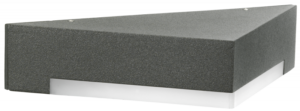

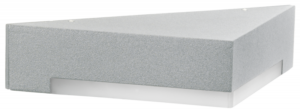

Wall light

type ..0333

193,00222,10

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
5 W
Rated luminous flux according to IEC 62722-2-1
480 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Documents and files
Assembly instruction

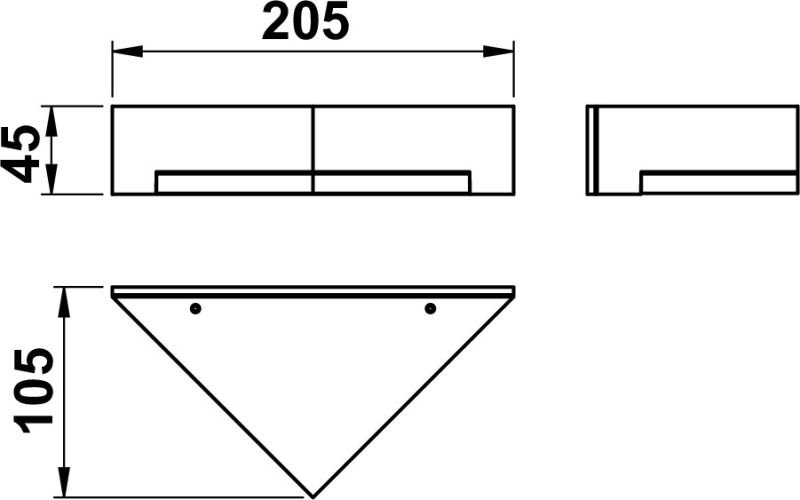

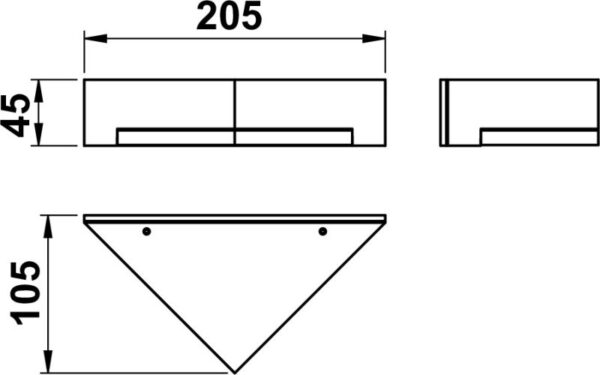

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext

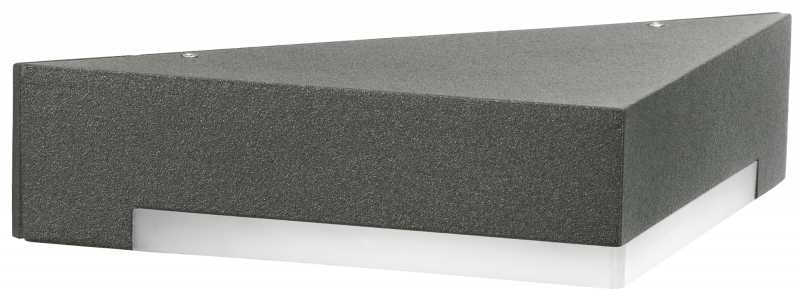

For: 620333
Offertext
For: 660333
Offertext

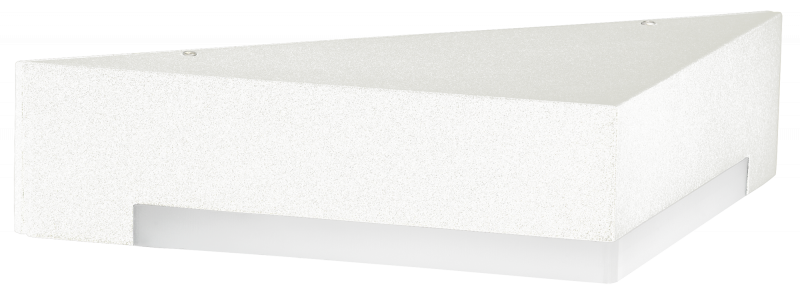

For: 680333
Offertext

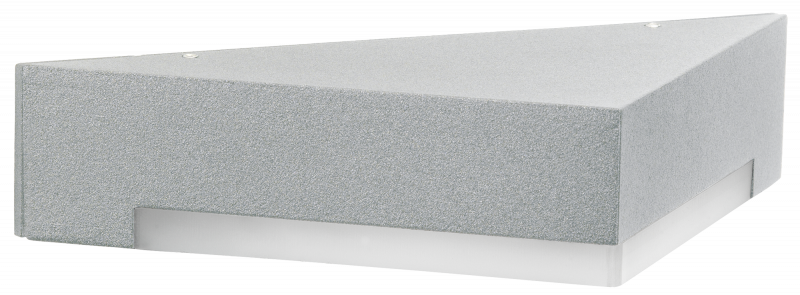

For: 690333
Full catalog 21 / 22
Spare parts
90270493 - G 493, acrylic glass pane white show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Voltage type

AC

With light source

Yes

Conductor cross section

2.5 mm²

Suitable for surface mounting

Yes

Colour housing

Anthracite, Black, Silver, White

Light output

Direct

Lamp type

LED exchangeable

Max. system power

5 W

Material cover

Plastic, opal

Material housing

Aluminium

With control gear

Yes

Beam angle

Open beam/diffuse

Suitable for number of lamps

1

Number of poles

3

Suitable for lamp power

5 W

Height/depth

40 mm

Power factor

0.9

Width

200 mm

Dimming phase cut-off

Yes

Length

105 mm

Light type

Wandleuchte

Light sharing

Symmetric

Energy efficiency class of the provided exchangeable built-in lamp

E

Type of wiring

Ending

Colour rendering index CRI

80-89

Degree of protection (IP)

IP54

Light output

1-seitig

Dimming depending on control gear

Yes

Style

Modern

Surface protection housing

Lacquered

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Connection type

Screwed terminal

Colour temperature

3000 K

Colour of light

White

Rated luminous flux according to IEC 62722-2-1

480 lm

Height

< 700 mm

Stroboscope effect value SVM

0.4

Mounting Type

Wand

Exchangeable control gear

Yes

No dim function

Yes

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Shape

Eckig
