Article number Select a color, please

Bollard light, 360 degrees, symmetrical

type no. 622298

899,801.034,70

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
DALI control Product-Icon Luminaire can be supplied for DALI control.
Luminaire can be supplied for DALI control.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Amber LED possible Product-Icon Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
18.5 W, 4.5 W
Rated luminous flux according to IEC 62722-2-1
2000 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

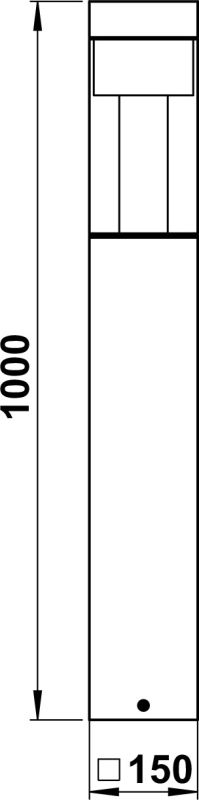

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622298
Offertext
For: 662298
Full catalog 21 / 22
Spare parts
90270474 - G-474, acrylic 150 x 150 x 3 mm, 270 mm show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Energy efficiency class of the provided exchangeable built-in lamp

E

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Highest energy efficiency class of the exchangeable lamp

A+

Colour temperature

3000 K

Colour housing

Anthracite, Black

With control gear

Yes

Rated luminous flux according to IEC 62722-2-1

2000 lm

Material cover

Plastic, transparent

Nominal voltage

230 V

Surface protection

Lacquered

Lowest energy efficiency class of the exchangeable lamp

E

With base plate

Yes

Colour rendering index CRI

80-89

Width

150 mm

Height/depth

1000 mm

Suitable for lamp power

18.5 W, 4.5 W

Max. system power

18.5 W

Voltage type

AC/DC

Colour of light

White

Degree of protection (IP)

IP54

Flickering value Pst LM

1

Exchangeable control gear

Yes

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Light type

Standleuchte

Height

700 – 1000 mm

Type of control gear

LED operating device current-controlled

Power factor

0.9

Light output

Direct/indirect

Impact strength

IK08

Light sharing

Symmetric

Stroboscope effect value SVM

0.4

Beam angle

Open beam/diffuse

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Light output

2-seitig

Protection class

I

Length

150 mm

Shape

Eckig
