Bollard light, 180 degrees, asymmetrical

type no. 622288

873,601.004,60

Clear
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire can be supplied for DALI control.
Luminaire is equipped with increased or additional overvoltage protection.
Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
18.5 W
Rated luminous flux according to IEC 62722-2-1
2000 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

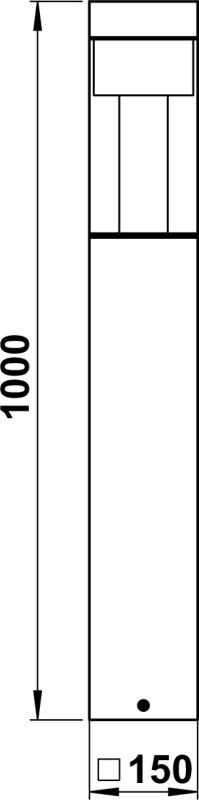

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 622288
Offertext
For: 662288
Full catalog 21 / 22
Spare parts
90270474 - G-474, acrylic 150 x 150 x 3 mm, 270 mm show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Material cover

Plastic, transparent

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Highest energy efficiency class of the exchangeable lamp

A+

Colour temperature

3000 K

Colour housing

Anthracite, Black

With control gear

Yes

Nominal voltage

230 V

Energy efficiency class of the provided exchangeable built-in lamp

E

Surface protection

Lacquered

Lowest energy efficiency class of the exchangeable lamp

E

With base plate

Yes

Colour rendering index CRI

80-89

Width

150 mm

Height/depth

1000 mm

Suitable for lamp power

18.5 W

Max. system power

18.5 W

Voltage type

AC/DC

Colour of light

White

Degree of protection (IP)

IP54

Rated luminous flux according to IEC 62722-2-1

2000 lm

Light sharing

Asymmetric

Exchangeable control gear

Yes

Protection class

I

Length

150 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Light type

Standleuchte

Height

700 – 1000 mm

Type of control gear

LED operating device current-controlled

Power factor

0.9

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Impact strength

IK08

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Light output

2-seitig

Shape

Eckig
