Article number 690765

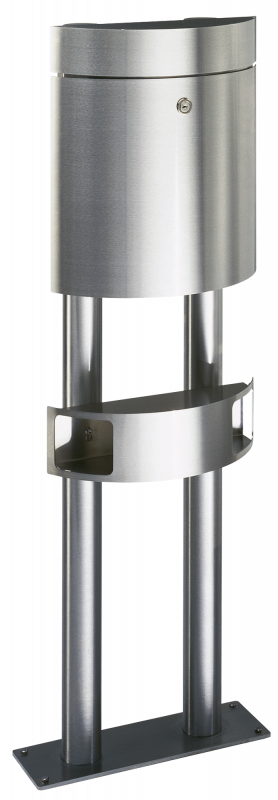

Free-standing letterbox

type ..0765

732,10

Specifications

Albert letter box 690765 made of stainless steel, with letter box 690743 and newspaper roll 690744, letter box with stainless steel lever (no suggestions), dimensions: 400 x 110 x 340 mm, letter insertion from above, letter removal from the front with newspaper roll 340 x 100 x 110 mm, stand tube d 60 mm, with floor mounting plate dimensions: 380 x 120 x 1100 mm

Colour
Stainless steel
Weight 14,80 kg
Insert

Above

Number of call buttons

0

Mounting method

Standing

Width of case

340 mm

With post retaining bracket

Yes

Removal

Front side

Height throw-in

40 mm

Width throw-in

260 mm

Volume of case

14.586 l

Depth of case

110 mm

Box height

390 mm

Number of mail boxes

1

Overall depth

175 mm

Total height

1100 mm

Total width

340 mm

With newspaper compartment

Yes

Material

Stainless steel

Number of module positions

1

Shape

Eckig

Documents and files

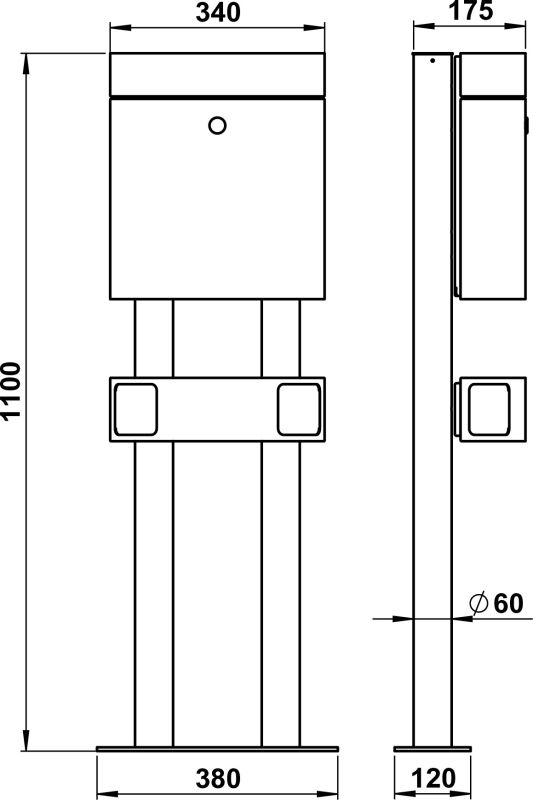

Dimensioned drawing
PDF | 110.8 KB
Full catalog 21 / 22
PDF | 38.74 MB

Additional information

Weight 14,80 kg
Insert

Above

Number of call buttons

0

Mounting method

Standing

Width of case

340 mm

With post retaining bracket

Yes

Removal

Front side

Height throw-in

40 mm

Width throw-in

260 mm

Volume of case

14.586 l

Depth of case

110 mm

Box height

390 mm

Number of mail boxes

1

Overall depth

175 mm

Total height

1100 mm

Total width

340 mm

With newspaper compartment

Yes

Material

Stainless steel

Number of module positions

1

Shape

Eckig
