Article number Select a color, please

Base luminaire

type ..0529

229,80

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Documents and files
Assembly instruction

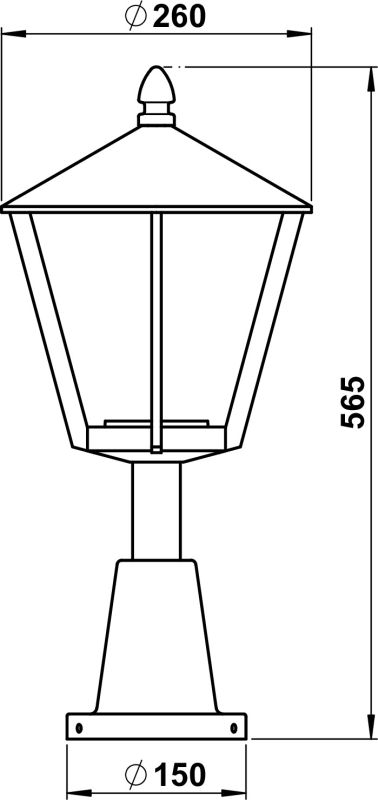

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 650529
Offertext
For: 660529
Offertext
For: 680529
Full catalog 21 / 22
Spare parts
90260144 - G 144, lamp glasses L-750 show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show

Additional information

Weight N/A
Type of luminaire

Pedestal luminaire

Type of control gear

Not required

Colour housing

Black, Brown-Brass, White

Surface protection

Lacquered

Lamp holder

E27

Highest energy efficiency class of the exchangeable lamp

A++

Suitable for number of lamps

1

Lamp type

HV halogen lamp, Incandescent lamp

Material housing

Aluminium

Diameter

260 mm

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Number of poles

3

Nominal voltage

230 V

With base plate

Yes

Voltage type

AC

Material cover

Plastic, transparent

Type of wiring

Suitable for through wiring

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Height

< 700 mm

Light sharing

Symmetric

Light output

2-seitig

Style

Landhaus

Beam angle

Open beam/diffuse

Max. system power

75 W

Power factor

1

Height/depth

565 mm

Light output

Direct/indirect

Suitable for lamp power

1 – 75 W

Protection class

I

Shape

Eckig
