Article number Select a color, please

Path light

type ..4129

282,50

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Weight N/A
Light sharing

Symmetric

Suitable for number of lamps

1

Diameter

260 mm

Highest energy efficiency class of the exchangeable lamp

A++

Connection type

Screwed terminal

Type of control gear

Not required

Conductor cross section

2.5 mm²

Nominal voltage

230 V

Voltage type

AC

Surface protection

Lacquered

Number of poles

3

With base plate

Yes

Power factor

1

Lowest energy efficiency class of the exchangeable lamp

E

Light output

2-seitig

Style

Landhaus

Beam angle

Open beam/diffuse

Type of luminaire

Bollard luminaire

Type of wiring

Suitable for through wiring

Light output

Direct/indirect

Max. system power

75 W

Protection class

I

Degree of protection (IP)

IP44

Height

1001 – 1700 mm

Height/depth

1355 mm

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 26 KB

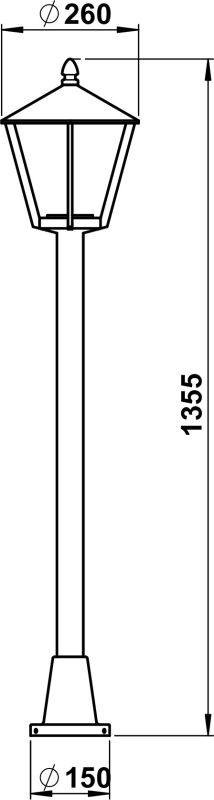

Dimensioned drawing
PDF | 59 KB
Light distribution curve - Eulumdat/LDT
LDT | 832 B
Offertext
For: 654129
TXT | 279 B
Offertext
For: 664129
TXT | 305 B
Offertext
For: 684129
TXT | 305 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90260144 - G 144, lamp glasses L-750 show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
