Data sheet
Article number 692172
Ground recessed spotlight
type ..2172
€225,20
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

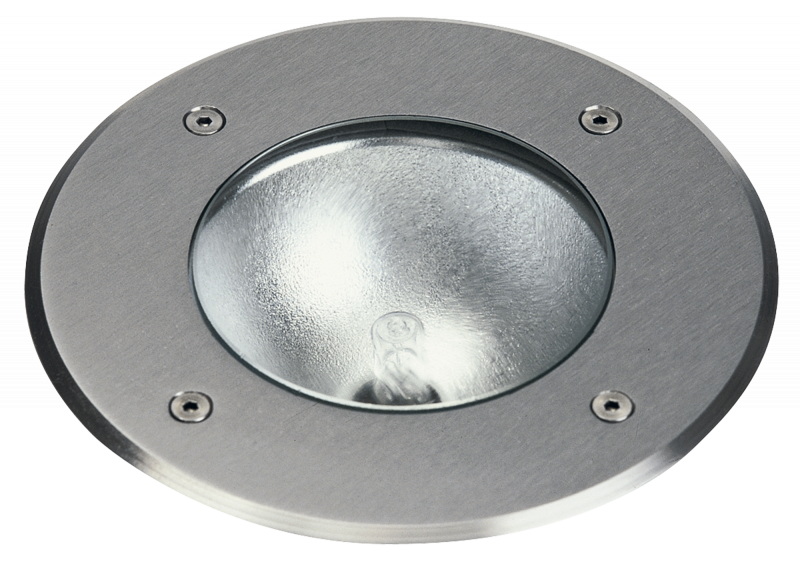

Albert ground recessed spot 692172 in cast aluminium with round stainless steel cover, clear safety glass. Fitted for 1 x QT 14 max. 75W, socket G9. One blind and one cable gland each for mains connection cables d 6-12 IP 67 – protection class I. For pressure loads up to 1000 kg. Dimensions: d 150 x 140 x 150 mm Surface temperature 158 degrees C
Features
The luminaire has IP 67 protection.
Material housing
Aluminium
Colour housing
Silver
Lamp type
HV halogen lamp
Suitable for lamp power
60 W
Material cover
Glass transparent
Documents and files
Assembly instruction

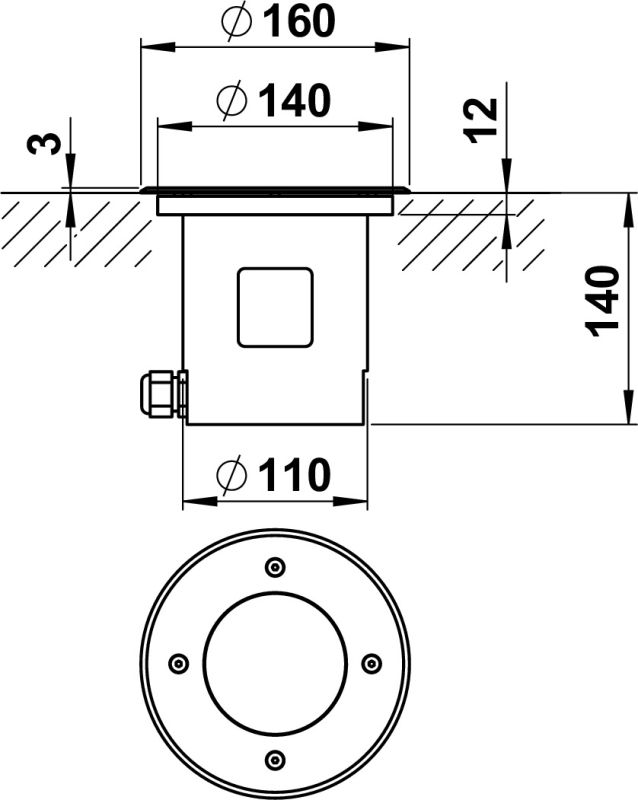

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Additional information
| Weight | 1,80 kg |
|---|---|
| Connection type | Screwed terminal |
| Voltage type | AC |
| Built-in diameter | 110 mm |
| Dimming manufacturer's proprietary system | Yes |
| Nominal voltage | 230 V |
| Light distributor | Reflector |
| Colour housing | Silver |
| Suitable for number of lamps | 1 |
| Material cover | Glass transparent |
| Load capacity | 0 bis 2000 kg |
| Dimming phase cut-off | Yes |
| Type of control gear | Not required |
| Height/depth | 140 mm |
| Beam angle | Medium beam 21-40° |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Outer diameter | 160 mm |
| Built-in height/depth | 140 mm |
| No dim function | Yes |
| Type of wiring | Suitable for through wiring |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Power factor | 1 |
| Max. load | 1200 kg |
| Light sharing | Symmetric |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP67 |
| Protection class | I |
| Suitable for lamp power | 60 W |
| Max. system power | 60 W |
| Colour of light | White |
| Height | < 700 mm |
| Material housing | Aluminium |
| Max. surface temperature | 35 °C |
| Lamp type | HV halogen lamp |
| Impact strength | IK08 |
| Over rollable | Yes |
| Shape | Eckig |
