Article number Select a color, please

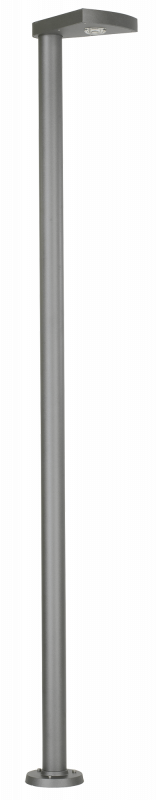

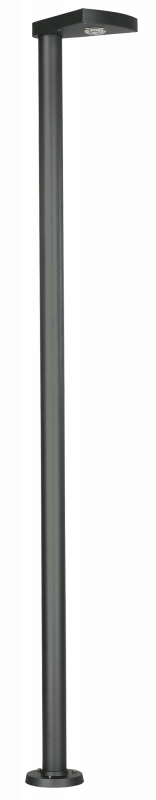

Pole light

type ..0866

999,601.149,50

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
26 W, 27 W
Rated luminous flux according to IEC 62722-2-1
3000 lm
Colour temperature
3000 K
Material cover
Without cover
Pole included
Ja
Documents and files
Assembly instruction

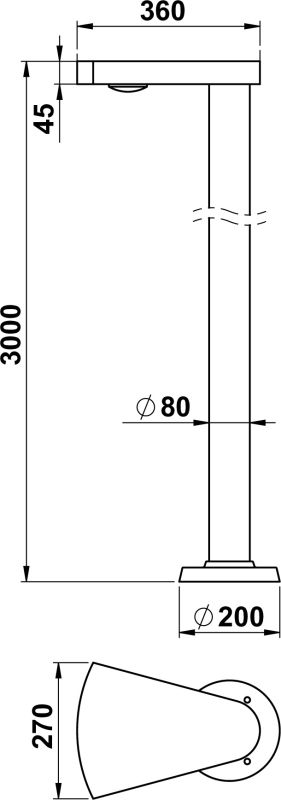

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 620866
Offertext
For: 660866
Full catalog 21 / 22
Accessories
690011 - Earth mounting base type ..0011 show

Additional information

Weight N/A
Mounting Type

Post top

Conductor cross section

2.5 mm²

With control gear

Yes

No dim function

Yes

Connection type

Screwed terminal

Lamp type

LED exchangeable

Material cover

Without cover

Colour housing

Anthracite, Black

Light distributor

Refractor lens

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Voltage type

AC/DC

Height/depth

3000 mm

Nominal voltage

230 V

Type of control gear

LED operating device current-controlled

Cable length

0 m

Power factor

0.9

Lowest energy efficiency class of the exchangeable lamp

E

Energy efficiency class of the provided exchangeable built-in lamp

E

Max. system power

26 W, 27 W

Rated luminous flux according to IEC 62722-2-1

3000 lm

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

Degree of protection (IP)

IP54

Length

350 mm

Width

270 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Suitable for lamp power

26 W, 27 W

Highest energy efficiency class of the exchangeable lamp

A+

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light type

Standleuchte

Height

> 1700 mm

Exchangeable control gear

Yes

Colour consistency (McAdam ellipse)

SDCM3

Pole included

Ja

Shape

Eckig
