Article number 662128

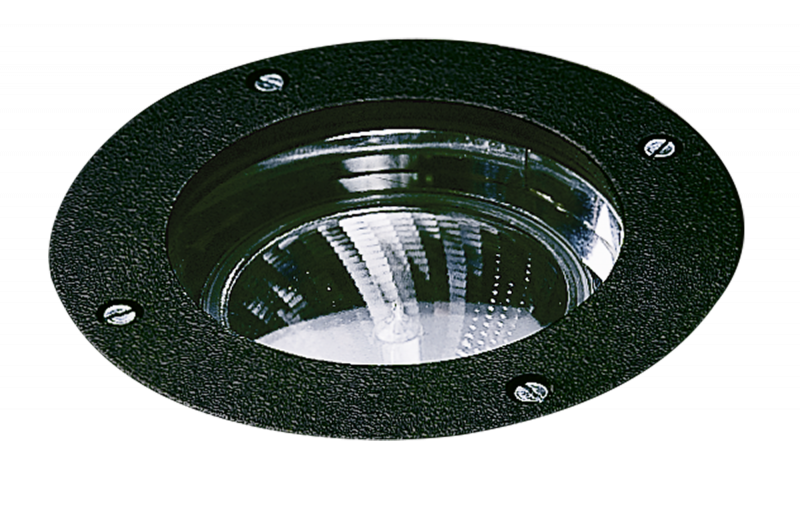

Ground recessed spotlight

type ..2128

189,80

Description

Albert ground recessed spotlight 662128 made of cast aluminium with round cover, safety glass clear. Equipped for 1 x PAR 30 max. 100W, socket E27. One blind and one cable gland each for mains connection cables d 6 – 12 mm. Protection class IP 67 – protection class I. For pressure load up to 120 kg. The glass surface reaches a temperature of max. 160 degrees C. Colour: black Dimensions: d 170 x 135 mm

Features
IP67 Product-Icon The luminaire has IP 67 protection.
The luminaire has IP 67 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
0 - 75 W
Material cover
Glass transparent
Documents and files
Assembly instruction

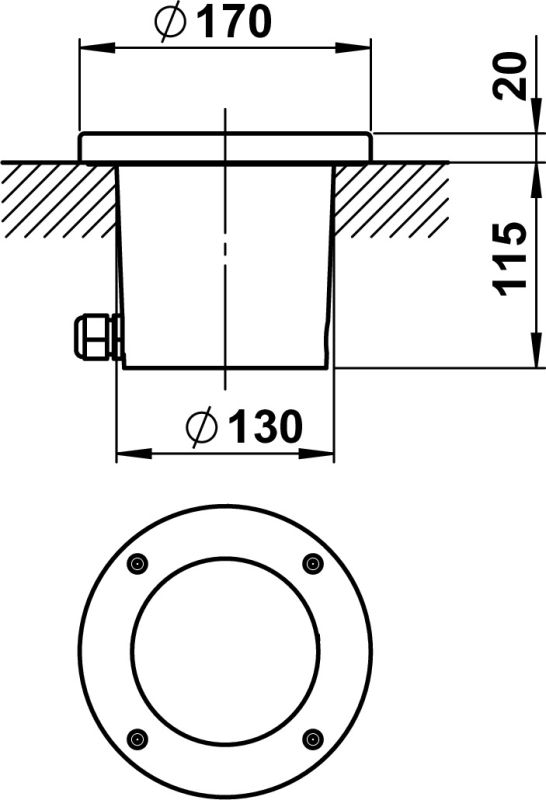

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220109 - G 109, UV blocking filter glass G-109 show
Accessories
90750106 - LED PAR 30 show

Additional information

Weight 1,50 kg
Number of poles

3

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

Outer diameter

170 mm

Colour housing

Black

Suitable for lamp power

0 – 75 W

Connection type

Screwed terminal

Built-in height/depth

115 mm

Built-in diameter

130 mm

Load capacity

0 bis 2000 kg

Material cover

Glass transparent

Height/depth

115 mm

No dim function

Yes

Suitable for number of lamps

1

Degree of protection (IP)

IP67

Lamp holder

E27

Type of wiring

Suitable for through wiring

Protection class

I

Impact strength

IK08

Material housing

Aluminium

Lamp type

HV halogen lamp

Max. surface temperature

35 °C

Height

< 700 mm

Conductor cross section

2.5 mm²

Highest energy efficiency class of the exchangeable lamp

A++

Light sharing

Symmetric

Beam angle

Medium beam 21-40°

Over rollable

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Max. load

120 kg

Max. system power

75 W

Colour of light

White

Power factor

1

Shape

Eckig
