Ground recessed spotlight
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. 19% VAT

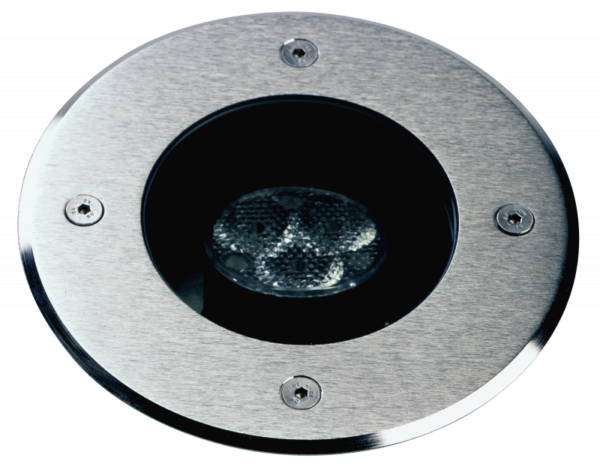

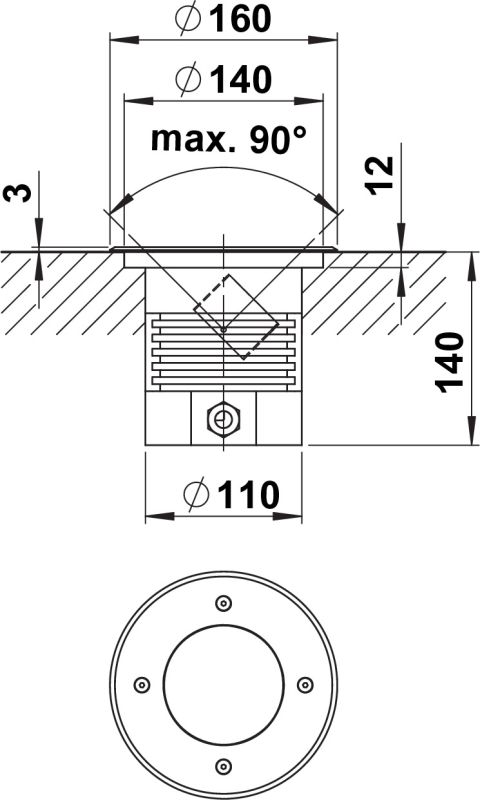

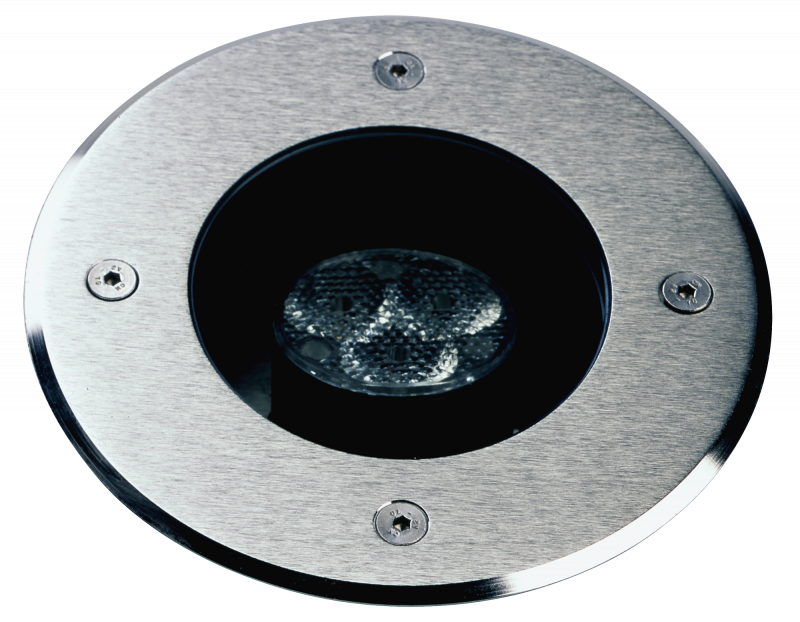

Albert-ground recessed spotlight 692175 – 30 degree swivel – made of stainless steel with round stainless steel cover, safety glass clear. Equipped with 1 x LED 4,5W – light colour white -incl. converter for connection to 230V/50Hz.one metric cable gland M20x1,5 for mains connection cable d 6-12 mm and one blind plug protection class IP 67 – protection class I. For pressure loads up to 1200 kg. Dimensions: d 150 x 140 Glass surface reaches a temperature of max. 35 degrees C.
| 90220315 - G 315, glass / stepped glass ESG | show |
Additional information
| Weight | 3,00 kg |
|---|---|
| Outer diameter | 160 mm |
| With light source | Yes |
| Beam angle | Medium beam 21-40° |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Max. system power | 5 W |
| Rated luminous flux according to IEC 62722-2-1 | 330 lm |
| No dim function | Yes |
| Adjustable | Yes |
| Light distributor | Reflector |
| Light sharing | Symmetric |
| Suitable for number of lamps | 1 |
| Height/depth | 140 mm |
| Built-in height/depth | 140 mm |
| Built-in diameter | 110 mm |
| Protection class | I |
| Suitable for lamp power | 4.5 W |
| Colour housing | Silver |
| Material cover | Glass transparent |
| Voltage type | AC/DC |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| With control gear | Yes |
| Impact strength | IK08 |
| Type of wiring | Suitable for through wiring |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Colour temperature | 4000 K |
| Colour of light | White |
| Height | < 700 mm |
| Exchangeable control gear | Yes |
| Lamp type | LED exchangeable |
| Material housing | Aluminium |
| Load capacity | 0 bis 2000 kg |
| Beam angle adjustable | Continuously variable |
| Max. surface temperature | 35 °C |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.8 |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP67 |
| Max. load | 1200 kg |
| Over rollable | Yes |
| Shape | Eckig |
