Article number 692188

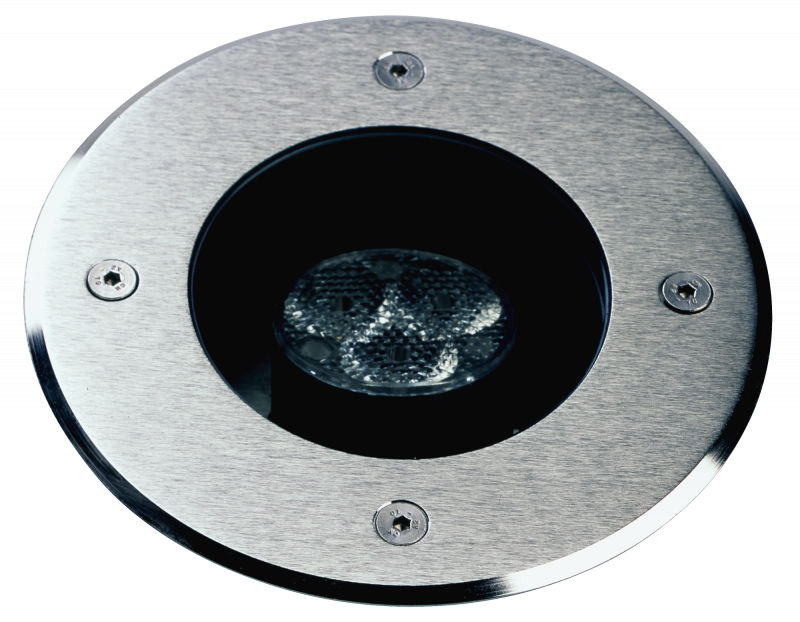

Ground recessed spotlight

type ..2188

305,90

Description

Albert ground recessed spotlight 692188 – 30 degree swivel – made of stainless steel with round stainless steel cover, safety glass clear. Equipped with 1 x LED 4,5W – light colour warm-white -3150 degree K, incl. converter for connection to 230V/50Hz.one metric cable gland M20x1,5 for mains connection cable d 6-12 mm and one blind plug protection class IP 67 – protection class I. For pressure loads up to 1200 kg. Dimensions: d 150 x 140 Glass surface reaches a temperature of max. 35 degrees C.

Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Silver
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
4.5 W
Rated luminous flux according to IEC 62722-2-1
330 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

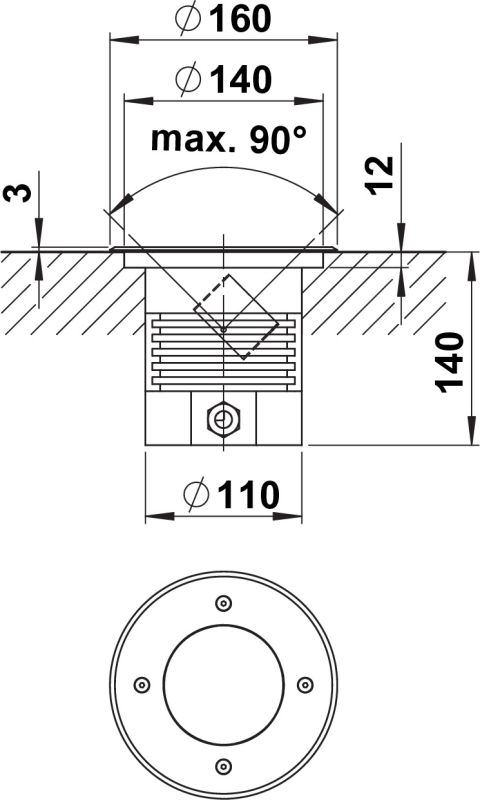

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220315 - G 315, glass / stepped glass ESG show

Additional information

Weight 2.00 kg
Lamp type

LED exchangeable

Rated luminous flux according to IEC 62722-2-1

330 lm

Suitable for number of lamps

1

Colour housing

Silver

Material cover

Glass transparent

Voltage type

AC/DC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

With control gear

Yes

Beam angle

Medium beam 21-40°

Energy efficiency class of the provided exchangeable built-in lamp

E

No dim function

Yes

Adjustable

Yes

Light distributor

Reflector

Light sharing

Symmetric

With light source

Yes

Height/depth

140 mm

Built-in height/depth

140 mm

Built-in diameter

110 mm

Protection class

I

Suitable for lamp power

4.5 W

Max. system power

5 W

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

Power factor

0.8

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

E

Outer diameter

160 mm

Degree of protection (IP)

IP67

Max. load

1200 kg

Over rollable

Yes

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Shape

Eckig

Belastbarkeit

0 bis 2000 kg

Height

< 700 mm

Material housing

Aluminium

Exchangeable control gear

Yes

Impact strength

IK08

Beam angle adjustable

Continuously variable

Max. surface temperature

35 °C
