Data sheet

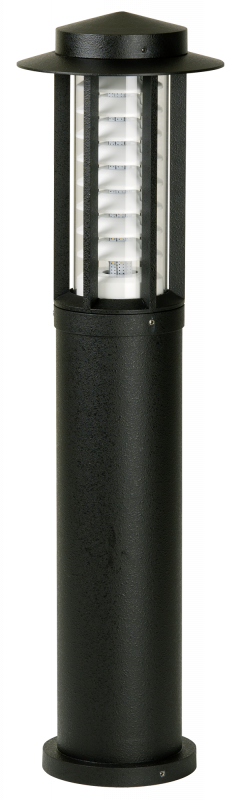

Bollard light Black Product Image Article 662203

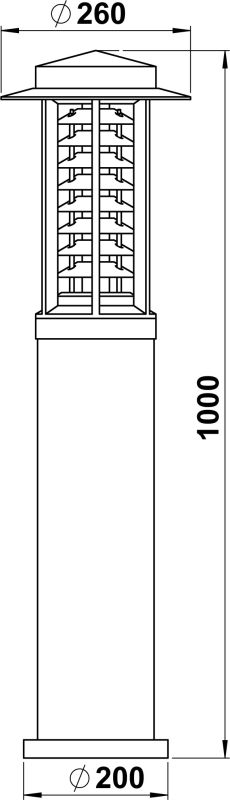

Bollard light Black Dimensioned drawing Article 662203
Bollard light Black Product Image Article 662203
Bollard light Black Dimensioned drawing Article 662203
Article number 662203

Bollard light

type ..2203

€944,60

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert bollard light 662203
made of corrosion-resistant cast aluminium, with highly transparent clear Plexiglas and reflector made of highly specular anodised aluminium,1 x LED 25 W, warm white 3000 K, 2100lm,ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.colour: black – protection class IP 54 – protection class : d 250 x 1000 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
25 W
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction
download PDF 27.59 KB
Dimensioned drawing
download PDF 68.07 KB
Light distribution curve - Eulumdat/LDT
download LDT 1.39 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
10260235 - G-235, acrylic clear 120 x 3, 359 mm show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight 8,30 kg
Light type

Standleuchte
Colour temperature

3000 K
Surface protection

Lacquered
Highest energy efficiency class of the exchangeable lamp

A+
With control gear

Yes
Type of control gear

LED operating device current-controlled
Energy efficiency class of the provided exchangeable built-in lamp

E
Colour of light

White
Protection class

I
Height/depth

1000 mm
Suitable for lamp power

25 W
Lowest energy efficiency class of the exchangeable lamp

E
Conductor cross section

2.5 mm²
Max. system power

25 W
Nominal voltage

230 V
Voltage type

AC/DC
Material cover

Plastic, transparent
Colour housing

Black
With base plate

Yes
Material housing

Aluminium
With light source

Yes
Suitable for number of lamps

1
Lamp type

LED exchangeable
Power factor

0.9
Max. number of luminaires per miniature circuit breaker B16

20
Light sharing

Symmetric
Degree of protection (IP)

IP54
Flickering value Pst LM

1
Type of luminaire

Bollard luminaire
Light output

Direct/indirect
Connection type

Screwed terminal
Stroboscope effect value SVM

0.4
Max. number of luminaires per miniature circuit breaker C16

30
Beam angle

Open beam/diffuse
Light output

2-seitig
Number of poles

3
Type of wiring

Suitable for through wiring
Diameter

260 mm
Colour rendering index CRI

80-89
Height

700 – 1000 mm
Exchangeable control gear

Yes
Shape

Eckig
