Data sheet

Article number 660861

Pole light

Name: Pole light type ..0861
SKU: 660861
Availability: InStock

type ..0861

€1.041,40

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer

Specifications

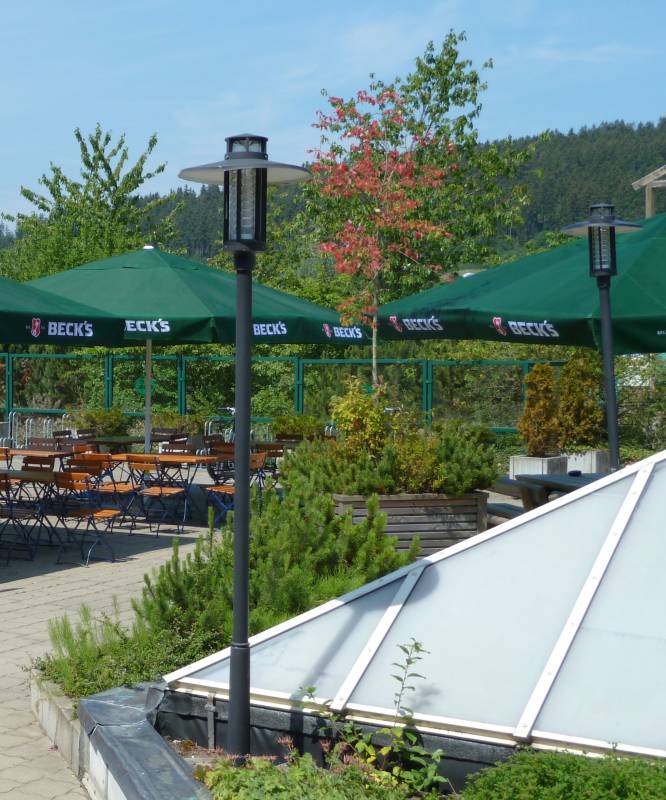

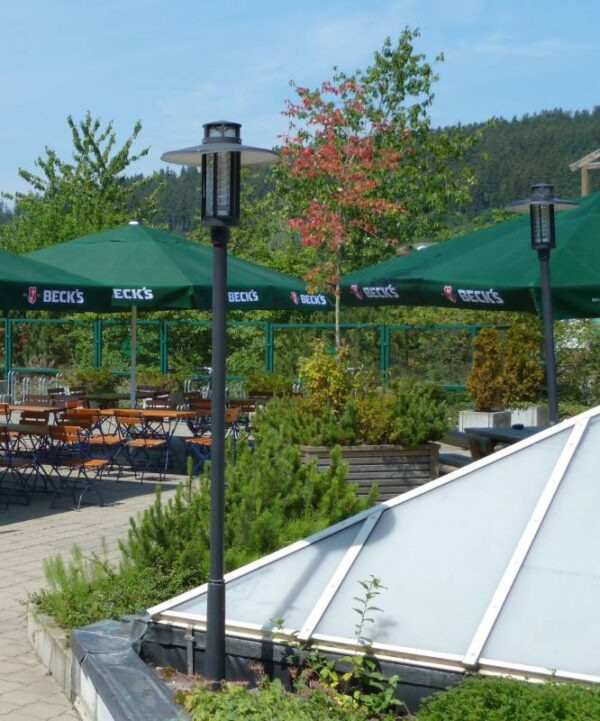

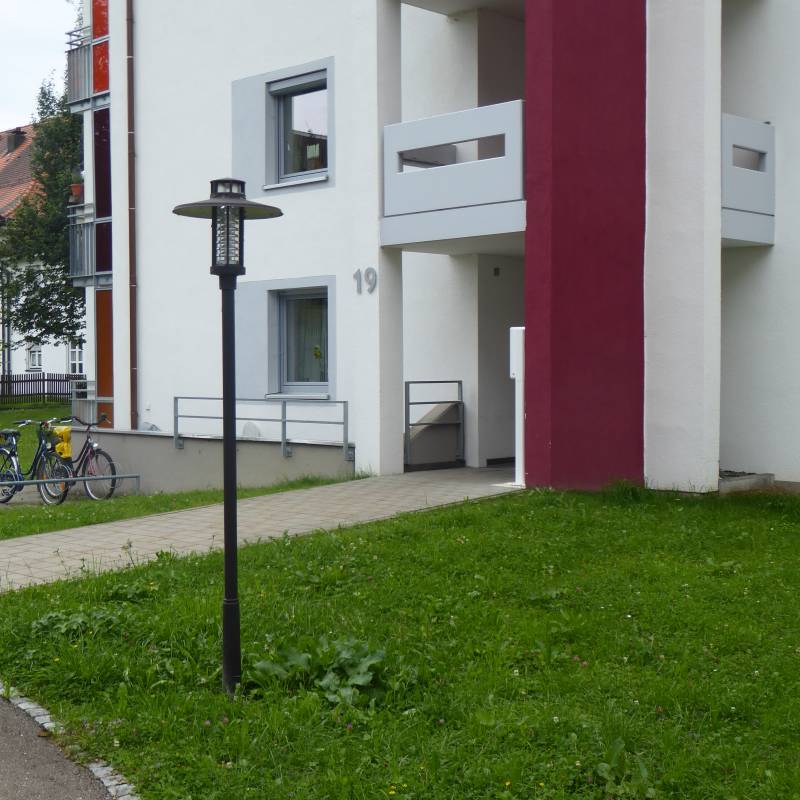

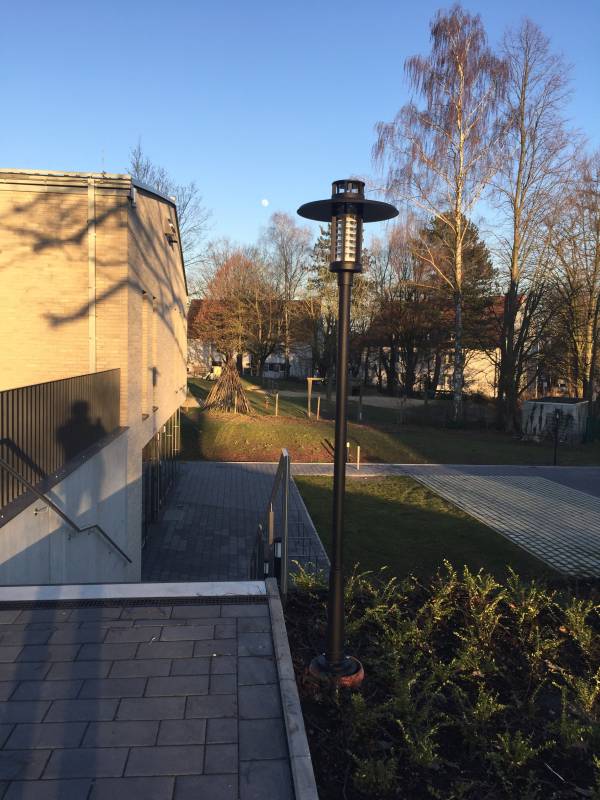

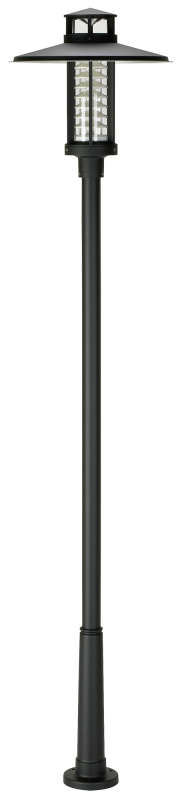

Albert pole light 660861
with sloping roof and skylight attachment, made of corrosion-resistant cast aluminium, with highly transparent clear Plexiglas and reflector made of high-gloss anodised aluminium, 1 x LED 25 W, warm white 3000 K, 2100lm,with pole, ready to be screwed onto a foundation or onto the earth burial base type no. 690011.colour: black – protection class IP 54 – protection class : d 510 x 2400 mm ** ATTENTION: 3 packages ** 1st package: 513 x 60 x 513, 2nd package: 240 x 240x 1610, 3rd package: 225 x 225x 1600

Features

Luminaire can be operated with 230 V, 0/50-60 Hz.

Luminaire has IP 54 protection.

Luminaire is equipped with LED components.

LED components can be replaced.

Material housing

Aluminium

Colour housing

Black

Lamp type

LED exchangeable

With light source

Yes

Suitable for lamp power

28 W

Rated luminous flux according to IEC 62722-2-1

2100 lm

Colour temperature

3000 K

Material cover

Plastic, transparent

Pole included

Weight	12,10 kg
Diameter	510 mm
Exchangeable control gear	Yes
Power factor	0.9
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Connection type	Screwed terminal
Colour of light	White
Energy efficiency class of the provided exchangeable built-in lamp	E
Highest energy efficiency class of the exchangeable lamp	A++
Light type	Standleuchte
Number of poles	3
No dim function	Yes
Light distributor	Reflector
Degree of protection (IP)	IP54
Colour rendering index CRI	80-89
Conductor cross section	2.5 mm²
Colour consistency (McAdam ellipse)	SDCM3
Cable length	0 m
Height	> 1700 mm
Max. system power	28 W
Type of wiring	Suitable for through wiring
With control gear	Yes
Height/depth	2400 mm
Nominal voltage	230 V
Type of control gear	LED operating device current-controlled
Voltage type	AC/DC
Lowest energy efficiency class of the exchangeable lamp	E
Protection class	I
Mounting method	Post top
Suitable for number of lamps	1
Surface protection	Lacquered
Shape	Eckig

Documents and files

Assembly instruction

PDF | 33.97 KB

download

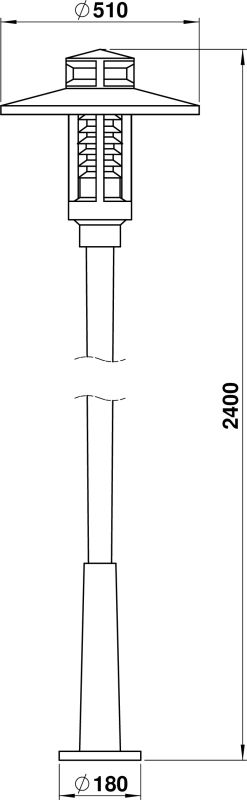

Dimensioned drawing

PDF | 19.68 KB

download

Light distribution curve - Eulumdat/LDT

LDT | 1.39 KB

download

Full catalog 21 / 22

PDF | 38.74 MB

download

Spare parts

10260230 - G-230, acrylic clear 120 x 3, 414 mm show

Accessories

690011 - Earth mounting base type ..0011 show

Additional information

Weight	12,10 kg
Diameter	510 mm
Exchangeable control gear	Yes
Power factor	0.9
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Connection type	Screwed terminal
Colour of light	White
Energy efficiency class of the provided exchangeable built-in lamp	E
Highest energy efficiency class of the exchangeable lamp	A++
Light type	Standleuchte
Number of poles	3
No dim function	Yes
Light distributor	Reflector
Degree of protection (IP)	IP54
Colour rendering index CRI	80-89
Conductor cross section	2.5 mm²
Colour consistency (McAdam ellipse)	SDCM3
Cable length	0 m
Height	> 1700 mm
Max. system power	28 W
Type of wiring	Suitable for through wiring
With control gear	Yes
Height/depth	2400 mm
Nominal voltage	230 V
Type of control gear	LED operating device current-controlled
Voltage type	AC/DC
Lowest energy efficiency class of the exchangeable lamp	E
Protection class	I
Mounting method	Post top
Suitable for number of lamps	1
Surface protection	Lacquered
Shape	Eckig
