Data sheet
Article number 692179

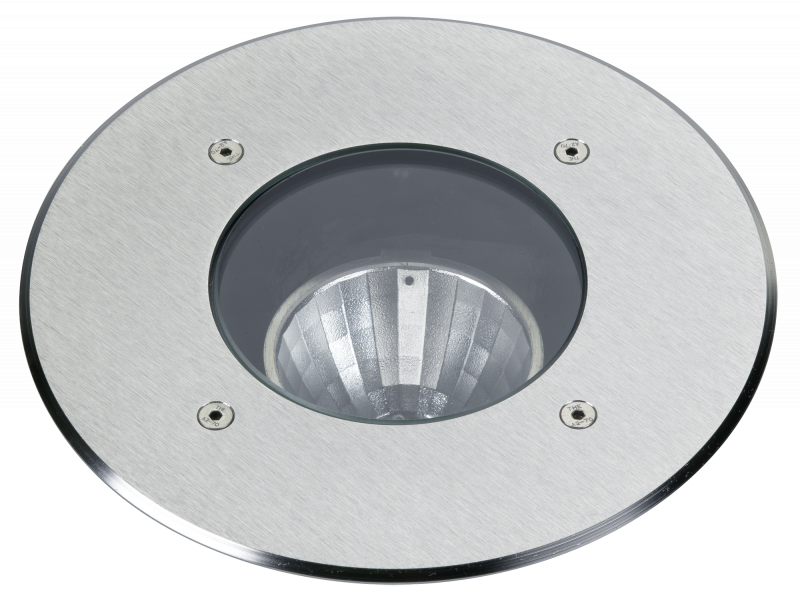

Ground recessed spotlight

type ..2179

This product is no longer in our assortment.
You can find a successor of this product listed below.

Nicht lieferbar

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Specifications

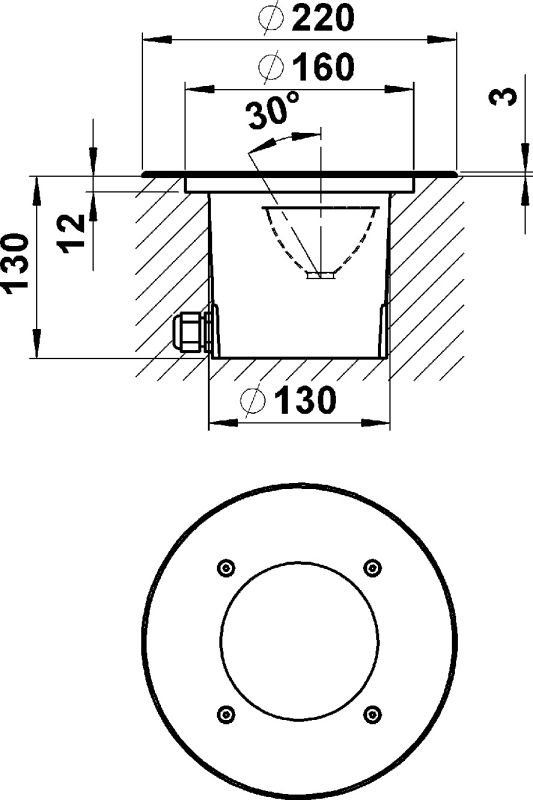

Albert-ground recessed spotlight 692179 – 30 degree swivel – made of cast aluminium with round stainless steel cover, safety glass clear. Equipped for 1 x Bridgelux-LED 10 Watt incl. converter, 770 l. 3000KJe one blind and cable gland for mains connection lines d 6 – 12 IP 67 – protection class I. For pressure loads up to 1000 kg. Dimensions: d 220 x 130 Glass surface reaches a temperature of max. 35 degrees C.

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP67 Product-Icon The luminaire has IP 67 protection.
The luminaire has IP 67 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Silver
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass transparent
Weight 2,40 kg
Outer diameter

220 mm
Beam angle

Medium beam 21-40°
Energy efficiency class of the provided exchangeable built-in lamp

E
Max. system power

12 W
No dim function

Yes
Adjustable

Yes
Light distributor

Reflector
Light sharing

Symmetric
Suitable for number of lamps

1
Height/depth

130 mm
Built-in height/depth

130 mm
Built-in diameter

130 mm
Protection class

I
Voltage type

AC/DC
Nominal voltage

230 V
Type of control gear

LED operating device voltage-controlled
With control gear

Yes
Dimming phase cut-off

Yes
Impact strength

IK08
Type of wiring

Suitable for through wiring
Number of poles

3
Conductor cross section

2.5 mm²
Connection type

Screwed terminal
Colour of light

White
Height

< 700 mm
Exchangeable control gear

Yes
Load capacity

0 bis 2000 kg
Beam angle adjustable

Continuously variable
Max. surface temperature

35 °C
Colour rendering index CRI

80-89
Power factor

0.8
Highest energy efficiency class of the exchangeable lamp

A+
Lowest energy efficiency class of the exchangeable lamp

E
Degree of protection (IP)

IP67
Max. load

1000 kg
Over rollable

Yes
Shape

Eckig
Successor
692326 - Ground recessed spotlight type ..2326 show
Spare parts
90220369 - G 369, single-pane safety glass show
