Data sheet
Article number 692423

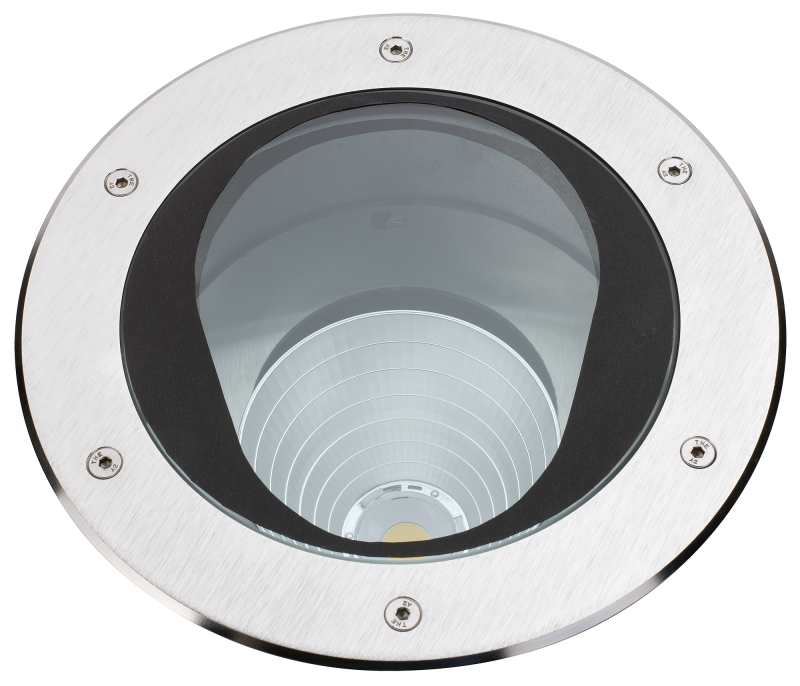

Ground recessed spotlight
type ..2423
€676,80
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Albert-ground recessed spotlight 662423 – 30 degree swivel – made of cast aluminium and stainless steel, safety glass clear. 1 x LED 32W, warm white 3000 K, 4480 IP 67 – protection class I. For pressure loads up to 3000 kg. Dimensions: d 280 x 205 max. 35 degrees C.
Features
The luminaire has IP 67 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Silver
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
29 W
Rated luminous flux according to IEC 62722-2-1
4480 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

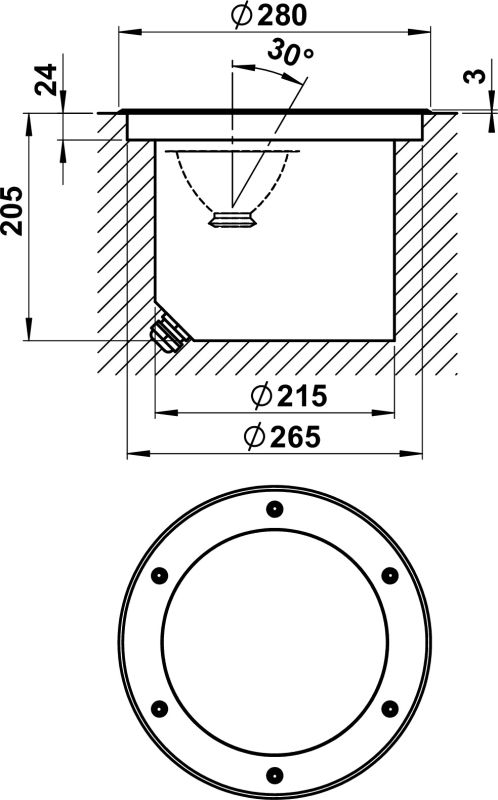

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
| 90220357 - G 357, single-pane safety glass | show |
Additional information
| Weight | 7,50 kg |
|---|---|
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Light sharing | Symmetric |
| Beam angle | Medium beam 21-40° |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Max. system power | 31 W |
| Rated luminous flux according to IEC 62722-2-1 | 4480 lm |
| No dim function | Yes |
| Adjustable | Yes |
| Suitable for number of lamps | 1 |
| Dimming phase cut-off | Yes |
| With light source | Yes |
| Height/depth | 205 mm |
| Built-in height/depth | 205 mm |
| Built-in diameter | 215 mm |
| Protection class | I |
| Suitable for lamp power | 29 W |
| Colour housing | Silver |
| Material cover | Glass transparent |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| With control gear | Yes |
| Light distributor | Reflector |
| Impact strength | IK08 |
| Max. load | 3000 kg |
| Over rollable | Yes |
| Type of wiring | Suitable for through wiring |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Colour temperature | 3000 K |
| Colour of light | White |
| Material housing | Aluminium |
| Lamp type | LED exchangeable |
| Load capacity | > 2000 kg |
| Exchangeable control gear | Yes |
| Beam angle adjustable | Continuously variable |
| Max. surface temperature | 35 °C |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.8 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Outer diameter | 280 mm |
| Degree of protection (IP) | IP67 |
| Height | < 700 mm |
| Shape | Eckig |
