Article number 692422

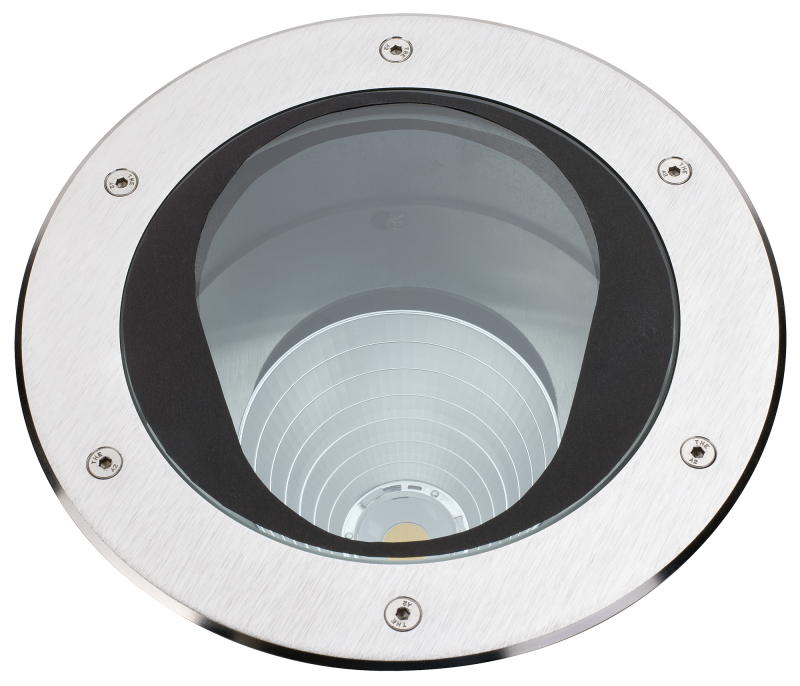

Ground recessed spotlight

type ..2422

467,70

Description

Albert-ground recessed spotlight 662422 – 30 degree swivel – made of cast aluminium and stainless steel, safety glass clear. 1 x LED 16W, warm white 3000 K, 2240 IP 67 – protection class I. For pressure loads up to 3000 kg. Dimensions: d 280 x 205 mm, surface temperature max. 35 degrees C.

Features
Luminaire is equipped with LED components.
LED components can be replaced.
LED components can be replaced by Albert luminaires.
Luminaire is equipped with increased or additional overvoltage protection.
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux acc. IEC 62722-2-1
2240 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

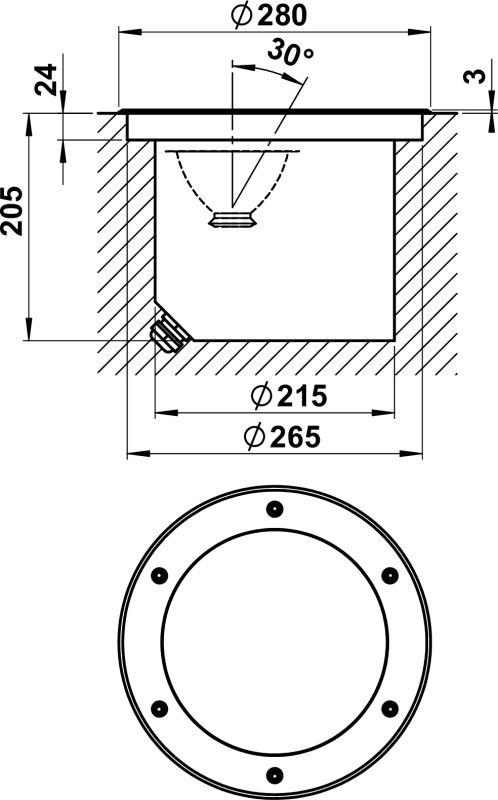

Dimensioned drawing
Light distribution curve
Full catalog 21 / 22
Spare parts
90220357 - G 357, single-pane safety glass show

Additional information

Weight 7.00 kg
Lamp type

LED exchangeable

Suitable for number of lamps

1

Colour housing

Stainless steel

Material cover

Glass transparent

Voltage type

AC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

Control gear included

Yes

Beam angle

Medium beam 21-40°

Energy efficiency class of the provided exchangeable built-in lamp

A+

No dim function

Yes

Adjustable

Yes

Light distributor

Reflector

Light sharing

Symmetric

Dimming phase cut-off

Yes

With light source

Yes

Height/depth

205 mm

Built-in height/depth

205 mm

Built-in diameter

215 mm

Protection class

I

Suitable for lamp power

16 W

Max. system power

17 W

Rated luminous flux acc. IEC 62722-2-1

2240 lm

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

Power factor

0.8

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

A+

Outer diameter

280 mm

Degree of protection (IP)

IP67

Max. load

3000 kg

Over rollable

Yes

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Rated life time L80/B50 at 25 °C

50000 h

Shape

Eckig

Belastbarkeit

> 2000 kg

Height

< 700 mm
