Article number 696278

Wall light

type ..6278

239,90

Description

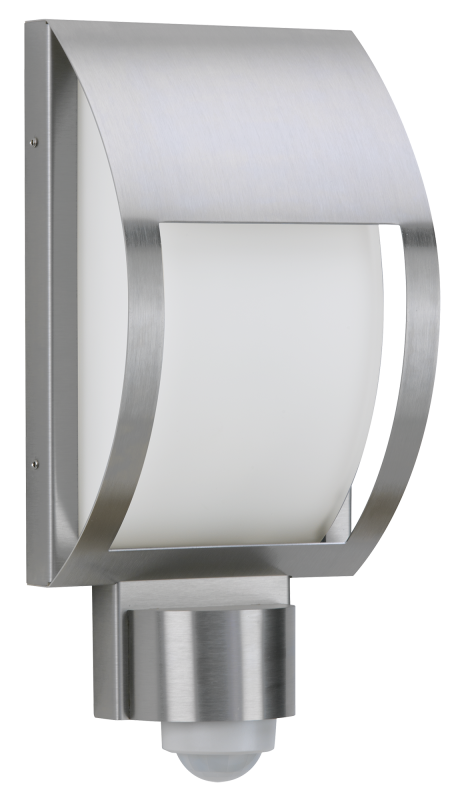

Albert wall light 696278 – with integrated motion detector –
in stainless steel with opal glass, with separate mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75 W, socket E27.protection class IP 44 – protection class : 180 x 375 x 105 mm

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

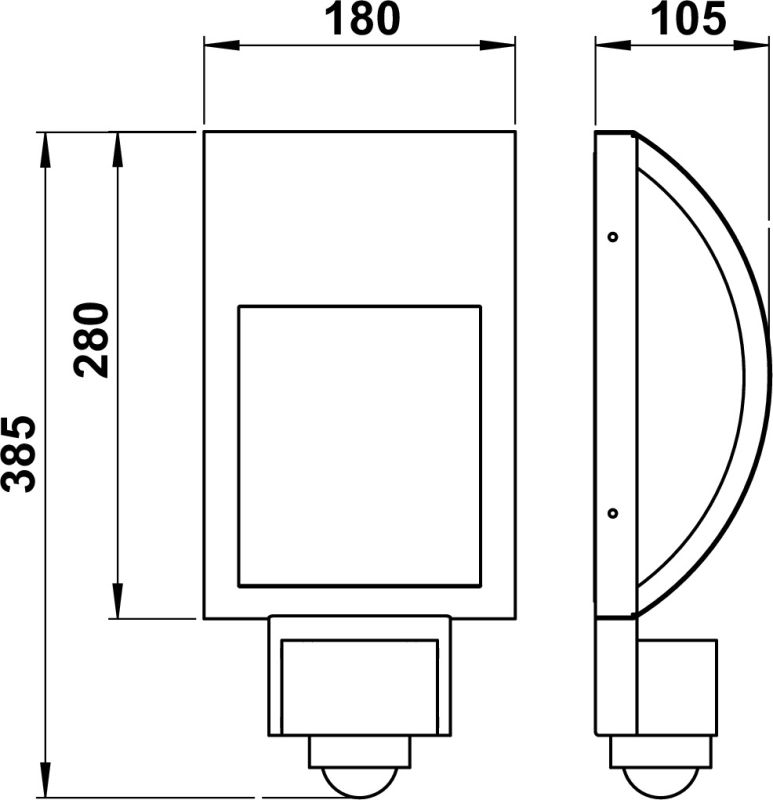

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210154 - G 154, glass opal matt show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight 2,70 kg
Unified Glare Ratio (UGR)

1

Material housing

Stainless steel

Dimming phase cut-off

Yes

Dimming manufacturer's proprietary system

Yes

Degree of protection (IP)

IP44

Suitable for surface mounting

Yes

With movement sensor

Yes

Suitable for number of lamps

1

Suitable for lamp power

1 – 75 W

Colour housing

Stainless steel

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Lamp holder

E27

Light sharing

Symmetric

Power factor

1

Max. system power

75 W

Width

180 mm

Height/depth

385 mm

Protection class

I

Style

Edelstahl, Modern

Number of poles

3

Dimming depending on control gear

Yes

No dim function

Yes

With light sensor

Yes

Suitable for wall mounting

Yes

Type of wiring

Ending

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Connection type

Screwed terminal

Coverage

360 °

Light output

1-seitig

Length

105 mm

Light output

Direct

Beam angle

Open beam/diffuse

Surface protection housing

Untreated

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Conductor cross section

2.5 mm²

Light type

Wandleuchte

Dimming phase cut-on

Yes

Photobiological safety according to EN 62471

RG1

Mounting Type

Wand

Height

< 700 mm

Shape

Eckig
