Article number 696003

House number light

type ..6003

This product is no longer in our assortment.

Nicht lieferbar

Description

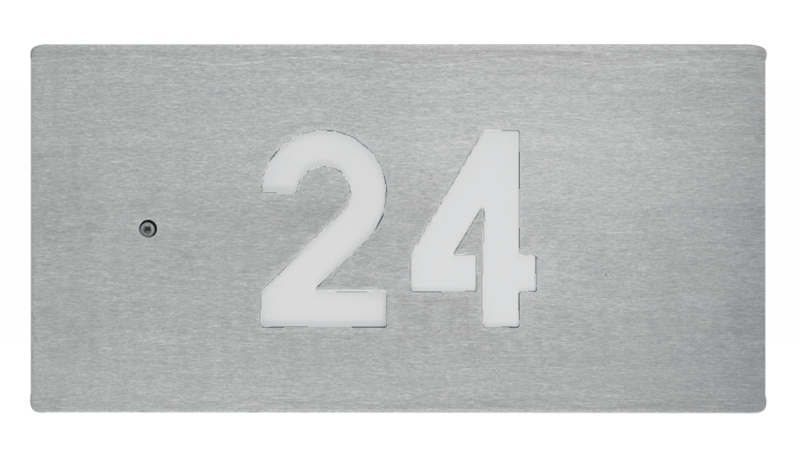

Albert house number light 696003 made of stainless steel with opal glass backing, with integrated twilight switch, according to specification with 1-3 digit numbers. Equipped for one fluorescent lamp TC- 5/7 Watt, socket G 23.Dimensions: 300 x 150 x 70 mm

Features
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
With light sensor
Yes
Lamp type
Compact fluorescent lamp
Lamp holder
G23
Suitable for lamp power
7 W
Material cover
Glass opal
Documents and files
Assembly instruction

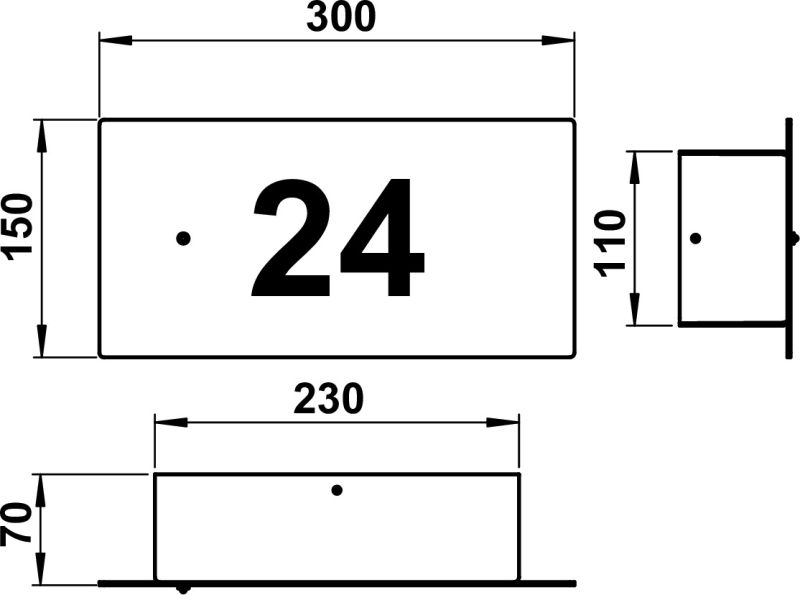

Dimensioned drawing
Full catalog 21 / 22
Spare parts
90220296 - G 296, milk flashed glass show

Additional information

Weight 1,94 kg
Light output

1-seitig

Lamp type

Compact fluorescent lamp

Suitable for number of lamps

1

Lamp holder

G23

Material housing

Stainless steel

Colour housing

Stainless steel

Nominal voltage

230 V

With control gear

Yes

Type of control gear

Low-loss ballast inductive

Voltage type

AC

Suitable for surface mounting

Yes

Suitable for lamp power

7 W

Max. system power

7 W

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Degree of protection (IP)

IP44

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Material cover

Glass opal

Type of wiring

Ending

Dimming depending on control gear

Yes

No dim function

Yes

Width

300 mm

Height/depth

150 mm

Surface protection housing

Untreated

Unified Glare Ratio (UGR)

1

Highest energy efficiency class of the exchangeable lamp

A++

Connection type

Screwed terminal

Mounting Type

Wand

Suitable for wall mounting

Yes

Conductor cross section

2.5 mm²

Protection class

I

Power factor

1

Exchangeable control gear

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Photobiological safety according to EN 62471

RG1

With light sensor

Yes

Length

70 mm

Height

< 700 mm

Number of poles

3

Shape

Eckig
