Data sheet
Article number
Select a color, please

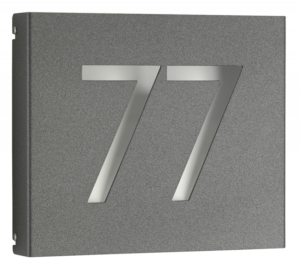

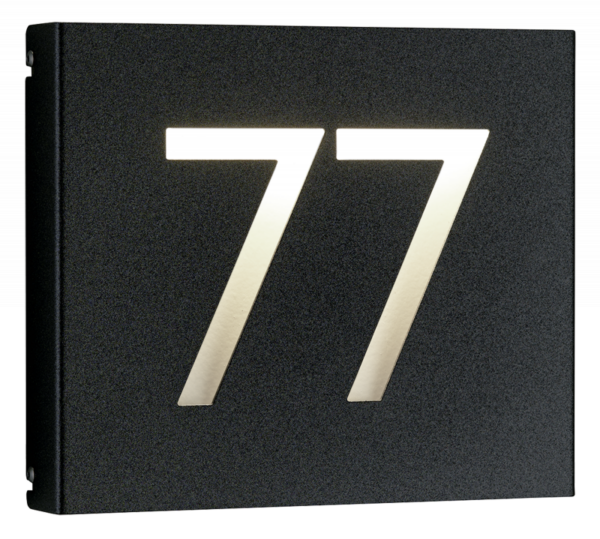

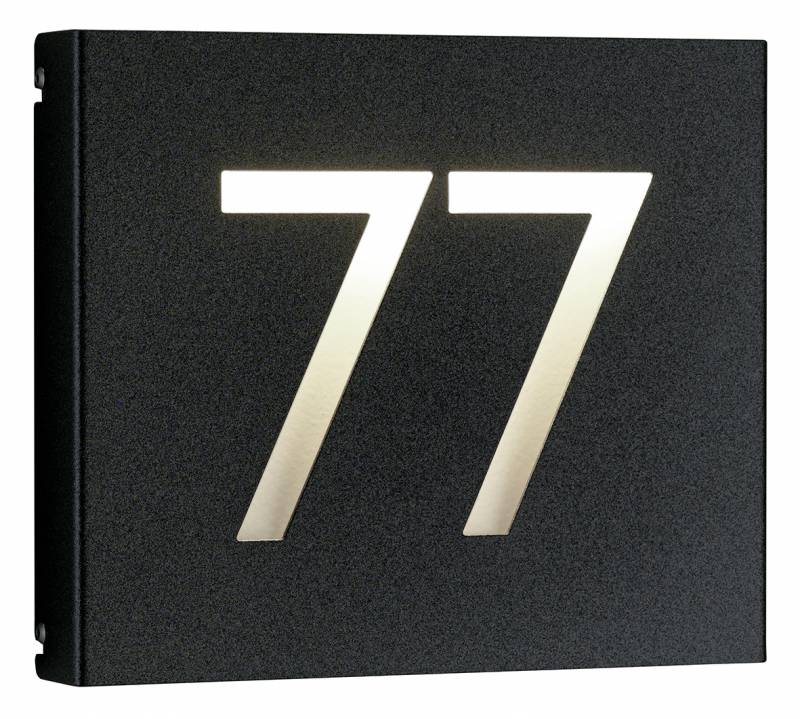

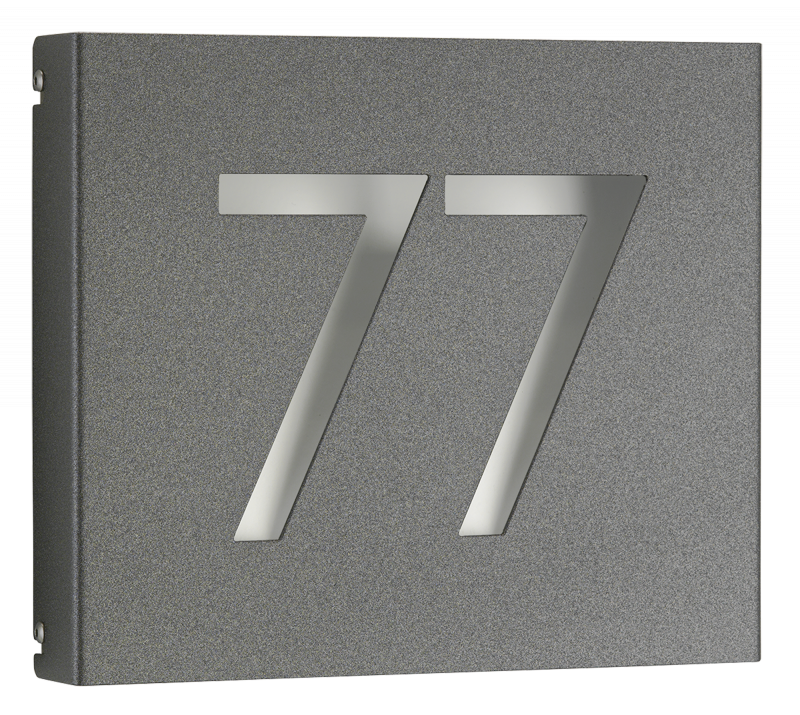

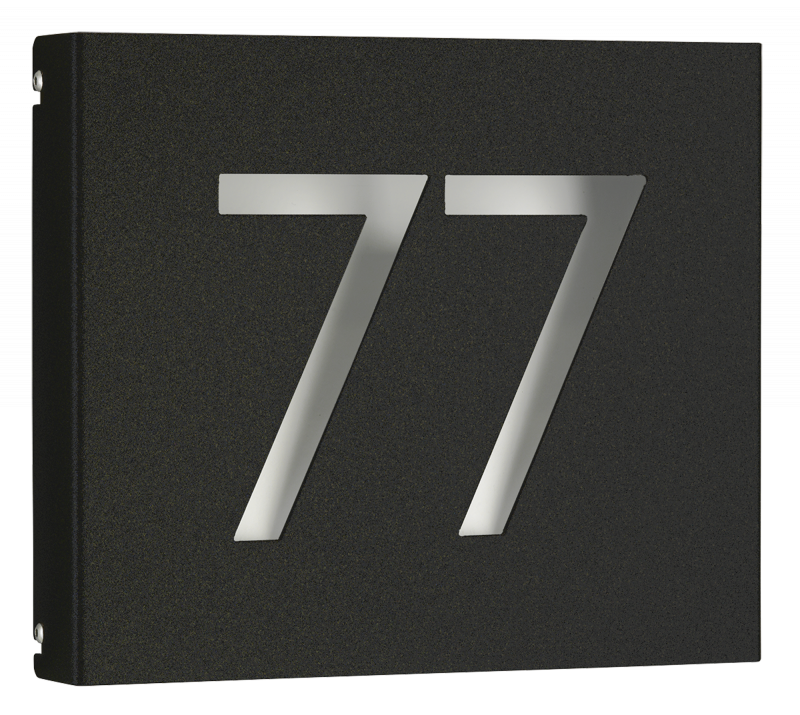

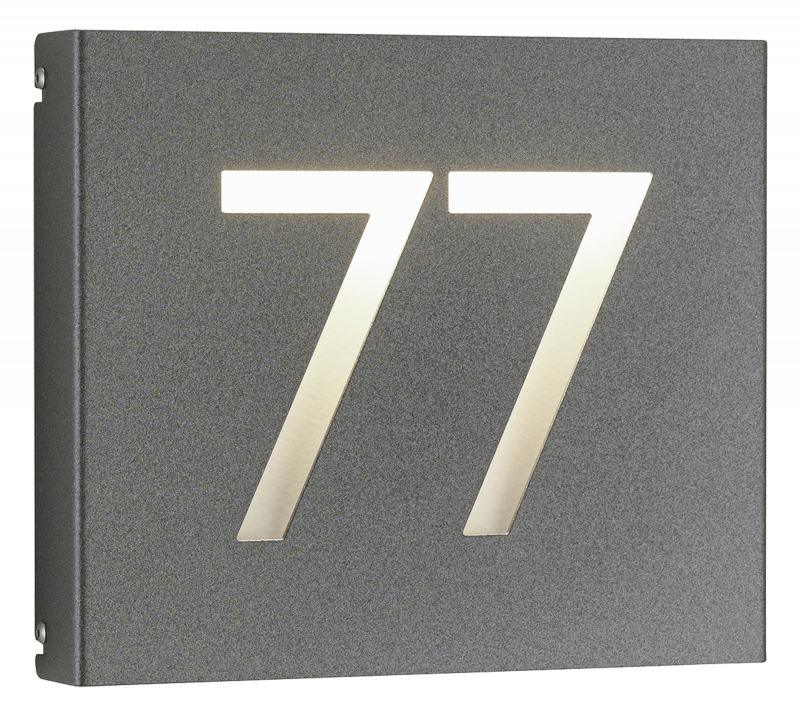

House number light
type ..6004
€280,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Anthracite, Black
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
2 W
Rated luminous flux according to IEC 62722-2-1
120 lm
Colour temperature
3000 K
Material cover
Without cover
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Surface protection housing | Untreated |
| Light outlet | 1-seitig |
| Mounting method | Wand |
| Shape | Eckig |

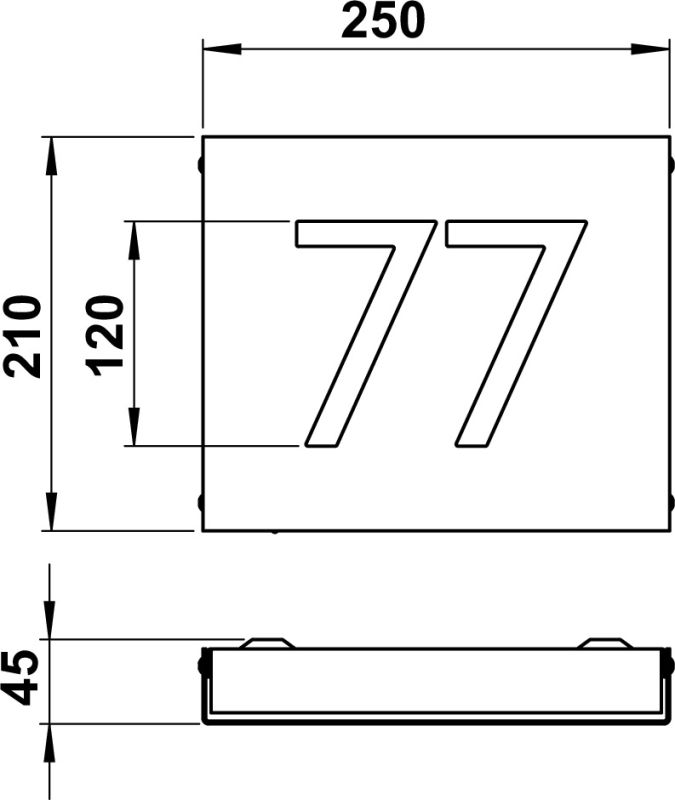

| Height/depth | 210 mm |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Nominal voltage | 230 V |
| Max. system power | 2 W |
| Dimming depending on control gear | Yes |
| Type of wiring | Ending |
| Colour rendering index CRI | 80-89 |
| Width | 250 mm |
| Height | < 700 mm |
| Length | 40 mm |
| Colour of light | White |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Stroboscope effect value SVM | 0.4 |
| Exchangeable control gear | Yes |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Style | Edelstahl, Modern |
| Type of control gear | LED operating device voltage-controlled |
| Voltage type | AC |
| With control gear | Yes |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Degree of protection (IP) | IP44 |
| Light sharing | Symmetric |
| Light outlet | Direct |
| No dim function | Yes |
| Power factor | 0.9 |
| Protection class | I |
| Beam angle | Open beam/diffuse |
Documents and files
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Surface protection housing | Untreated |
| Light outlet | 1-seitig |
| Mounting method | Wand |
| Shape | Eckig |
| Height/depth | 210 mm |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Nominal voltage | 230 V |
| Max. system power | 2 W |
| Dimming depending on control gear | Yes |
| Type of wiring | Ending |
| Colour rendering index CRI | 80-89 |
| Width | 250 mm |
| Height | < 700 mm |
| Length | 40 mm |
| Colour of light | White |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Stroboscope effect value SVM | 0.4 |
| Exchangeable control gear | Yes |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Style | Edelstahl, Modern |
| Type of control gear | LED operating device voltage-controlled |
| Voltage type | AC |
| With control gear | Yes |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Degree of protection (IP) | IP44 |
| Light sharing | Symmetric |
| Light outlet | Direct |
| No dim function | Yes |
| Power factor | 0.9 |
| Protection class | I |
| Beam angle | Open beam/diffuse |
