Article number Select a color, please

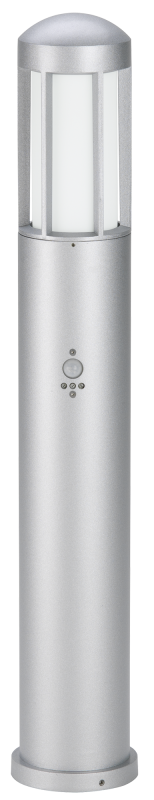

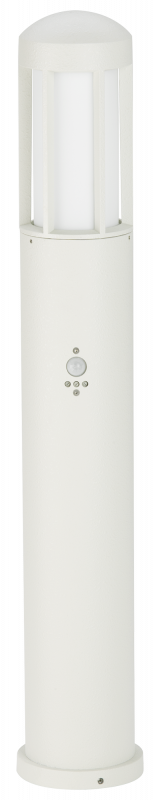

Bollard light

type ..2009

432,00497,00

Clear
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

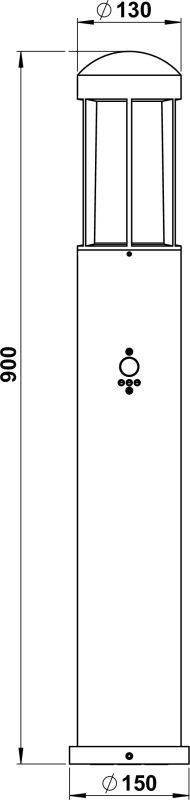

Dimensioned drawing
Instruction manual Sensor
Light distribution curve
Offertext
For: 662009
Offertext
For: 682009
Offertext
For: 692009
Full catalog 21 / 22
Spare parts
90210281 - G 281, opal glass matt show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Highest energy efficiency class of the exchangeable lamp

A++

With light sensor

Yes

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Colour housing

Black, Silver, White

Material cover

Glass opal

Surface protection

Lacquered

Material housing

Aluminium

Lamp holder

E27

Suitable for number of lamps

1

Lamp type

HV halogen lamp, Incandescent lamp

With movement sensor

Yes

With base plate

Yes

Power factor

1

Width

150 mm

Shape

Eckig

Light type

Standleuchte

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Type of wiring

Suitable for through wiring

Diameter

130 mm

Lowest energy efficiency class of the exchangeable lamp

A

Height/depth

900 mm

Coverage

90 °

Max. system power

75 W

Suitable for lamp power

1 – 75 W

Protection class

I

Degree of protection (IP)

IP44

Height

700 – 1000 mm

Style

Modern
