Article number Select a color, please

Bollard light

type ..2221

345,60397,40

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Type of luminaire

Bollard luminaire

Highest energy efficiency class of the exchangeable lamp

A++

Nominal voltage

230 V

Voltage type

AC

Type of control gear

Not required

With base plate

Yes

Type of wiring

Suitable for through wiring

Surface protection

Lacquered

Height/depth

900 mm

Connection type

Screwed terminal

Power factor

1

Width

150 mm

Lowest energy efficiency class of the exchangeable lamp

E

Diameter

130 mm

Suitable for number of lamps

1

Light sharing

Symmetric

Conductor cross section

2.5 mm²

Light type

Standleuchte

Height

700 – 1000 mm

Protection class

I

Max. system power

75 W

Style

Modern

Number of poles

3

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Degree of protection (IP)

IP44

Shape

Eckig

Light output

2-seitig

Documents and files
Data sheet
Assembly instruction
PDF | 28 KB

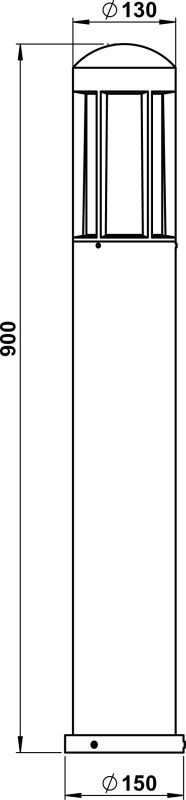

Dimensioned drawing
PDF | 91 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 662221
TXT | 327 B
Offertext
For: 682221
TXT | 328 B
Offertext
For: 692221
TXT | 292 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210281 - G 281, opal glass matt show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show
