Article number 90752292

LED Licht 10 W / 1000 lm

204,20

Specifications

LED Licht 10 W bei 3000 K – 1000 lm, austauschbar, IP 65, 120 x 120 x 40 mm

Features
IP65 Product-Icon Luminaire has IP 65 protection.
Luminaire has IP 65 protection.
Colour
White
Colour housing
Colourless
Colour temperature
3000 K
Weight 0,10 kg
Nominal voltage

230 V

Colour consistency (McAdam ellipse)

SDCM6

Lamp efficacy

80 lm/W

Colour rendering index CRI

80-89

Type of glass/cover

Opal

Colour of light according to EN 12464-1

Warm white

Beam angle

360 °

Lamp power

10 W

Voltage type

AC

Luminous flux

1000 lm

Rated luminous flux according to IEC 62612

1000 lm

Power factor

0.9

Average nominal lifespan

15000 h

Energy efficiency class

E

Min. number of switching cycles

100000

Weighted energy consumption in 1000 hours

2 kWh

Diameter

120 mm

Length

120 mm

Degree of protection (IP)

IP65

Energy Efficiency Index (EEI)

0.9

Shape

Eckig

Documents and files
Data sheet
Light distribution curve - Eulumdat/LDT
LDT | 11 KB
Full catalog 21 / 22
PDF | 39 MB
Compatible with

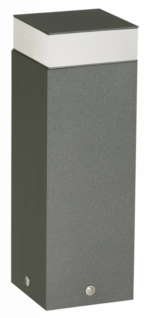

622292 - Bollard light type ..2292, Anthracite show
662292 - Bollard light type ..2292, Black show
