Article number Select a color, please

Bollard light

type ..2293

432,50497,30

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W, 6 W
Rated luminous flux according to IEC 62722-2-1
1000 lm, 700 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

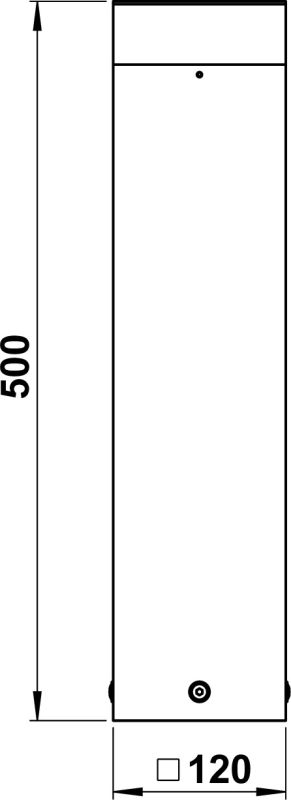

Dimensioned drawing
Offertext
For: 622293
Offertext
For: 662293
Full catalog 21 / 22
Spare parts
90754407 - LED orientation light, 2 W, 3000 K show
Accessories
690010 - Earth mounting base type ..0010 show

Additional information

Weight N/A
Type of luminaire

Pedestal luminaire

Energy efficiency class of the provided exchangeable built-in lamp

E

Highest energy efficiency class of the exchangeable lamp

A+

With base plate

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP54

Impact strength

IK08

Protection class

I

Suitable for lamp power

10 W, 6 W

With light source

Yes

Lamp type

LED exchangeable

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Anthracite, Black

Material cover

Plastic, transparent

Voltage type

AC

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

With control gear

Yes

Exchangeable control gear

Yes

Height/depth

500 mm

Max. number of luminaires per miniature circuit breaker C16

30

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Max. number of luminaires per miniature circuit breaker B16

20

Max. system power

10 W, 6 W

Light sharing

Symmetric

Rated luminous flux according to IEC 62722-2-1

1000 lm, 700 lm

Beam angle

Open beam/diffuse

Colour of light

White

Colour temperature

3000 K

Connection type

Screwed terminal

Power factor

0.9

Flickering value Pst LM

1

Height

< 700 mm

Stroboscope effect value SVM

0.4

Width

120 mm

Light output

Indirect

Length

120 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Shape

Eckig
