Data sheet
Article number
Select a color, please

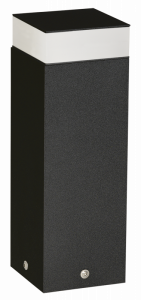

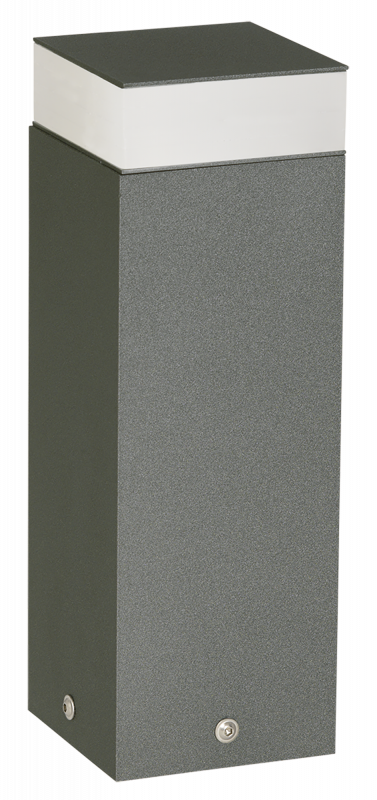

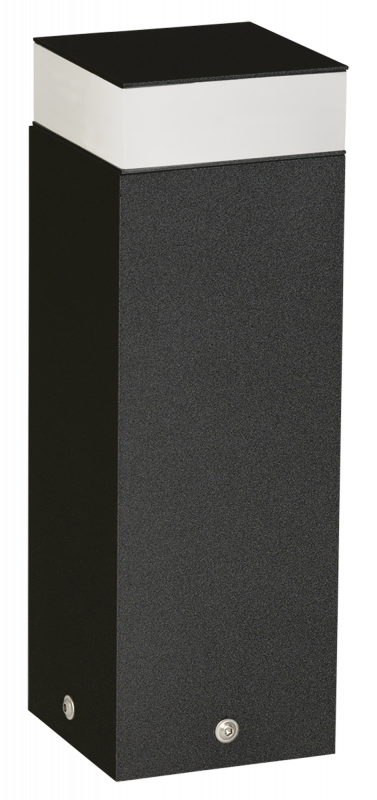

Bollard light
type ..2292
€398,30 – €458,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W, 6 W
Rated luminous flux according to IEC 62722-2-1
1000 lm, 700 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

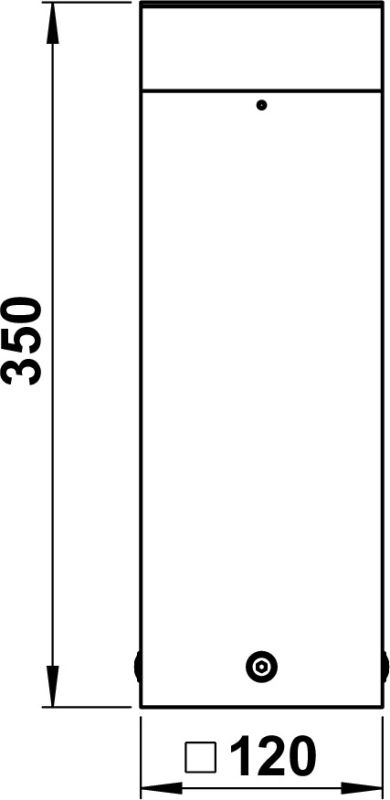

Dimensioned drawing
Offertext
For: 622292
Offertext
For: 662292
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Type of luminaire | Pedestal luminaire |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Suitable for lamp power | 10 W, 6 W |
| Lamp type | LED exchangeable |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Material housing | Aluminium |
| Surface protection | Lacquered |
| Colour housing | Anthracite, Black |
| Material cover | Plastic, transparent |
| Type of control gear | LED operating device voltage-controlled |
| Voltage type | AC |
| Nominal voltage | 230 V |
| With control gear | Yes |
| Exchangeable control gear | Yes |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Max. system power | 10 W, 6 W |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Degree of protection (IP) | IP54 |
| Impact strength | IK08 |
| Protection class | I |
| Light sharing | Symmetric |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Width | 120 mm |
| Rated luminous flux according to IEC 62722-2-1 | 1000 lm, 700 lm |
| Beam angle | Open beam/diffuse |
| Colour of light | White |
| Colour temperature | 3000 K |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.9 |
| Height | < 700 mm |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Light output | Indirect |
| Length | 120 mm |
| Type of wiring | Suitable for through wiring |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| With base plate | Yes |
| Height/depth | 350 mm |
| Connection type | Screwed terminal |
| Shape | Eckig |
