Article number Select a color, please

Light column 180 degrees asymmetrical

type ..0868

1.916,502.254,60

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
DALI control Product-Icon Luminaire can be supplied for DALI control.
Luminaire can be supplied for DALI control.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Amber LED possible Product-Icon Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
28 W
Rated luminous flux according to IEC 62722-2-1
3000 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Weight N/A
Mounting Type

Post top

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Surface protection

Lacquered

Light distributor

Refractor lens

Nominal voltage

230 V

Voltage type

AC/DC

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

Yes

Dimming 0-10 V

Yes

Dimming phase cut-on

No, Yes

Power factor

0.9

Energy efficiency class of the provided exchangeable built-in lamp

E

Dimming DALI

Yes

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Degree of protection (IP)

IP54

Cable length

0 m

Max. system power

28 W

Light type

Standleuchte

Connection type

Screwed terminal

Height/depth

3500 mm

Colour of light

White

Highest energy efficiency class of the exchangeable lamp

A+

Height

> 1700 mm

Lowest energy efficiency class of the exchangeable lamp

E

Width

150 mm

Colour consistency (McAdam ellipse)

SDCM3

Length

150 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Colour rendering index CRI

80-89

Conductor cross section

2.5 mm²

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 71 KB

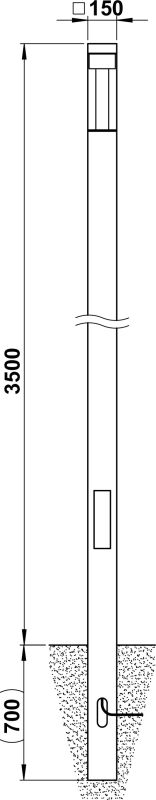

Dimensioned drawing
PDF | 124 KB
Light distribution curve - Eulumdat/LDT
LDT | 128 KB
Offertext
For: 620868
TXT | 255 B
Offertext
For: 660868
TXT | 250 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90270473 - G-473, acrylic, 150 x 150 x 3 mm, 395 mm show
