Article number Select a color, please

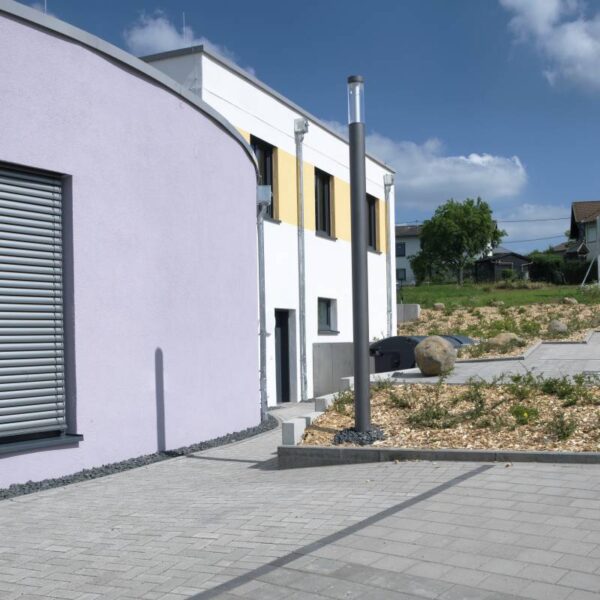

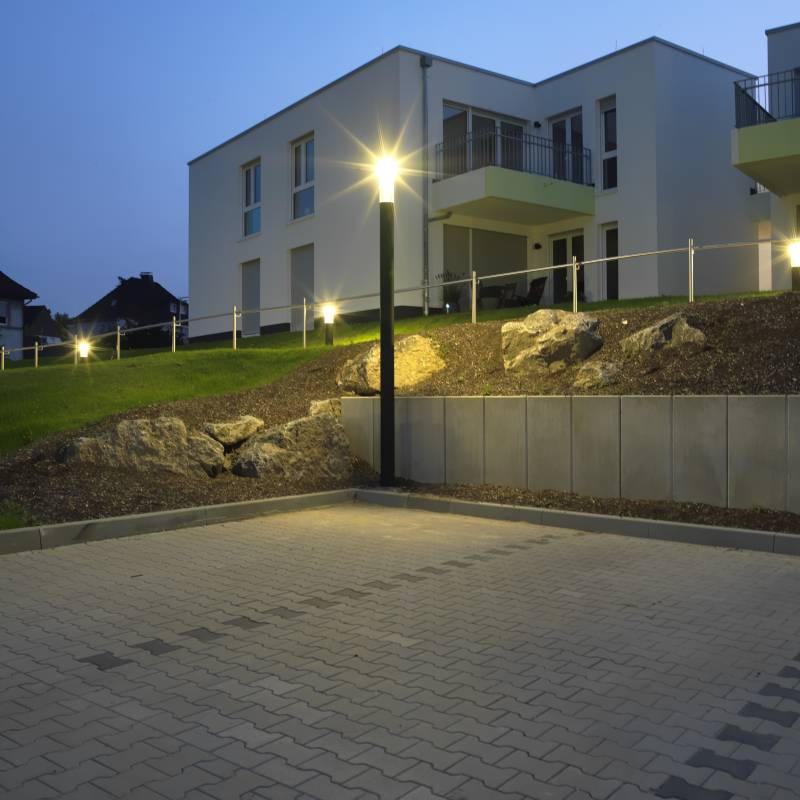

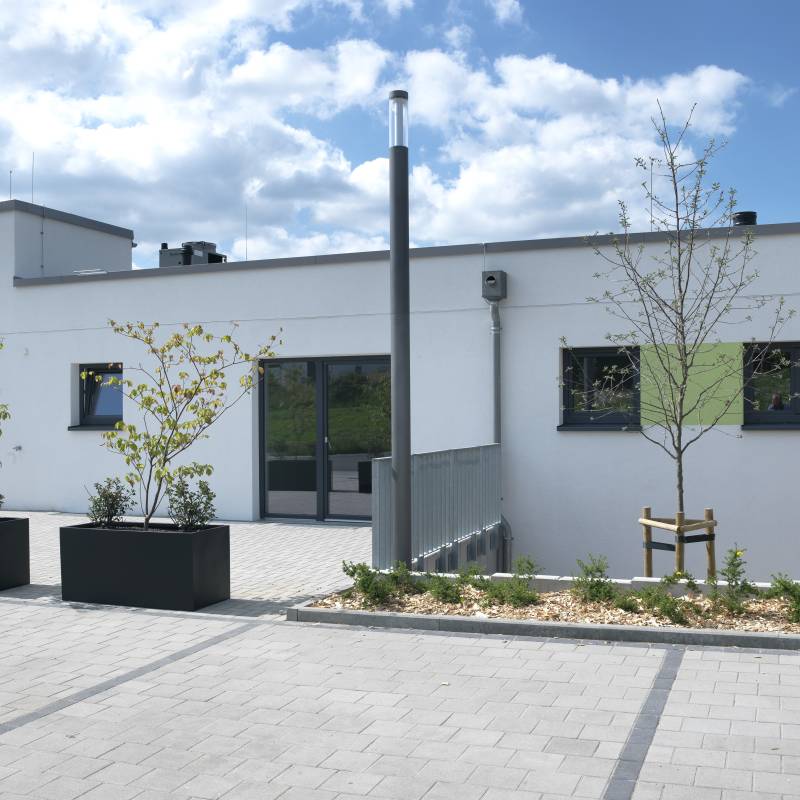

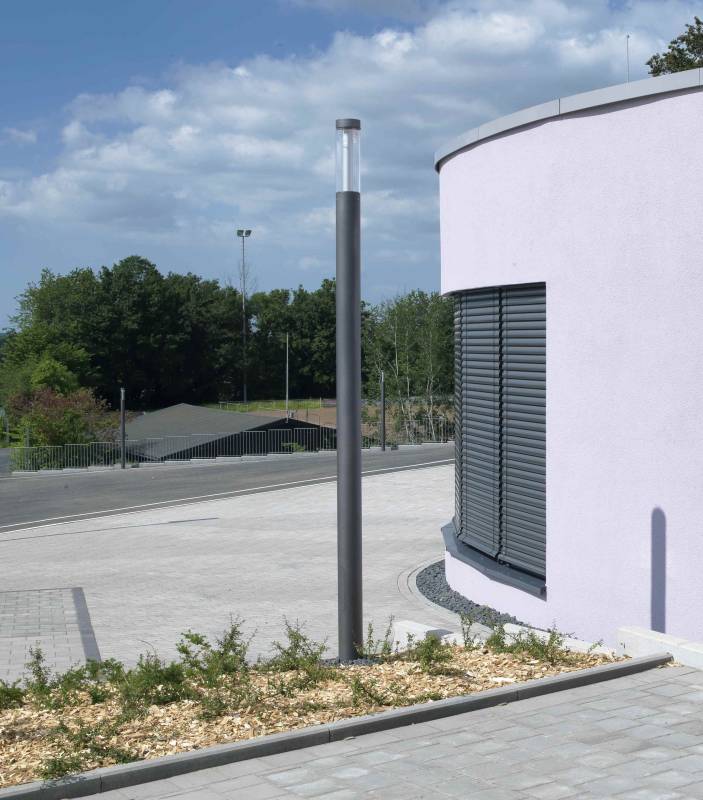

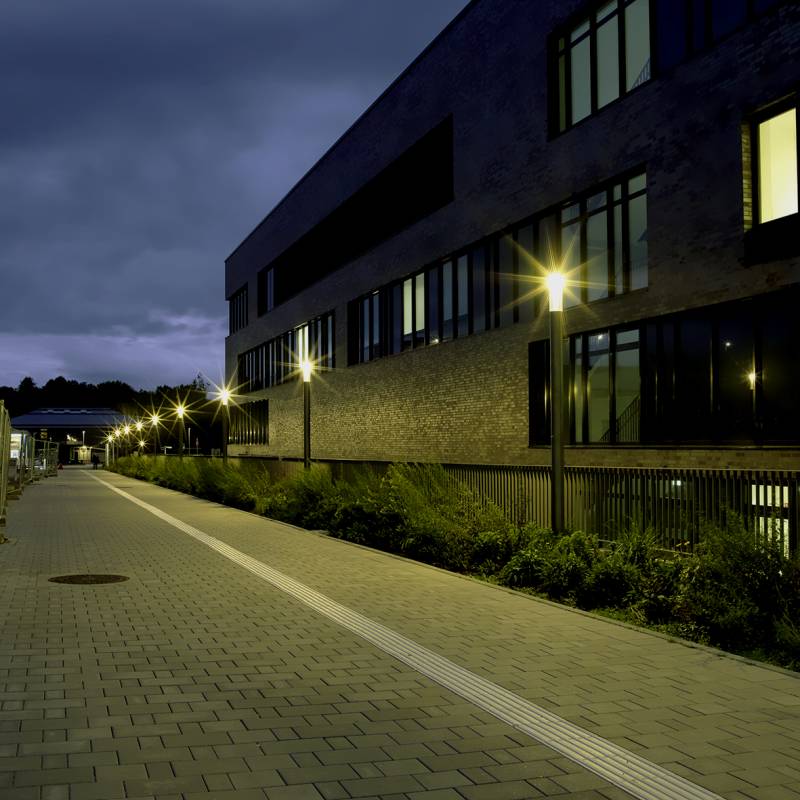

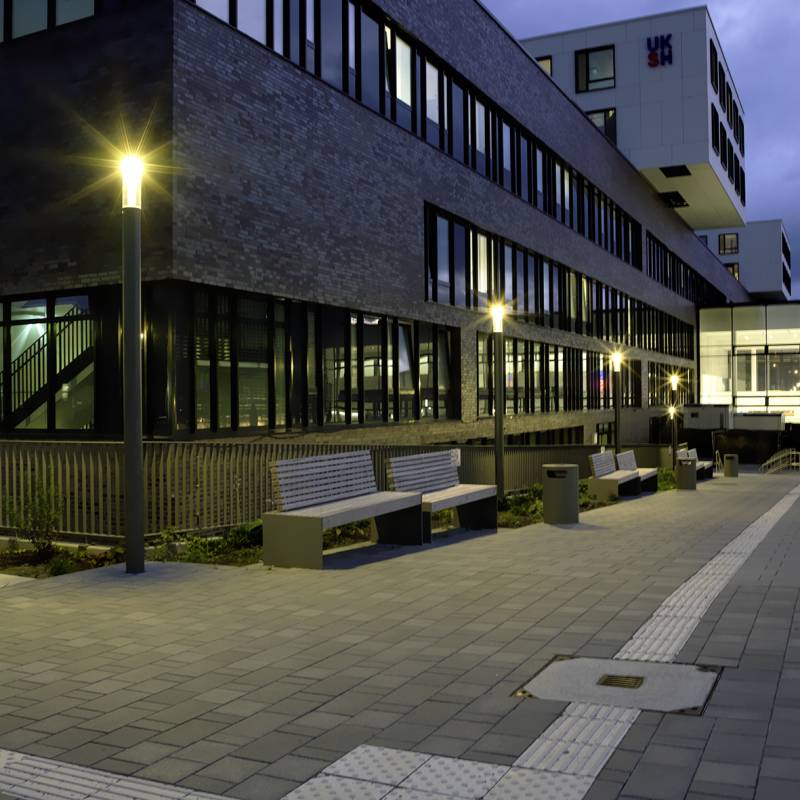

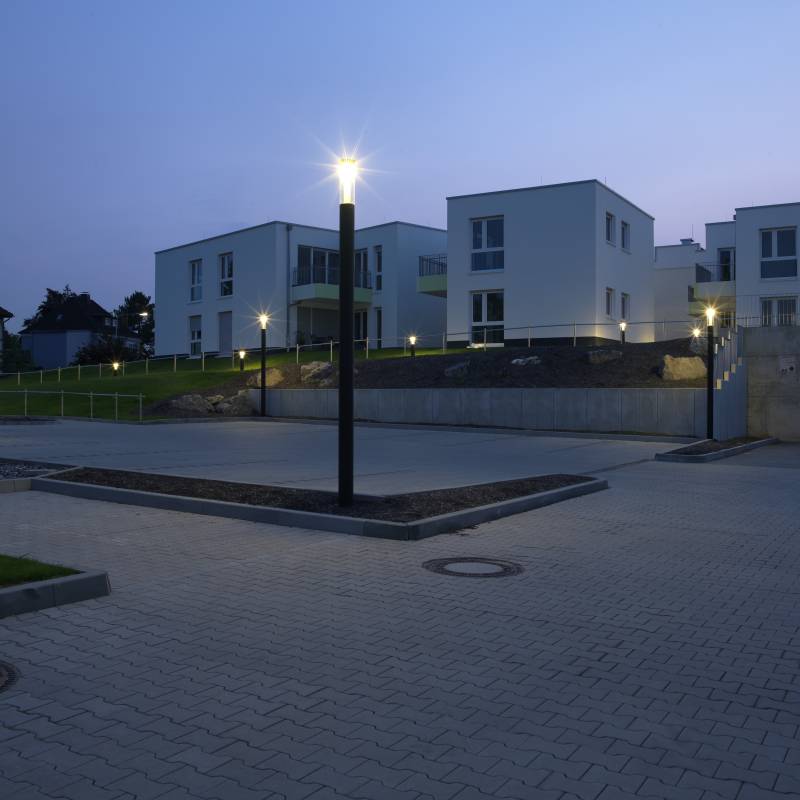

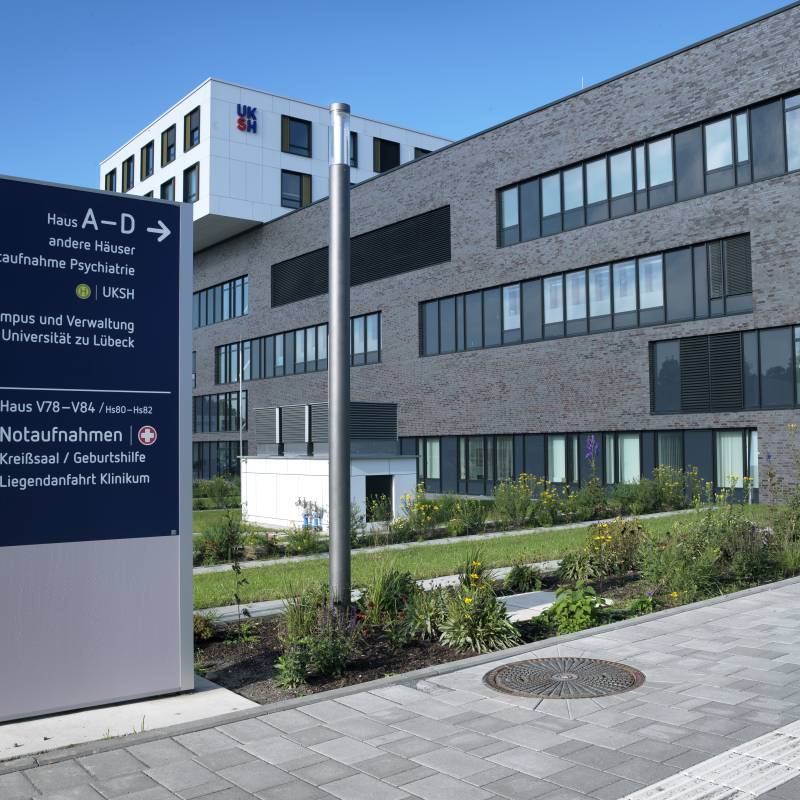

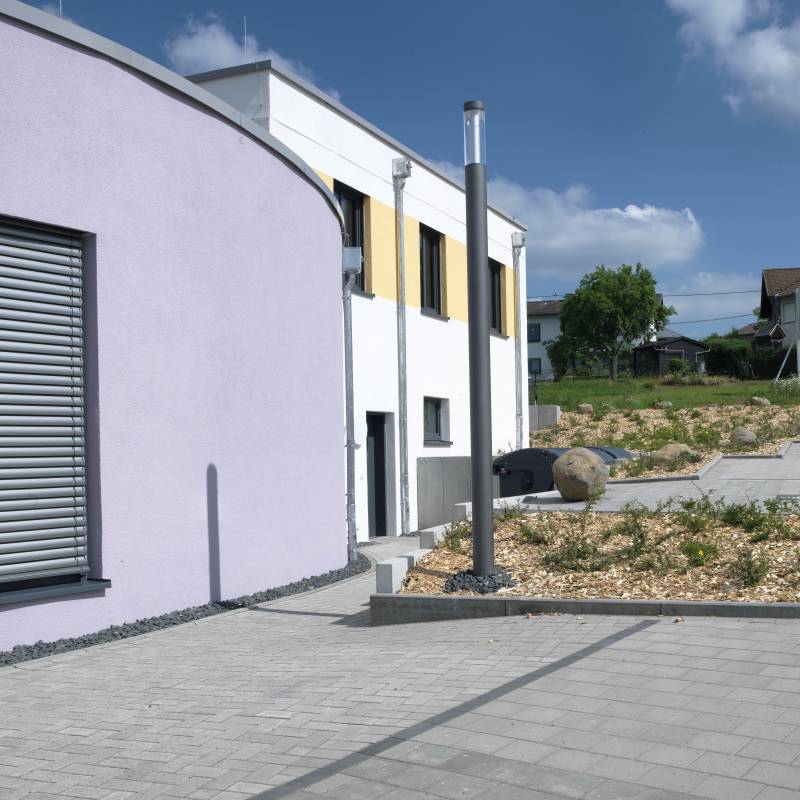

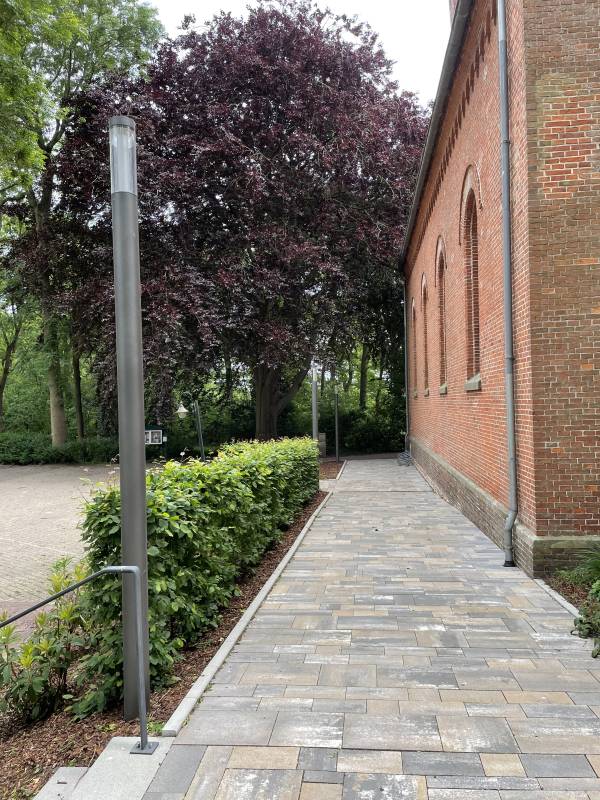

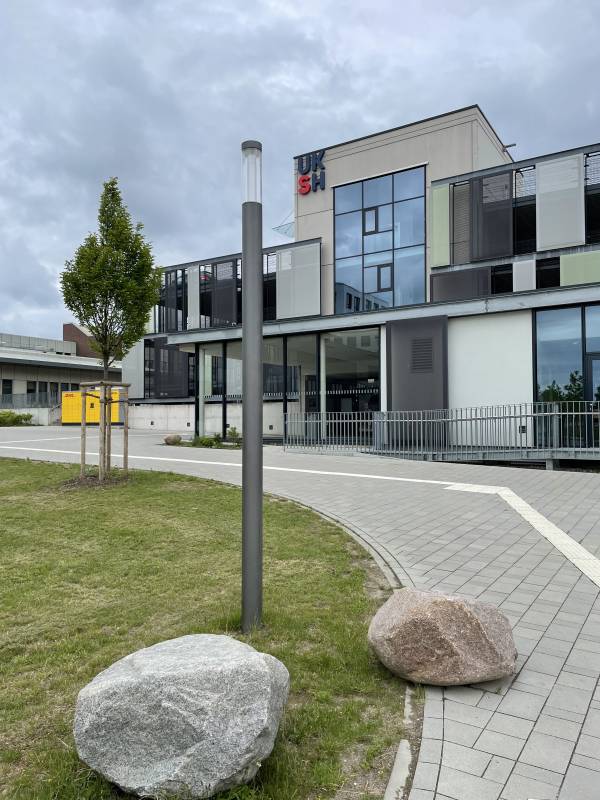

Light column 360 degrees symmetrical

type ..0897

1.412,001.661,20

Clear
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be supplied for DALI control.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Luminaire can be supplied with an insect-friendly Albert-Amber-LED.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
28 W
Rated luminous flux acc. IEC 62722-2-1
3000 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Documents and files
Assembly instruction

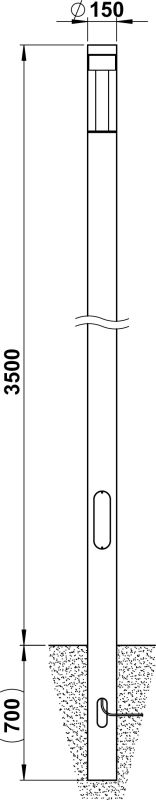

Dimensioned drawing
Light distribution curve
Offertext
For: 620897
Offertext
For: 660897
Full catalog 21 / 22
Spare parts
10260400 - G-400, acrylic,150 x 3 mm, 395 mm show

Additional information

Weight N/A
Mounting Type

Post top

Control gear included

Yes

With light source

Yes

Suitable for number of lamps

1

Material housing

Aluminium

Surface protection

Lacquered

Colour housing

Anthracite, Black

Material cover

Plastic, transparent

Voltage type

AC/DC

Type of control gear

LED operating device current-controlled

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Dimming 0-10 V

Yes

Dimming DALI

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

No, Yes

Lamp type

LED exchangeable

Nominal voltage

230 V

Height/depth

3500 mm

Number of poles

3

Conductor cross section

2.5 mm²

Energy efficiency class of the provided exchangeable built-in lamp

A+

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

A+

Degree of protection (IP)

IP54

Protection class

I

Diameter

150 mm

Type of wiring

Suitable for through wiring

Light distributor

Refractor lens

Cable length

0 m

Suitable for lamp power

28 W

Max. system power

28 W

Rated luminous flux acc. IEC 62722-2-1

3000 lm

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

Power factor

0.9

Connection type

Screwed terminal

Rated life time L80/B50 at 25 °C

50000 h

Shape

Eckig

Light type

Standleuchte

Height

> 1700 mm
